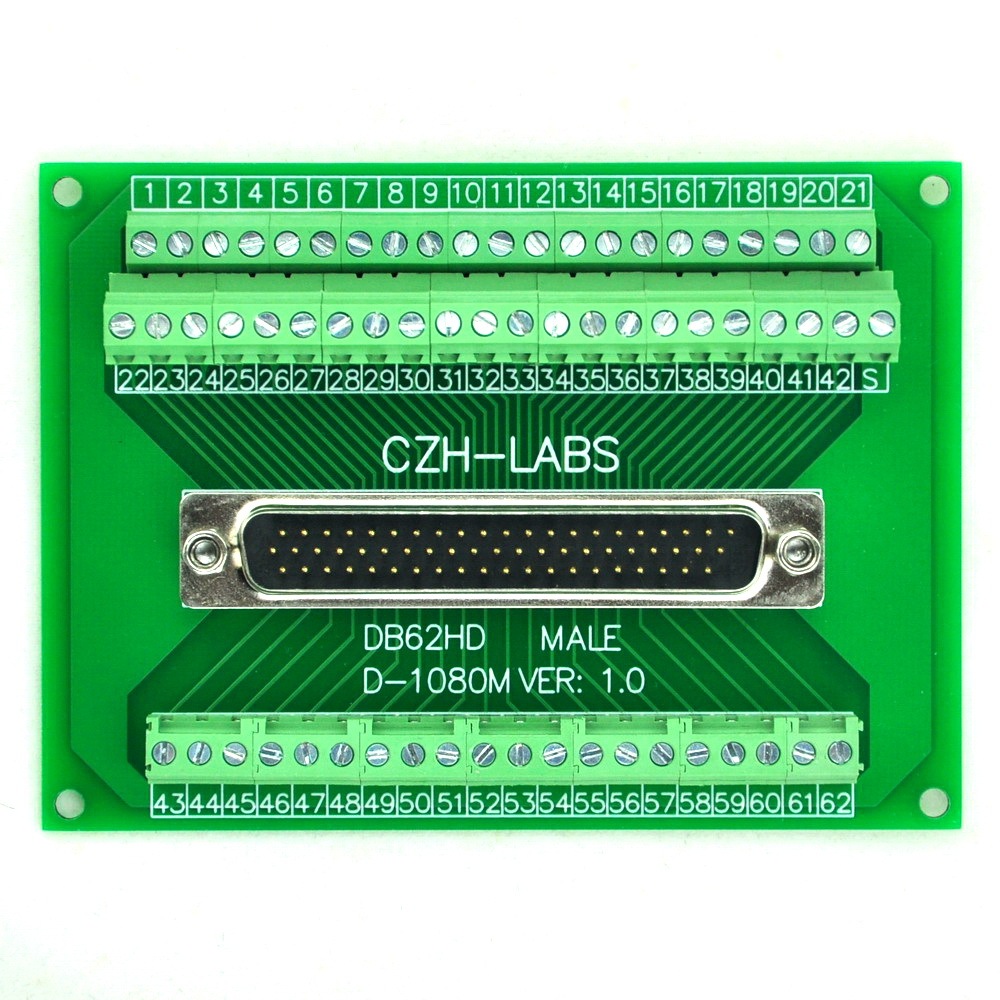

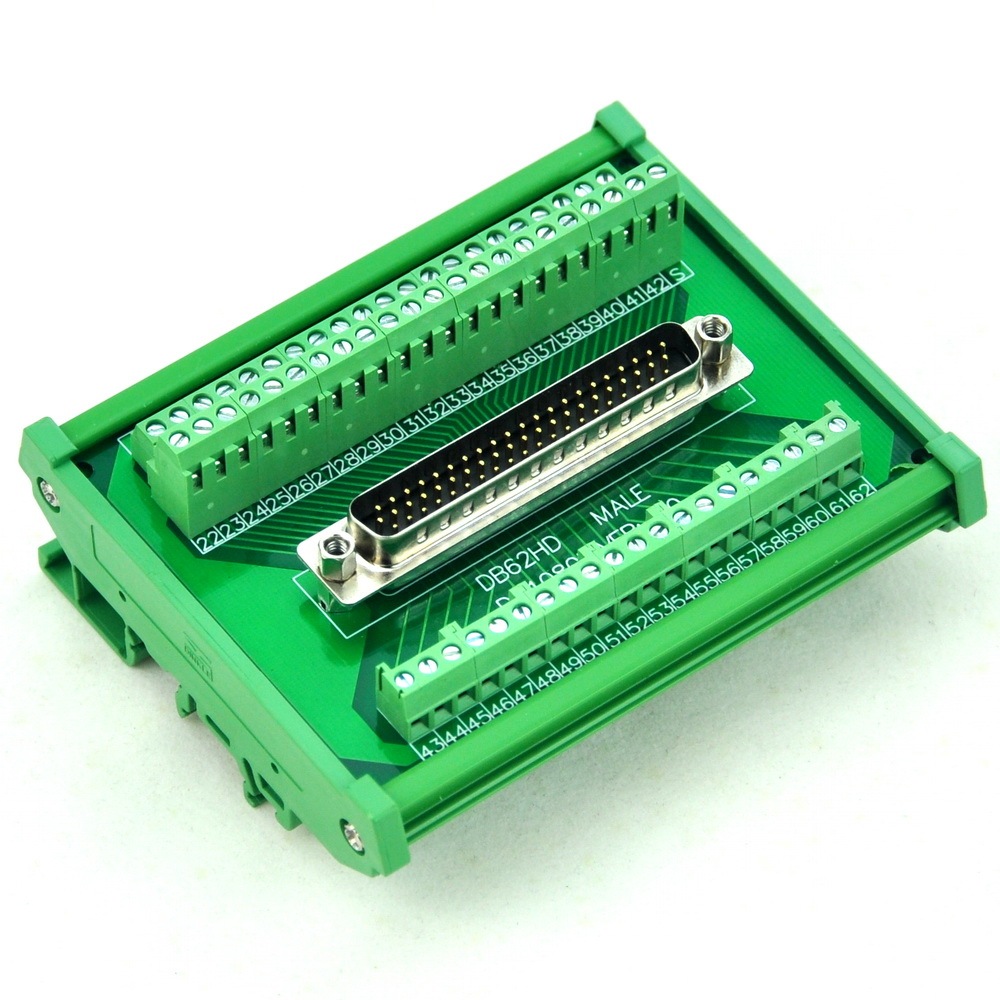

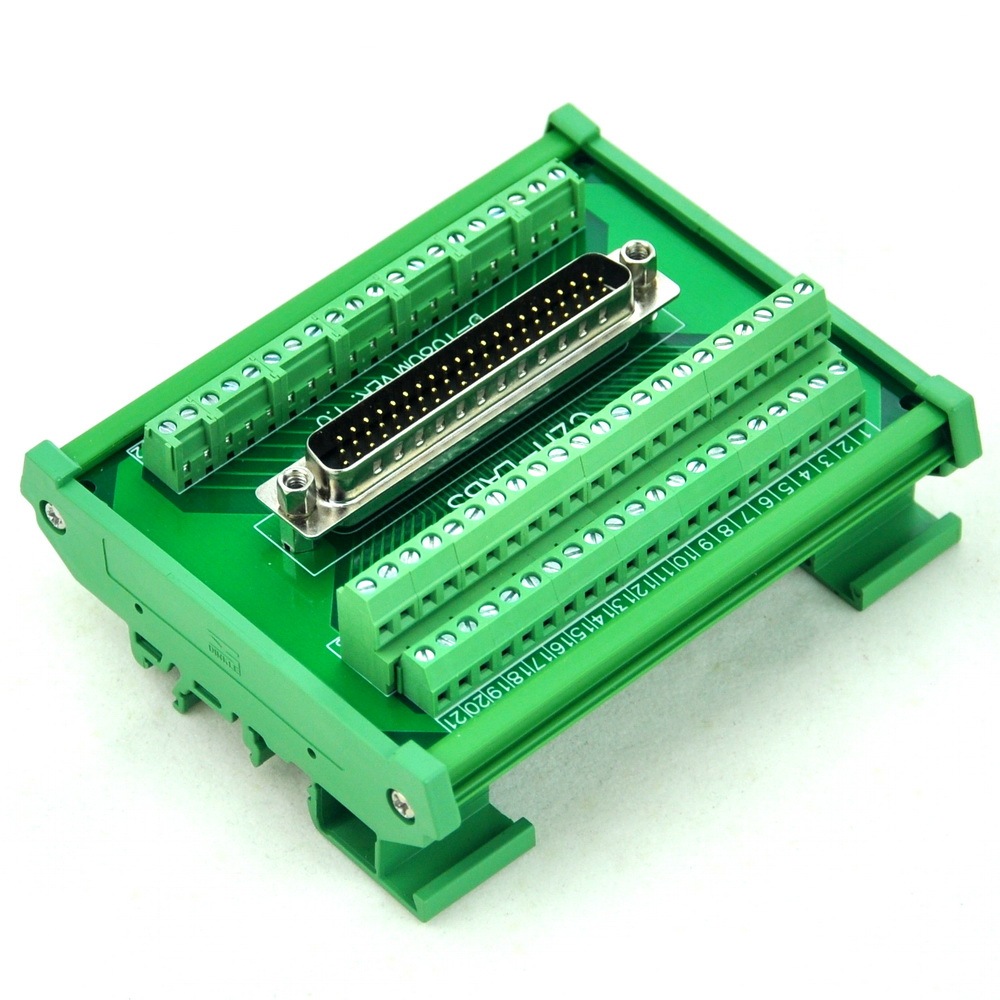

CZH-LABS DIN Rail Mount D-SUB DB62HD Male Header Interface Module, DSUB Breakout Board.

SKU: D-1080MT
$30.99 $30.99
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $30.99 = $30.99
save $0.00
Add to Favorites
  • CZH-LABS DIN Rail Mount D-SUB DB62HD Male Header Interface Module, DSUB Breakout Board.
  • CZH-LABS DIN Rail Mount D-SUB DB62HD Male Header Interface Module, DSUB Breakout Board.
  • CZH-LABS DIN Rail Mount D-SUB DB62HD Male Header Interface Module, DSUB Breakout Board.
  • CZH-LABS DIN Rail Mount D-SUB DB62HD Male Header Interface Module, DSUB Breakout Board.
  • CZH-LABS DIN Rail Mount D-SUB DB62HD Male Header Interface Module, DSUB Breakout Board.
  • CZH-LABS DIN Rail Mount D-SUB DB62HD Male Header Interface Module, DSUB Breakout Board.
  • CZH-LABS DIN Rail Mount D-SUB DB62HD Male Header Interface Module, DSUB Breakout Board.
  • CZH-LABS DIN Rail Mount D-SUB DB62HD Male Header Interface Module, DSUB Breakout Board.
  • CZH-LABS DIN Rail Mount D-SUB DB62HD Male Header Interface Module, DSUB Breakout Board.
  • CZH-LABS DIN Rail Mount D-SUB DB62HD Male Header Interface Module, DSUB Breakout Board.
  • CZH-LABS DIN Rail Mount D-SUB DB62HD Male Header Interface Module, DSUB Breakout Board.
  • CZH-LABS DIN Rail Mount D-SUB DB62HD Male Header Interface Module, DSUB Breakout Board.
  • CZH-LABS DIN Rail Mount D-SUB DB62HD Male Header Interface Module, DSUB Breakout Board.
  • CZH-LABS DIN Rail Mount D-SUB DB62HD Male Header Interface Module, DSUB Breakout Board.
1/1
  • CZH-LABS DIN Rail Mount D-SUB DB62HD Male Header Interface Module, DSUB Breakout Board.
  • CZH-LABS DIN Rail Mount D-SUB DB62HD Male Header Interface Module, DSUB Breakout Board.
  • CZH-LABS DIN Rail Mount D-SUB DB62HD Male Header Interface Module, DSUB Breakout Board.
  • CZH-LABS DIN Rail Mount D-SUB DB62HD Male Header Interface Module, DSUB Breakout Board.
  • CZH-LABS DIN Rail Mount D-SUB DB62HD Male Header Interface Module, DSUB Breakout Board.
  • CZH-LABS DIN Rail Mount D-SUB DB62HD Male Header Interface Module, DSUB Breakout Board.
  • CZH-LABS DIN Rail Mount D-SUB DB62HD Male Header Interface Module, DSUB Breakout Board.
  • Description

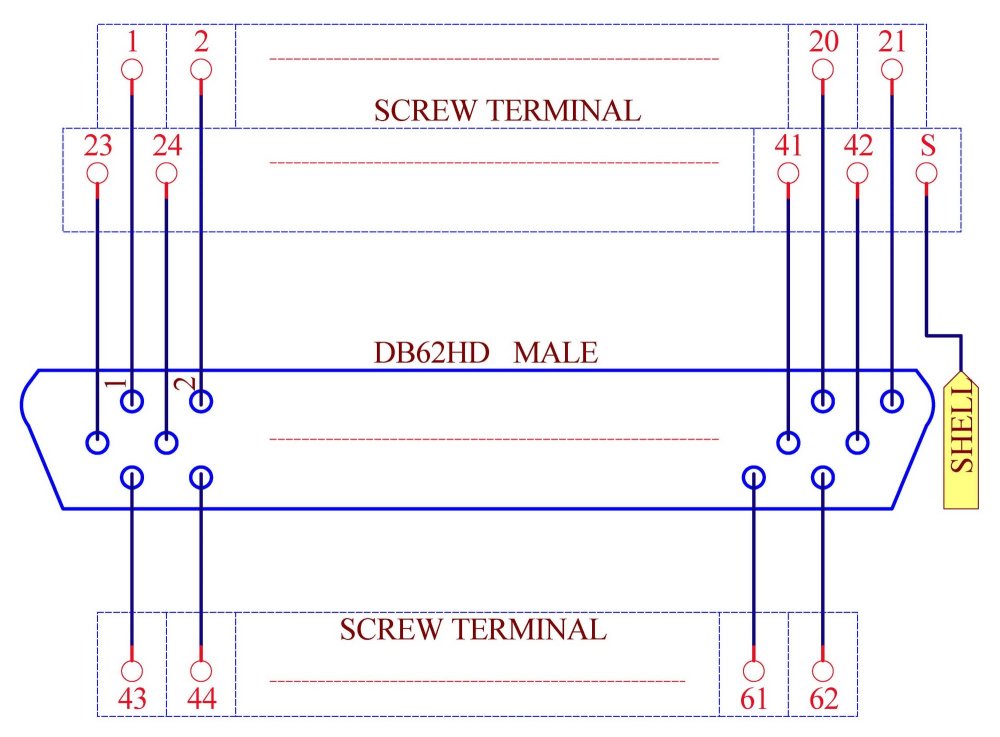

Standard DB62HD Male header connector.
Pitch 3.81mm/0.15" miniaturization screw terminal block.

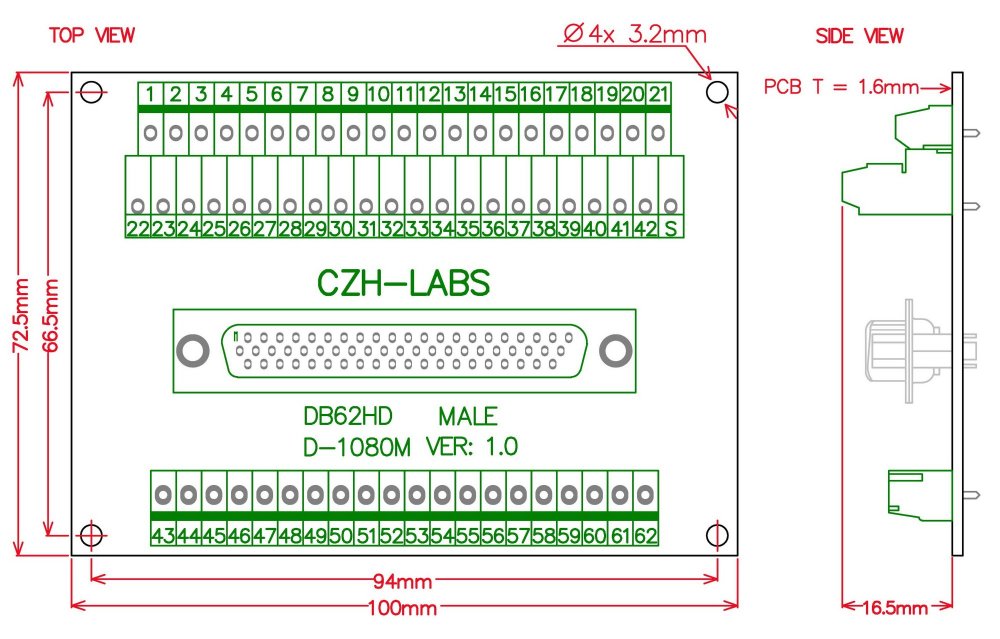

FR-4 fiber glass PCB, dual copper layers.

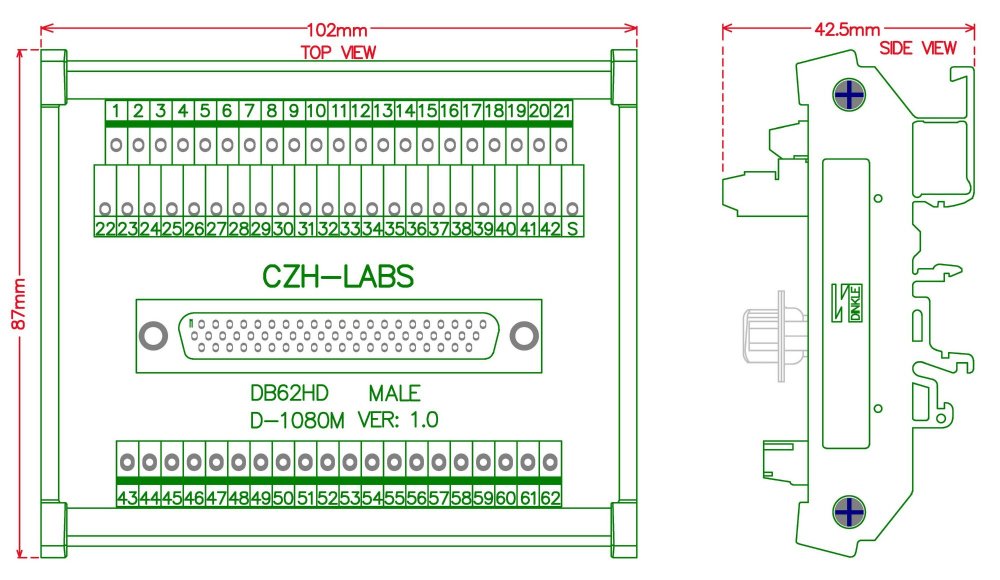

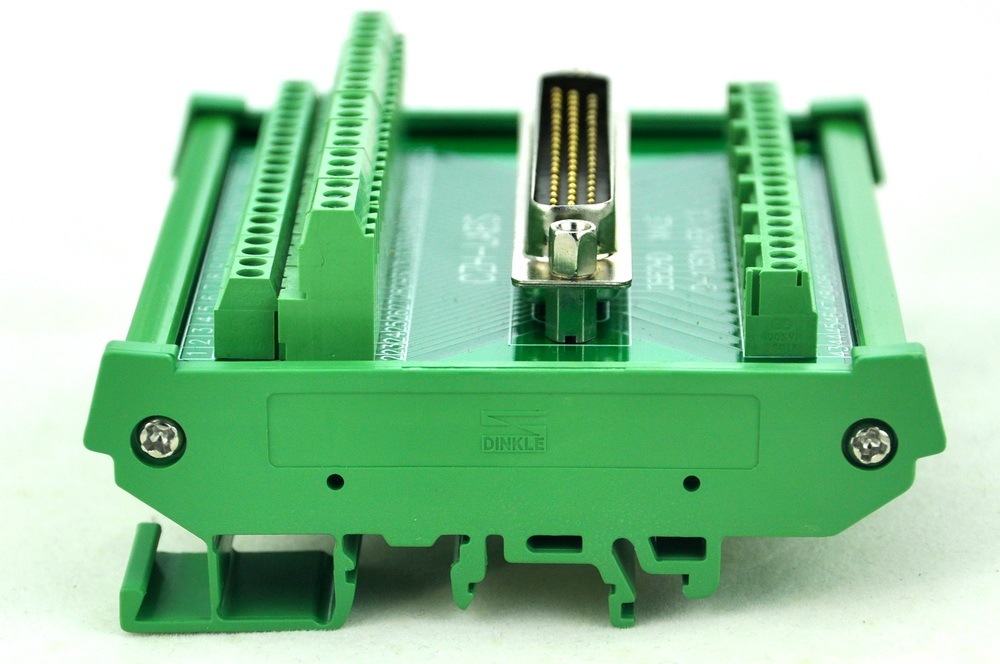

High quality fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for PCB screw mount use.

Specification:
Rated voltage: 60V.
Rated current: 1A / per pin.
Operating Temperature: -20ºC to 50ºC

Terminal block specifications:
Wire range - 26-16AWG.
Strip length - 5mm.
Screws - M2,steel,Cr3+ Zn plated.
Torque - 0.2Nm (1.7Lb-In.).
Pin header and Cage - Brass.
