CZH-LABS DIN Rail Mount 8 Channel Sensor Signal Screw Terminal Distribution Module.

SKU: D-1130T
$25.00 $25.00
CZH-LABS DIN Rail Mount 8 Channel Sensor Signal Screw Terminal Distribution Module.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $25 = $25
save $0.00
Add to Favorites
  • CZH-LABS DIN Rail Mount 8 Channel Sensor Signal Screw Terminal Distribution Module.
  • CZH-LABS DIN Rail Mount 8 Channel Sensor Signal Screw Terminal Distribution Module.
  • CZH-LABS DIN Rail Mount 8 Channel Sensor Signal Screw Terminal Distribution Module.
  • CZH-LABS DIN Rail Mount 8 Channel Sensor Signal Screw Terminal Distribution Module.
  • CZH-LABS DIN Rail Mount 8 Channel Sensor Signal Screw Terminal Distribution Module.
  • CZH-LABS DIN Rail Mount 8 Channel Sensor Signal Screw Terminal Distribution Module.
  • CZH-LABS DIN Rail Mount 8 Channel Sensor Signal Screw Terminal Distribution Module.
  • CZH-LABS DIN Rail Mount 8 Channel Sensor Signal Screw Terminal Distribution Module.
  • CZH-LABS DIN Rail Mount 8 Channel Sensor Signal Screw Terminal Distribution Module.
  • CZH-LABS DIN Rail Mount 8 Channel Sensor Signal Screw Terminal Distribution Module.
  • CZH-LABS DIN Rail Mount 8 Channel Sensor Signal Screw Terminal Distribution Module.
  • CZH-LABS DIN Rail Mount 8 Channel Sensor Signal Screw Terminal Distribution Module.
  • CZH-LABS DIN Rail Mount 8 Channel Sensor Signal Screw Terminal Distribution Module.
  • CZH-LABS DIN Rail Mount 8 Channel Sensor Signal Screw Terminal Distribution Module.
  • CZH-LABS DIN Rail Mount 8 Channel Sensor Signal Screw Terminal Distribution Module.
  • CZH-LABS DIN Rail Mount 8 Channel Sensor Signal Screw Terminal Distribution Module.
1/1
  • CZH-LABS DIN Rail Mount 8 Channel Sensor Signal Screw Terminal Distribution Module.
  • CZH-LABS DIN Rail Mount 8 Channel Sensor Signal Screw Terminal Distribution Module.
  • CZH-LABS DIN Rail Mount 8 Channel Sensor Signal Screw Terminal Distribution Module.
  • CZH-LABS DIN Rail Mount 8 Channel Sensor Signal Screw Terminal Distribution Module.
  • CZH-LABS DIN Rail Mount 8 Channel Sensor Signal Screw Terminal Distribution Module.
  • CZH-LABS DIN Rail Mount 8 Channel Sensor Signal Screw Terminal Distribution Module.
  • CZH-LABS DIN Rail Mount 8 Channel Sensor Signal Screw Terminal Distribution Module.
  • CZH-LABS DIN Rail Mount 8 Channel Sensor Signal Screw Terminal Distribution Module.
  • Description

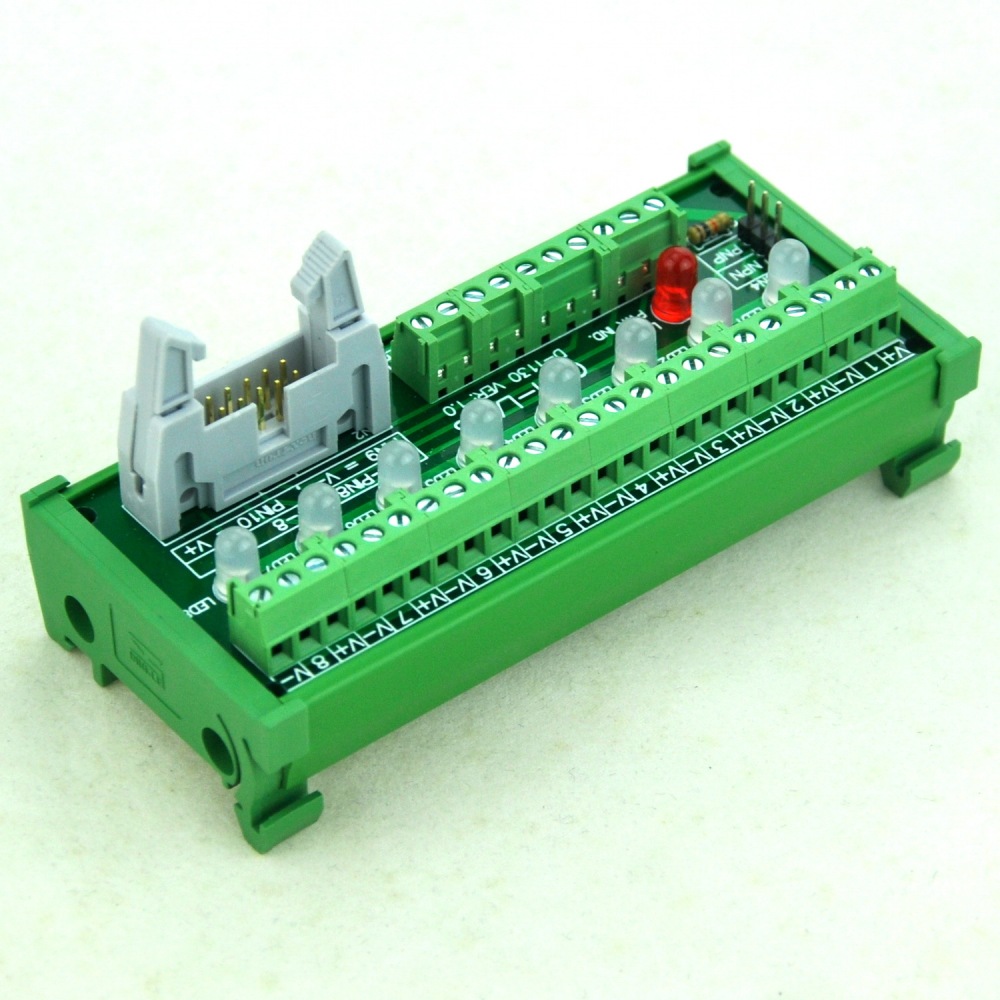

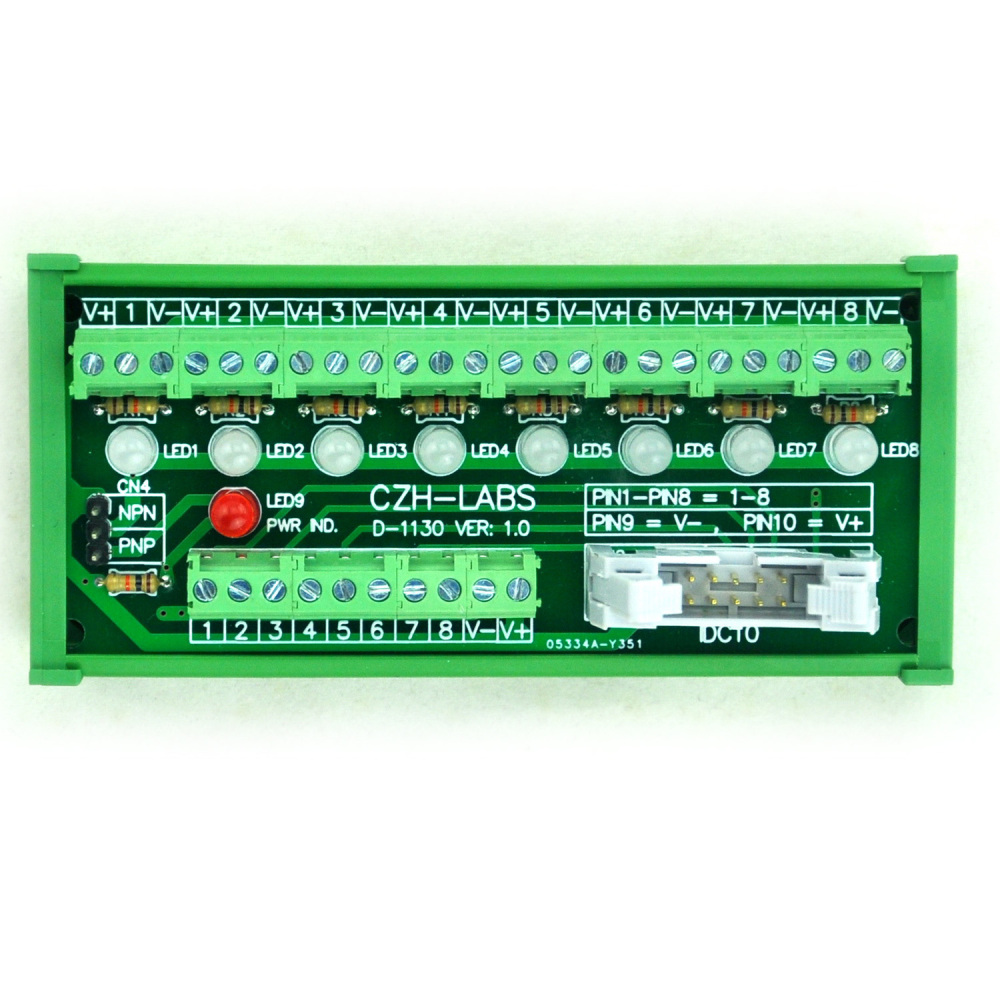

DIN Rail Mount 8 Channel Sensor Signal Screw Terminal Distribution Module.

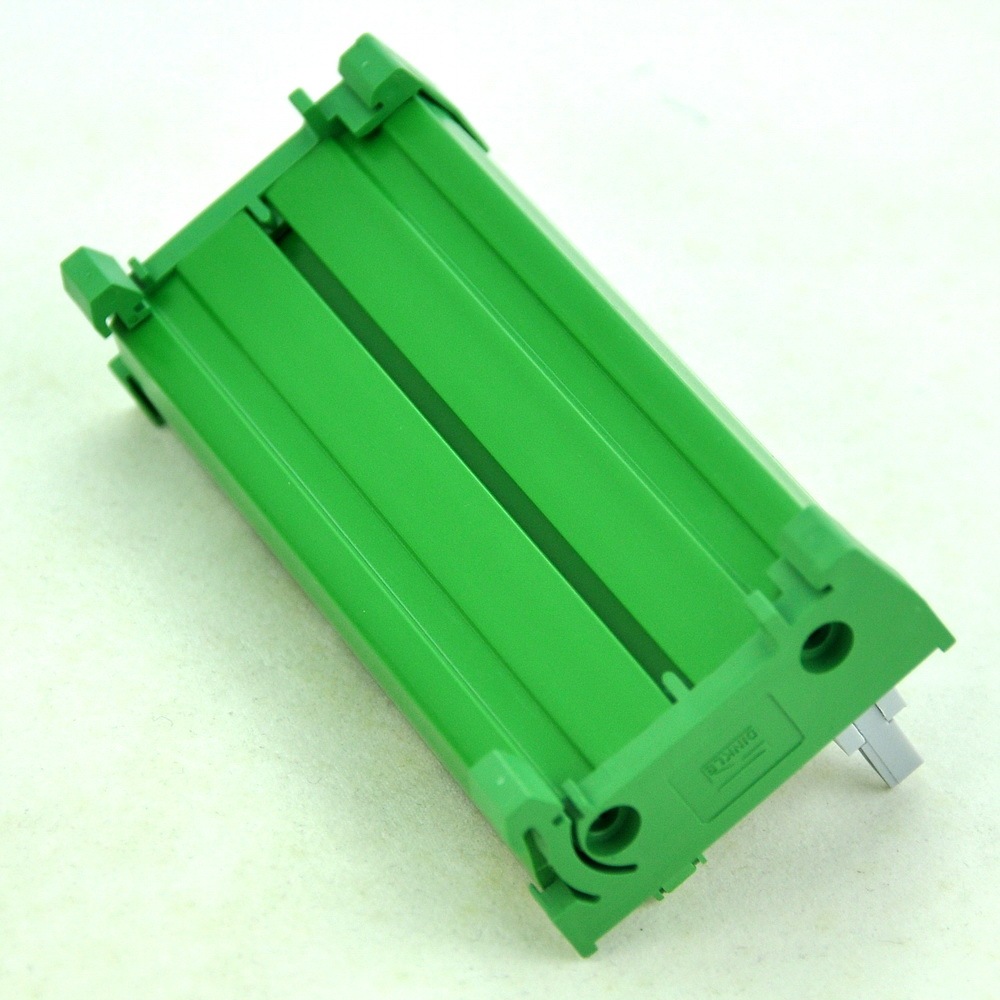

High quality Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm rail.
Terminal block, pitch 3.81mm/0.15", wire range 26AWG ~ 16AWG / 1.0mm2,  strip length 5mm. screws - M2.
IDC-10pin flat ribbon cable connector, pitch 2.54mm/0.1"
With operating power indicator.
With signal indicator, support controller output port type NPN/sink and PNP/source.
