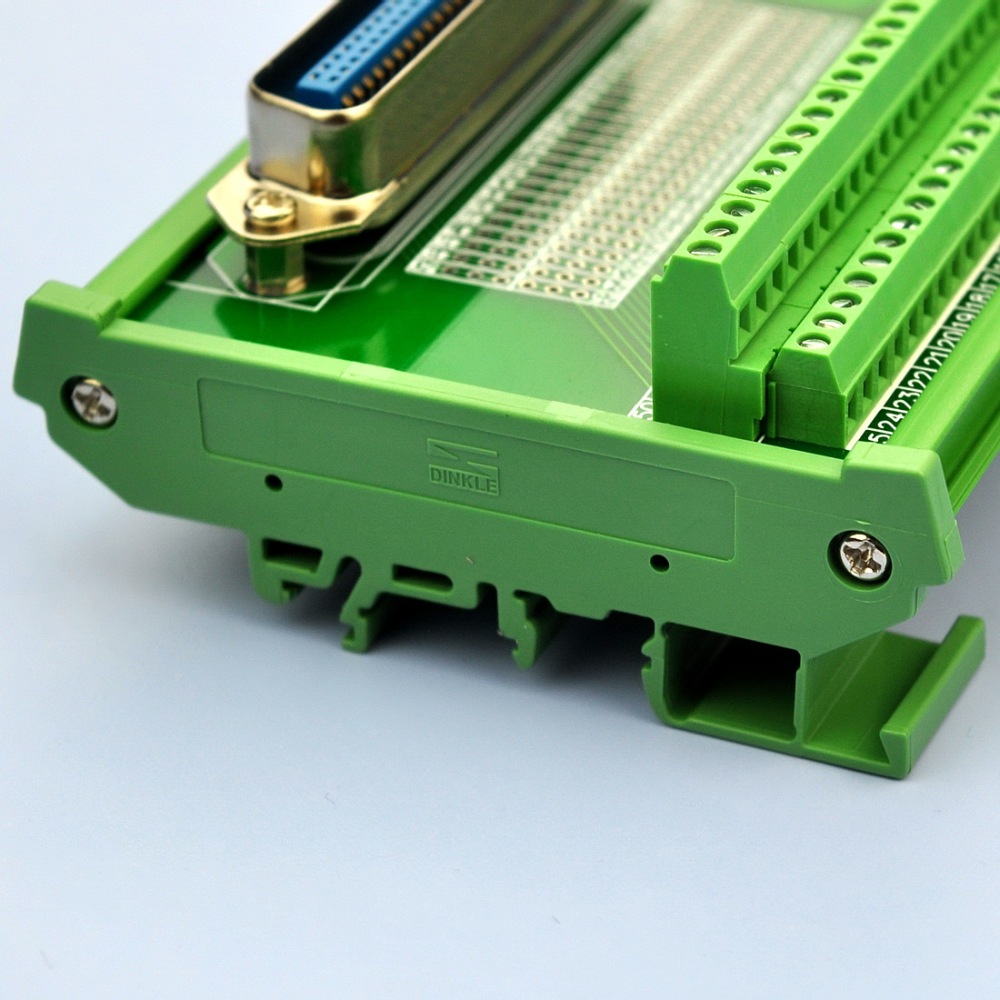

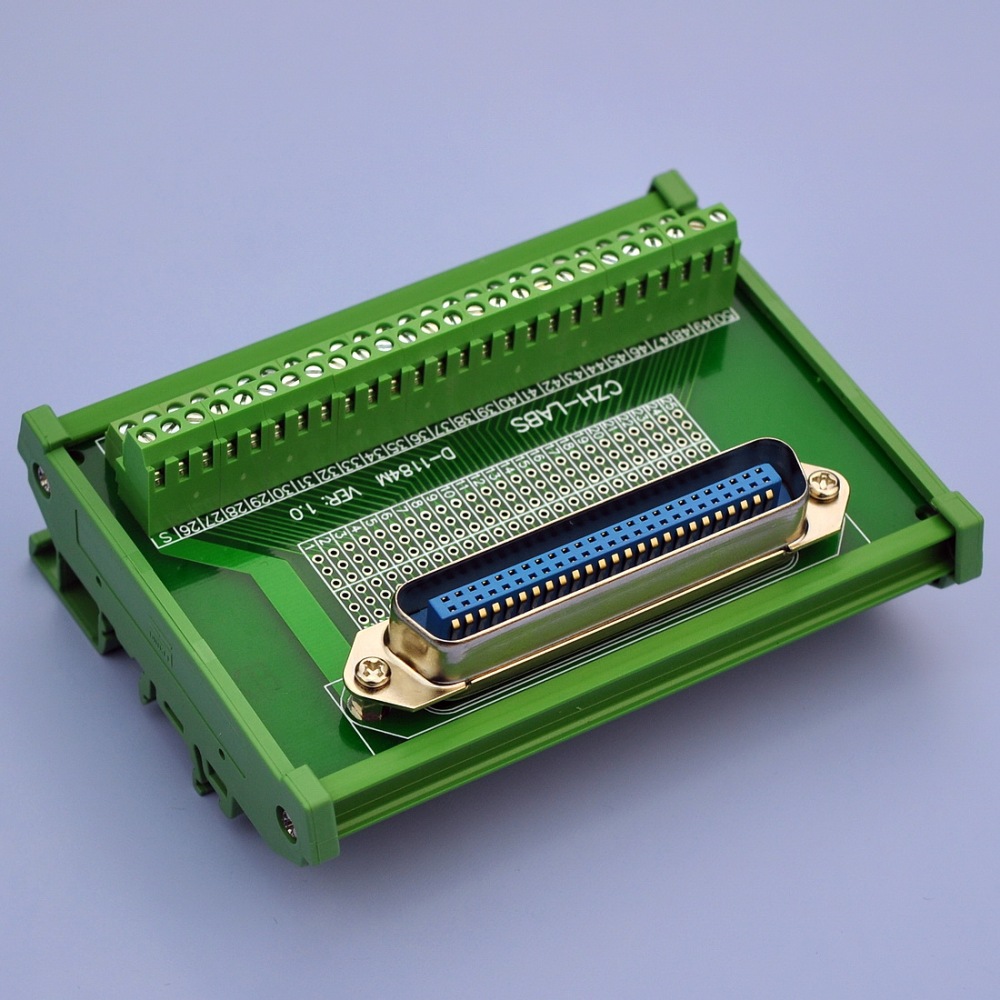

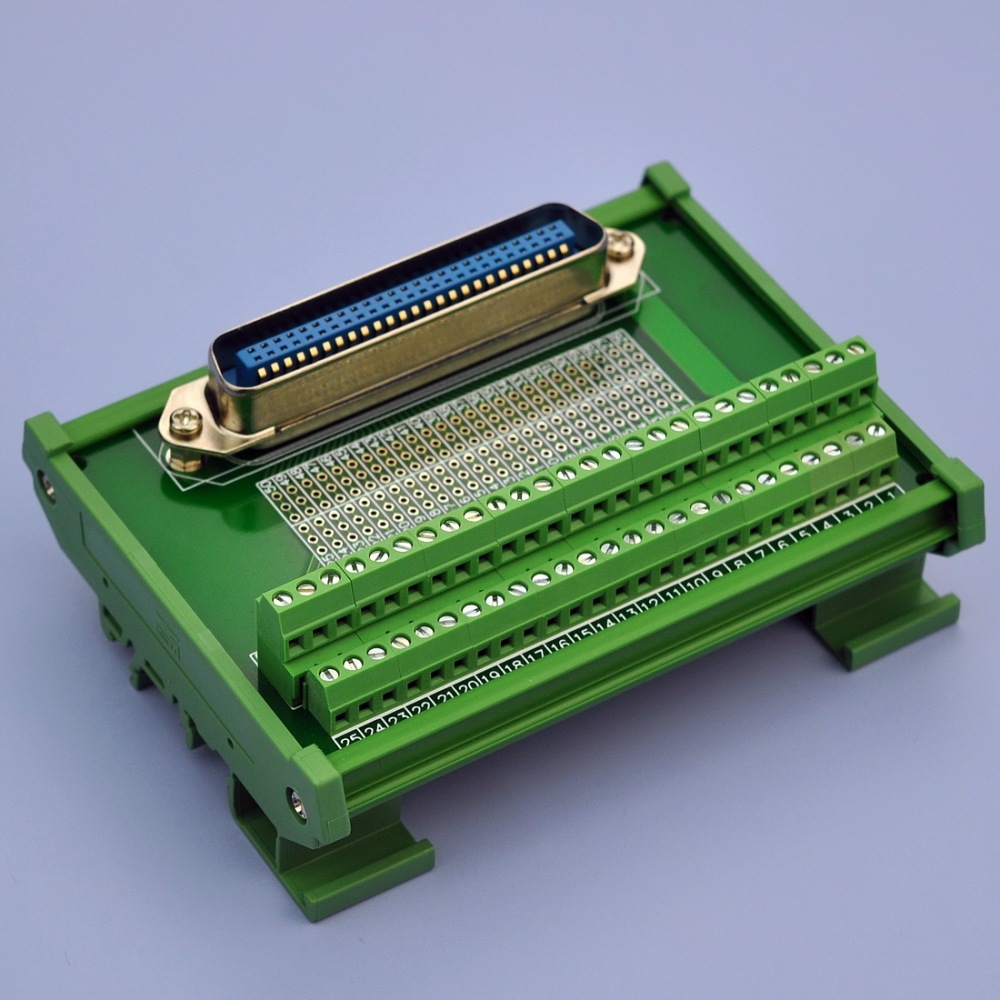

CZH-LABS DIN Rail Mount 50-Pin 0.085" Centronics Male Ribbon Connector Interface Module, Screw Terminal Block Breakout Board

SKU: D-1184MVT
$47.99 $47.99
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $47.99 = $47.99
save $0.00
Add to Favorites
  • CZH-LABS DIN Rail Mount 50-Pin 0.085" Centronics Male Ribbon Connector Interface Module, Screw Terminal Block Breakout Board
  • CZH-LABS DIN Rail Mount 50-Pin 0.085" Centronics Male Ribbon Connector Interface Module, Screw Terminal Block Breakout Board
  • CZH-LABS DIN Rail Mount 50-Pin 0.085" Centronics Male Ribbon Connector Interface Module, Screw Terminal Block Breakout Board
  • CZH-LABS DIN Rail Mount 50-Pin 0.085" Centronics Male Ribbon Connector Interface Module, Screw Terminal Block Breakout Board
  • CZH-LABS DIN Rail Mount 50-Pin 0.085" Centronics Male Ribbon Connector Interface Module, Screw Terminal Block Breakout Board
  • CZH-LABS DIN Rail Mount 50-Pin 0.085" Centronics Male Ribbon Connector Interface Module, Screw Terminal Block Breakout Board
  • CZH-LABS DIN Rail Mount 50-Pin 0.085" Centronics Male Ribbon Connector Interface Module, Screw Terminal Block Breakout Board
  • CZH-LABS DIN Rail Mount 50-Pin 0.085" Centronics Male Ribbon Connector Interface Module, Screw Terminal Block Breakout Board
  • CZH-LABS DIN Rail Mount 50-Pin 0.085" Centronics Male Ribbon Connector Interface Module, Screw Terminal Block Breakout Board
  • CZH-LABS DIN Rail Mount 50-Pin 0.085" Centronics Male Ribbon Connector Interface Module, Screw Terminal Block Breakout Board
  • CZH-LABS DIN Rail Mount 50-Pin 0.085" Centronics Male Ribbon Connector Interface Module, Screw Terminal Block Breakout Board
  • CZH-LABS DIN Rail Mount 50-Pin 0.085" Centronics Male Ribbon Connector Interface Module, Screw Terminal Block Breakout Board
  • CZH-LABS DIN Rail Mount 50-Pin 0.085" Centronics Male Ribbon Connector Interface Module, Screw Terminal Block Breakout Board
  • CZH-LABS DIN Rail Mount 50-Pin 0.085" Centronics Male Ribbon Connector Interface Module, Screw Terminal Block Breakout Board
  • CZH-LABS DIN Rail Mount 50-Pin 0.085" Centronics Male Ribbon Connector Interface Module, Screw Terminal Block Breakout Board
  • CZH-LABS DIN Rail Mount 50-Pin 0.085" Centronics Male Ribbon Connector Interface Module, Screw Terminal Block Breakout Board
1/1
  • CZH-LABS DIN Rail Mount 50-Pin 0.085" Centronics Male Ribbon Connector Interface Module, Screw Terminal Block Breakout Board
  • CZH-LABS DIN Rail Mount 50-Pin 0.085" Centronics Male Ribbon Connector Interface Module, Screw Terminal Block Breakout Board
  • CZH-LABS DIN Rail Mount 50-Pin 0.085" Centronics Male Ribbon Connector Interface Module, Screw Terminal Block Breakout Board
  • CZH-LABS DIN Rail Mount 50-Pin 0.085" Centronics Male Ribbon Connector Interface Module, Screw Terminal Block Breakout Board
  • CZH-LABS DIN Rail Mount 50-Pin 0.085" Centronics Male Ribbon Connector Interface Module, Screw Terminal Block Breakout Board
  • CZH-LABS DIN Rail Mount 50-Pin 0.085" Centronics Male Ribbon Connector Interface Module, Screw Terminal Block Breakout Board
  • CZH-LABS DIN Rail Mount 50-Pin 0.085" Centronics Male Ribbon Connector Interface Module, Screw Terminal Block Breakout Board
  • CZH-LABS DIN Rail Mount 50-Pin 0.085" Centronics Male Ribbon Connector Interface Module, Screw Terminal Block Breakout Board
  • Description

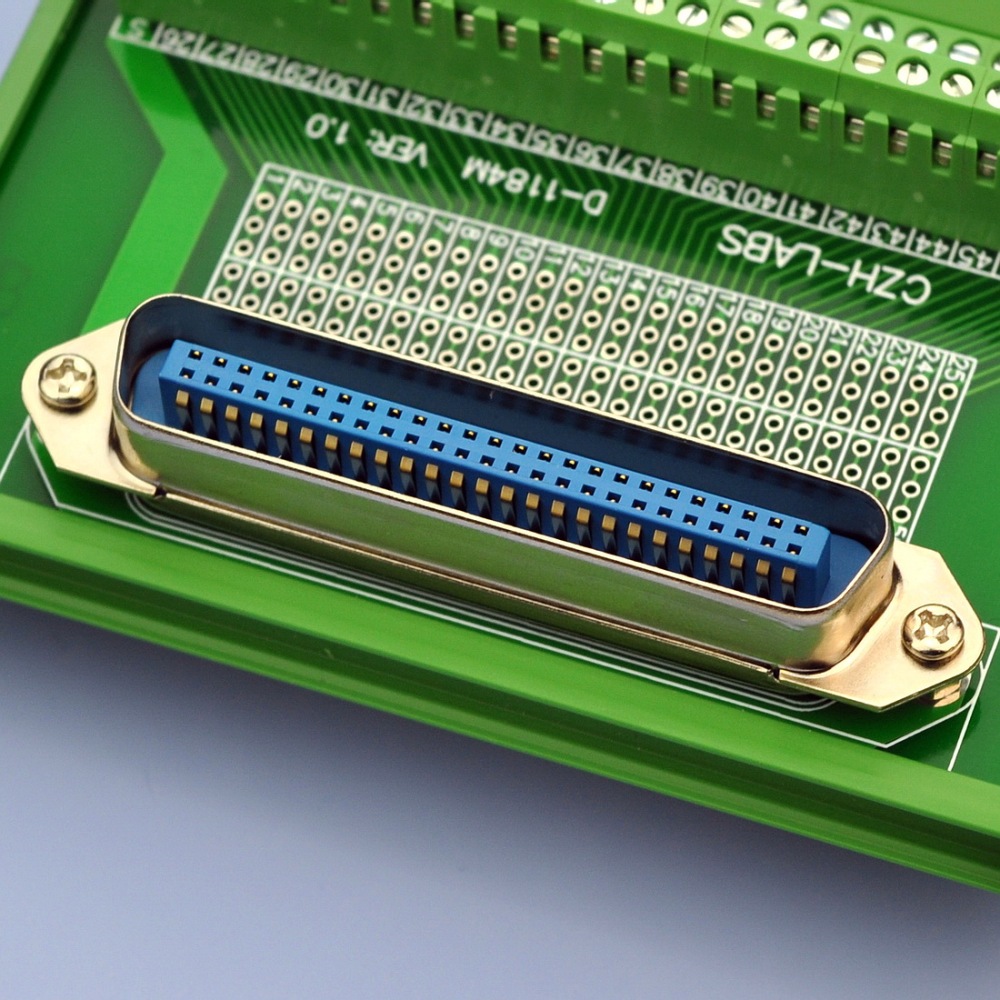

50-Pin Centronics Vertical Male Connector. 2 rows contacts, pitch 2.16mm / 0.085".

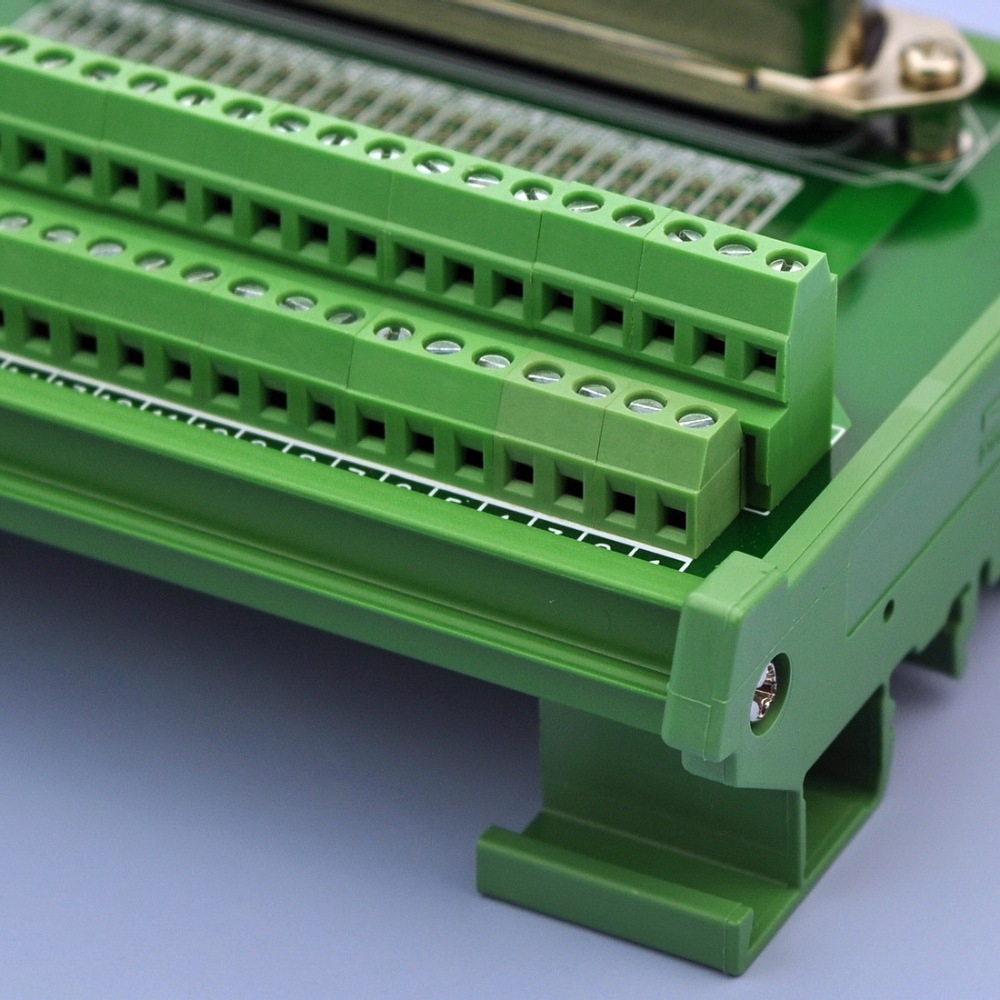

Pitch 3.81mm / 0.15" screw terminal block, wire range 26-16AWG, strip length 5mm / 0.2", Metric M2 slotted screw.

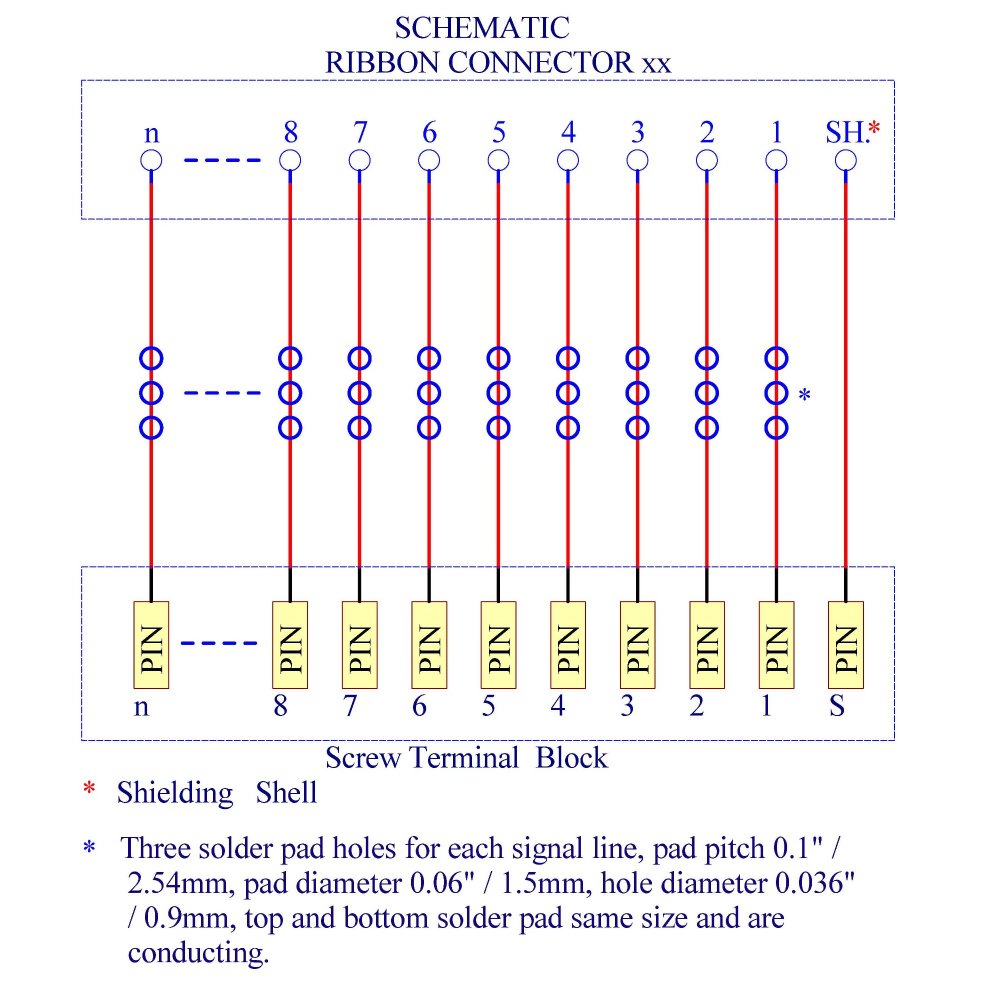

Solder connection holes 3 per line, supports addition of 2.54mm / 0.1" pin headers.

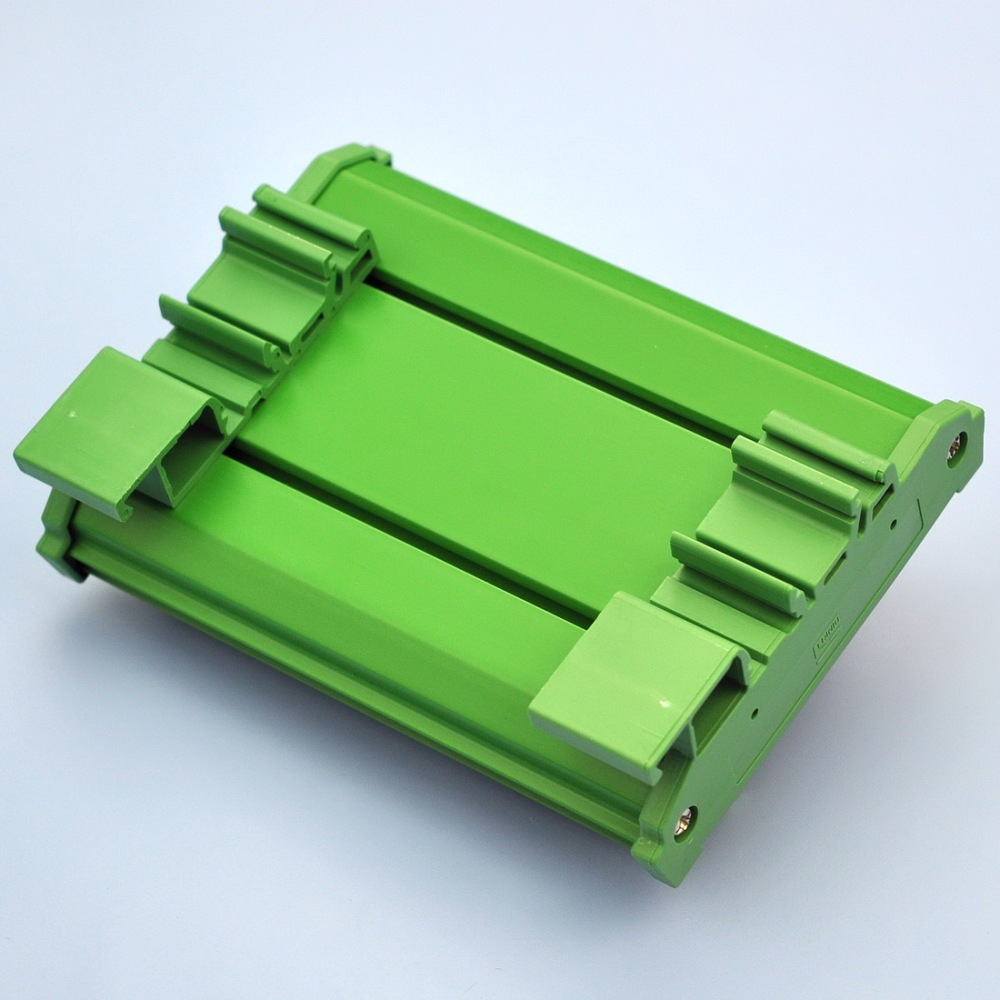

Taiwan fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use.
