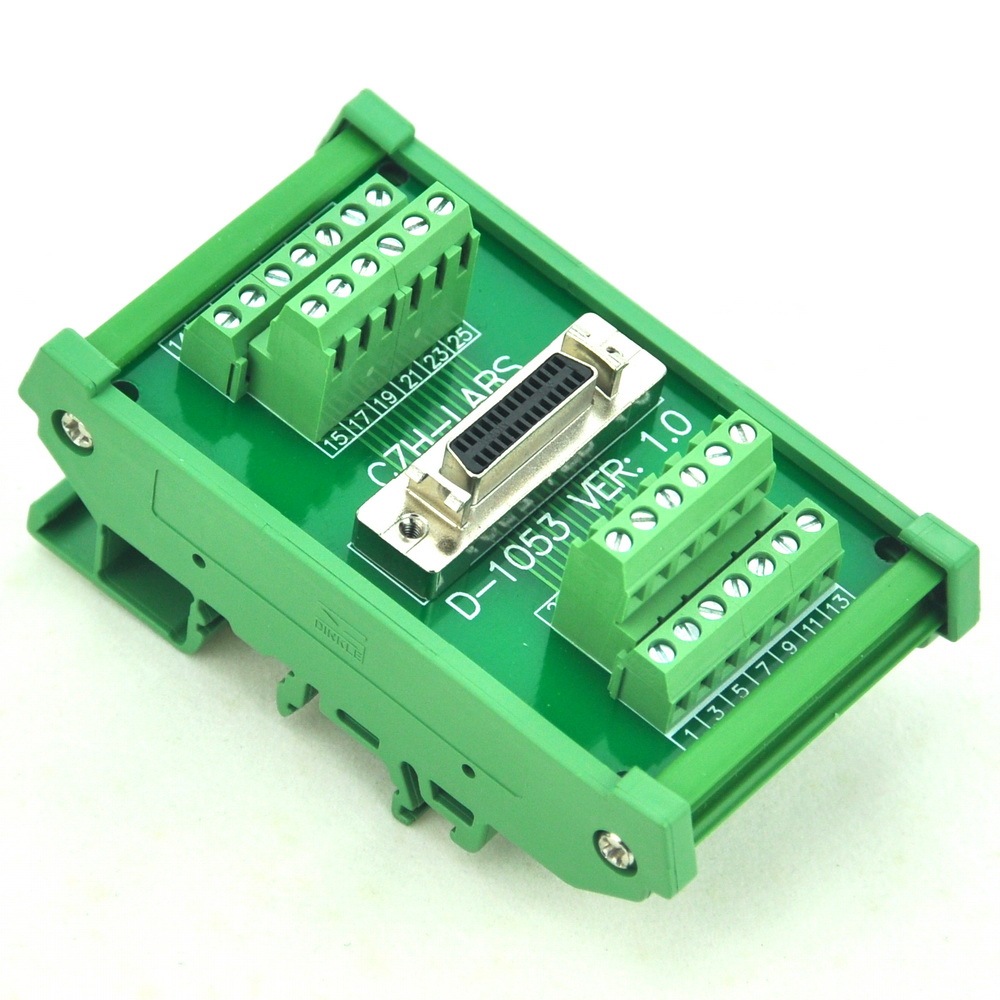

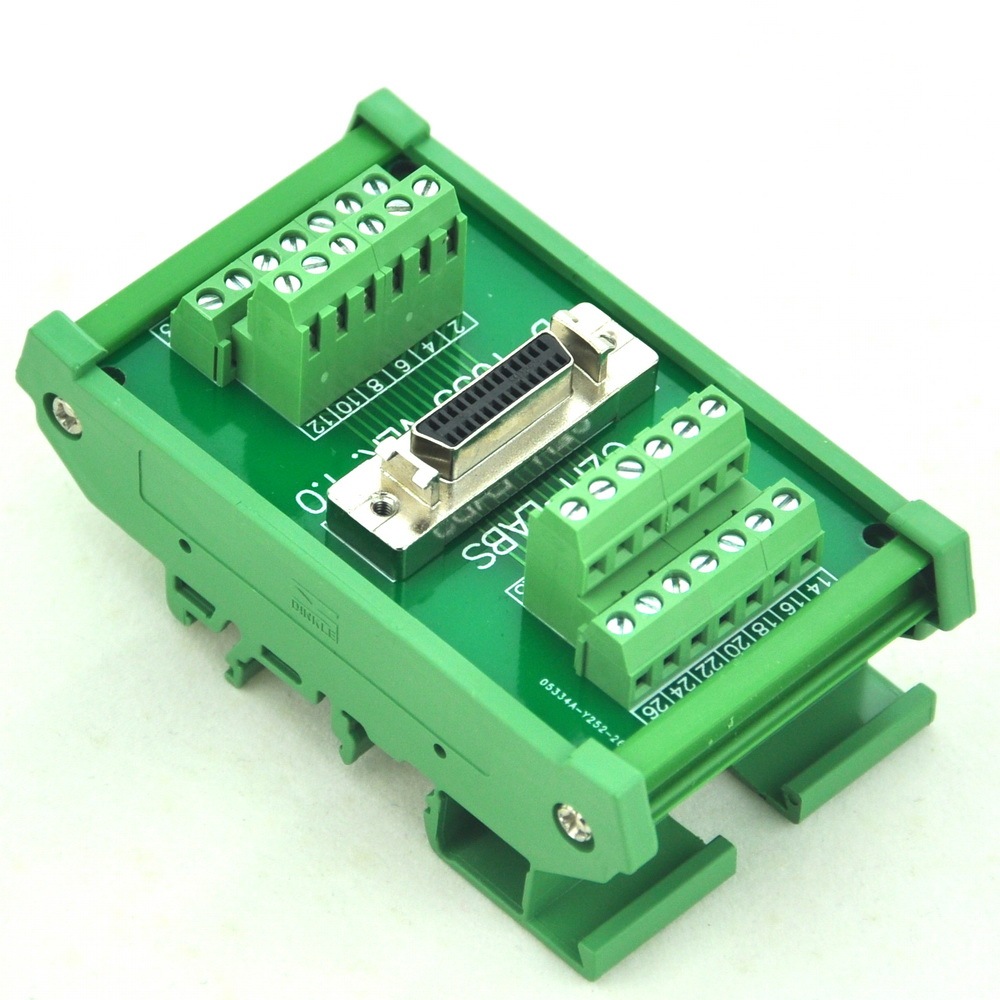

CZH-LABS DIN Rail Mount 26-pin Half-Pitch/0.05" D-SUB Female Interface Module, DSUB, SCSI.

SKU: D-1053DBT
$30.00 $30.00
CZH-LABS DIN Rail Mount 26-pin Half-Pitch/0.05" D-SUB Female Interface Module, DSUB, SCSI.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $30 = $30
save $0.00
Add to Favorites
  • CZH-LABS DIN Rail Mount 26-pin Half-Pitch/0.05" D-SUB Female Interface Module, DSUB, SCSI.
  • CZH-LABS DIN Rail Mount 26-pin Half-Pitch/0.05" D-SUB Female Interface Module, DSUB, SCSI.
  • CZH-LABS DIN Rail Mount 26-pin Half-Pitch/0.05" D-SUB Female Interface Module, DSUB, SCSI.
  • CZH-LABS DIN Rail Mount 26-pin Half-Pitch/0.05" D-SUB Female Interface Module, DSUB, SCSI.
  • CZH-LABS DIN Rail Mount 26-pin Half-Pitch/0.05" D-SUB Female Interface Module, DSUB, SCSI.
  • CZH-LABS DIN Rail Mount 26-pin Half-Pitch/0.05" D-SUB Female Interface Module, DSUB, SCSI.
  • CZH-LABS DIN Rail Mount 26-pin Half-Pitch/0.05" D-SUB Female Interface Module, DSUB, SCSI.
  • CZH-LABS DIN Rail Mount 26-pin Half-Pitch/0.05" D-SUB Female Interface Module, DSUB, SCSI.
  • CZH-LABS DIN Rail Mount 26-pin Half-Pitch/0.05" D-SUB Female Interface Module, DSUB, SCSI.
  • CZH-LABS DIN Rail Mount 26-pin Half-Pitch/0.05" D-SUB Female Interface Module, DSUB, SCSI.
  • CZH-LABS DIN Rail Mount 26-pin Half-Pitch/0.05" D-SUB Female Interface Module, DSUB, SCSI.
  • CZH-LABS DIN Rail Mount 26-pin Half-Pitch/0.05" D-SUB Female Interface Module, DSUB, SCSI.
  • CZH-LABS DIN Rail Mount 26-pin Half-Pitch/0.05" D-SUB Female Interface Module, DSUB, SCSI.
  • CZH-LABS DIN Rail Mount 26-pin Half-Pitch/0.05" D-SUB Female Interface Module, DSUB, SCSI.
  • CZH-LABS DIN Rail Mount 26-pin Half-Pitch/0.05" D-SUB Female Interface Module, DSUB, SCSI.
  • CZH-LABS DIN Rail Mount 26-pin Half-Pitch/0.05" D-SUB Female Interface Module, DSUB, SCSI.
1/1
  • CZH-LABS DIN Rail Mount 26-pin Half-Pitch/0.05" D-SUB Female Interface Module, DSUB, SCSI.
  • CZH-LABS DIN Rail Mount 26-pin Half-Pitch/0.05" D-SUB Female Interface Module, DSUB, SCSI.
  • CZH-LABS DIN Rail Mount 26-pin Half-Pitch/0.05" D-SUB Female Interface Module, DSUB, SCSI.
  • CZH-LABS DIN Rail Mount 26-pin Half-Pitch/0.05" D-SUB Female Interface Module, DSUB, SCSI.
  • CZH-LABS DIN Rail Mount 26-pin Half-Pitch/0.05" D-SUB Female Interface Module, DSUB, SCSI.
  • CZH-LABS DIN Rail Mount 26-pin Half-Pitch/0.05" D-SUB Female Interface Module, DSUB, SCSI.
  • CZH-LABS DIN Rail Mount 26-pin Half-Pitch/0.05" D-SUB Female Interface Module, DSUB, SCSI.
  • CZH-LABS DIN Rail Mount 26-pin Half-Pitch/0.05" D-SUB Female Interface Module, DSUB, SCSI.
  • Description
26-pin pitch 1.27mm/0.05" D-SUB female connector.
26-position pitch 3.81mm/0.15" screw terminal blocks.

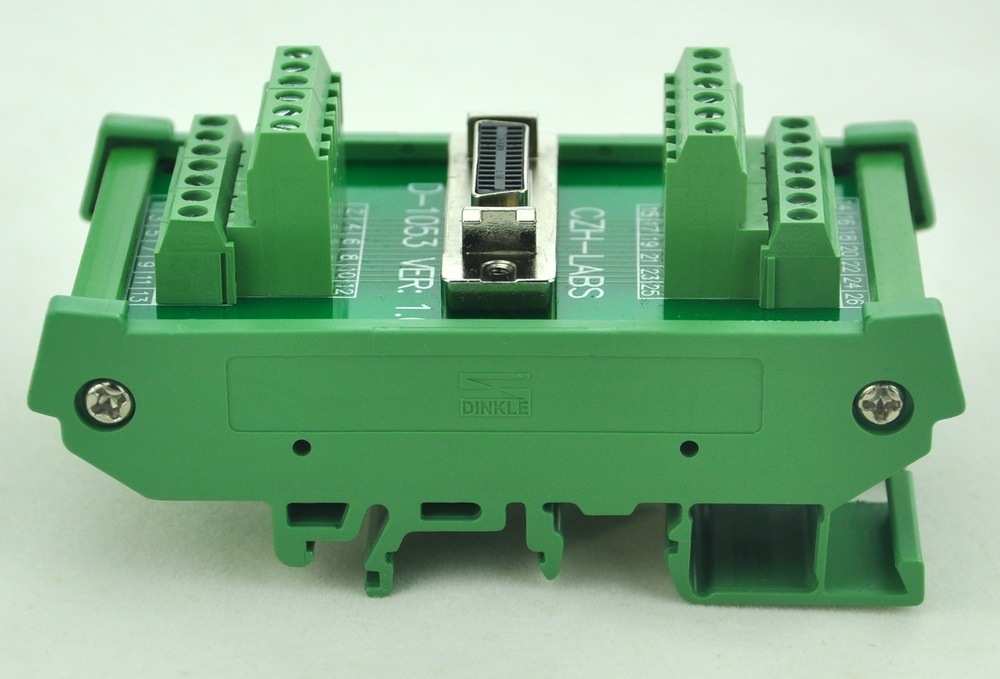

High quality DIN rail mount carrier, can support width 35mm /32mm / 15mm rail.
FR-4 fiber glass PCB, dual copper layers.
Rated voltage: 50V.
Rated current: 1A / per pin.
Operating Temperature: -20ºC to 50ºC

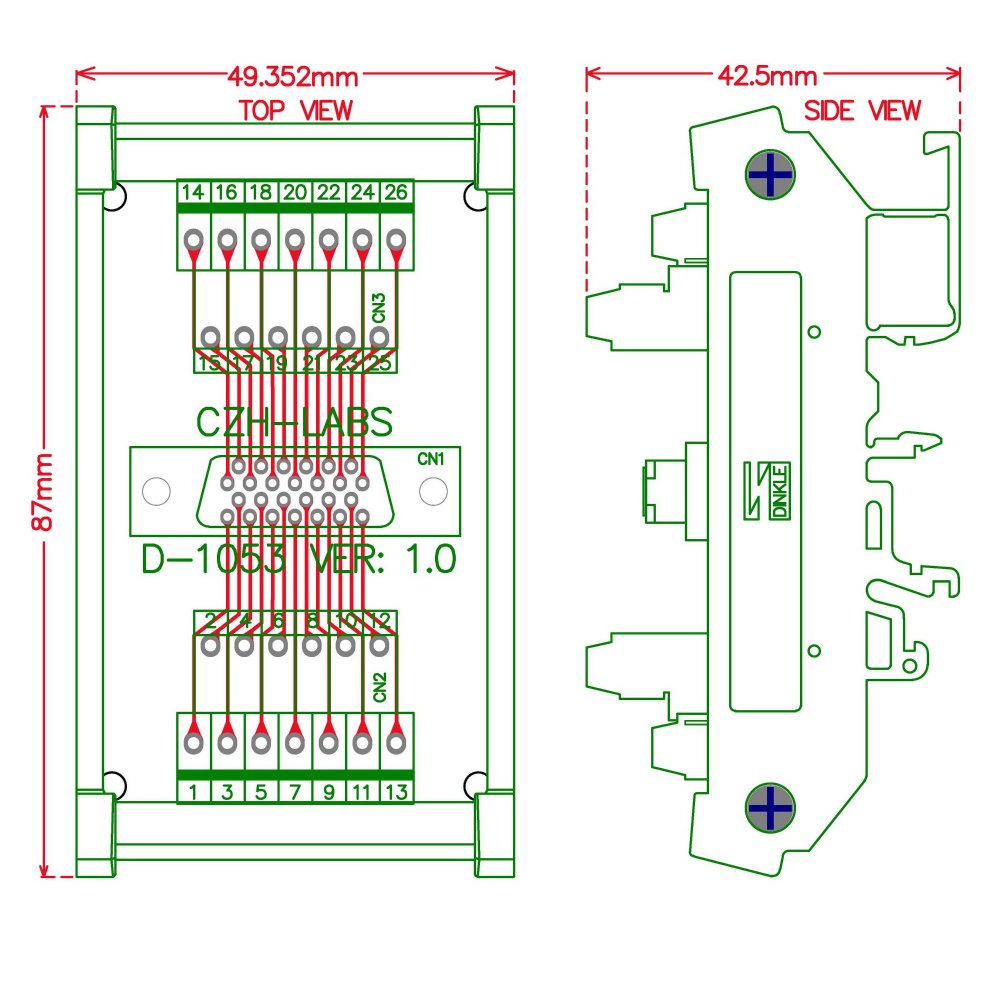

Dimensions: 83 x 50 x 43mm (W x L x H).
100% new, never used.

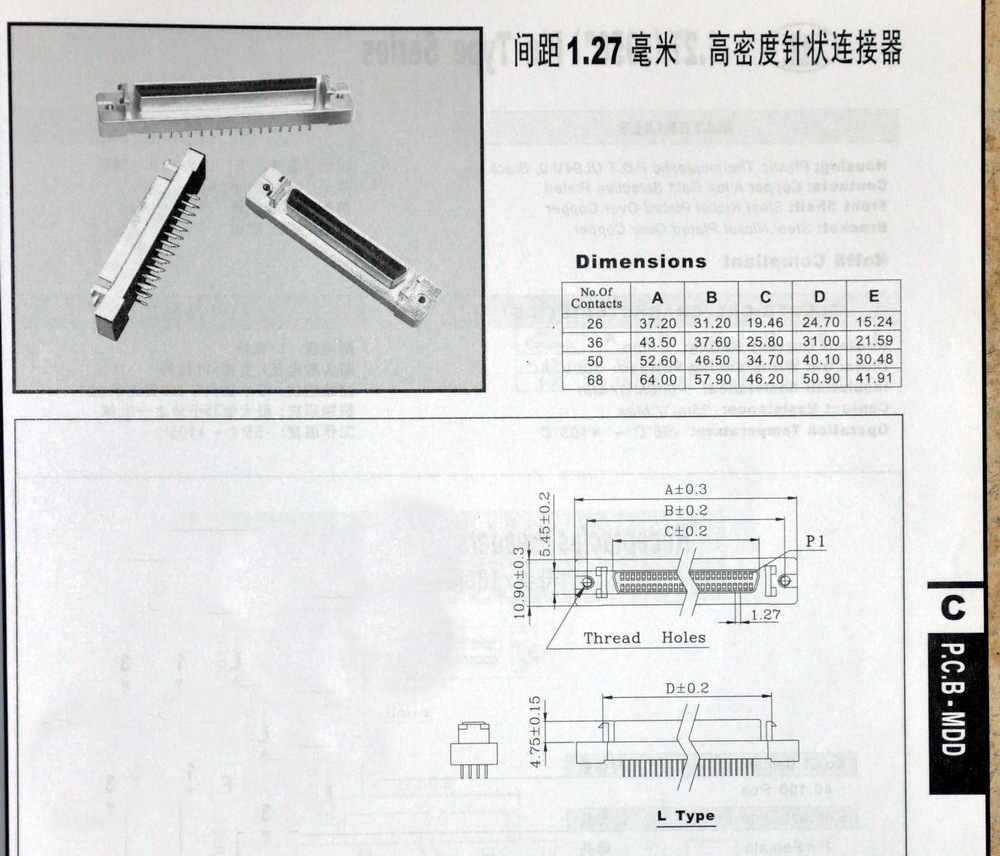

Receptacles connector specifications:

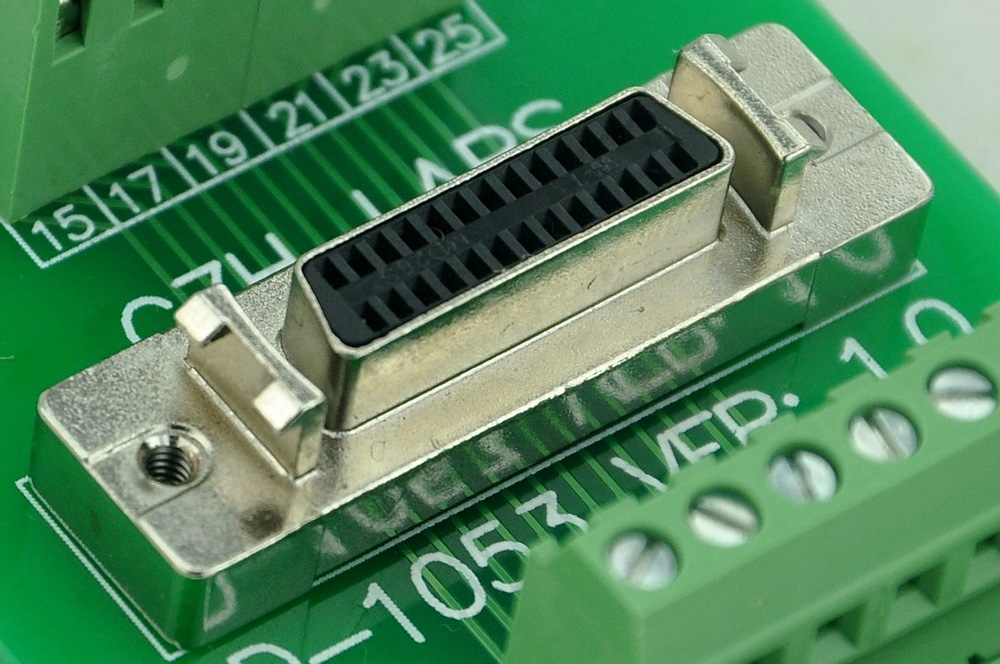

Half-pitch D-SUB female connector (0.050 series D-type connector).
Pin pitch: 1.27mm/0.05"
Row to row pitch: 2.54mm/0.1"

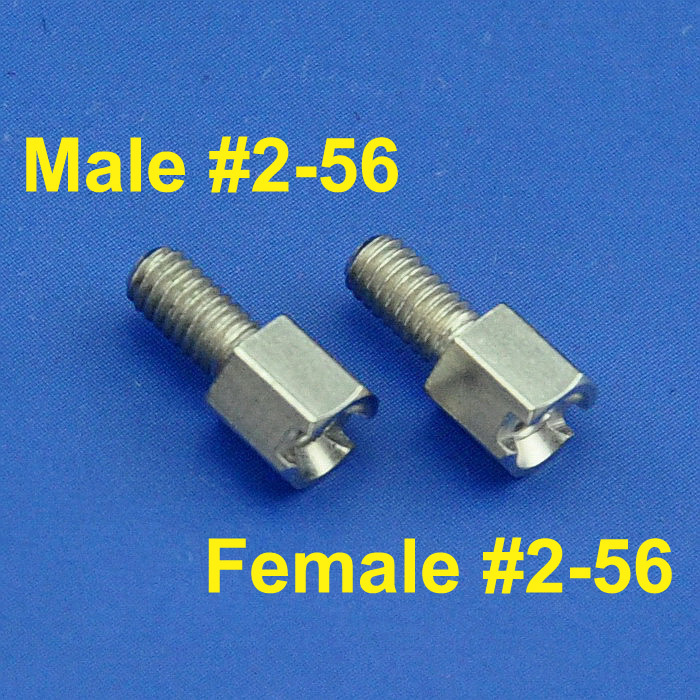

Support cable type: Latch bracket & #2-56 screw bracket type.
(other, we can supply M2.6 screw bracket version, if you need M2.6 screw bracket version please contact me).

Terminal block specifications:
Wire range: 26-16AWG.
Pitch: 3.81mm/0.15"
Strip length: 5mm.
Screws: M2,steel,Cr3+ Zn plated.
Pin header and Cage - Brass.
