Description

Features:

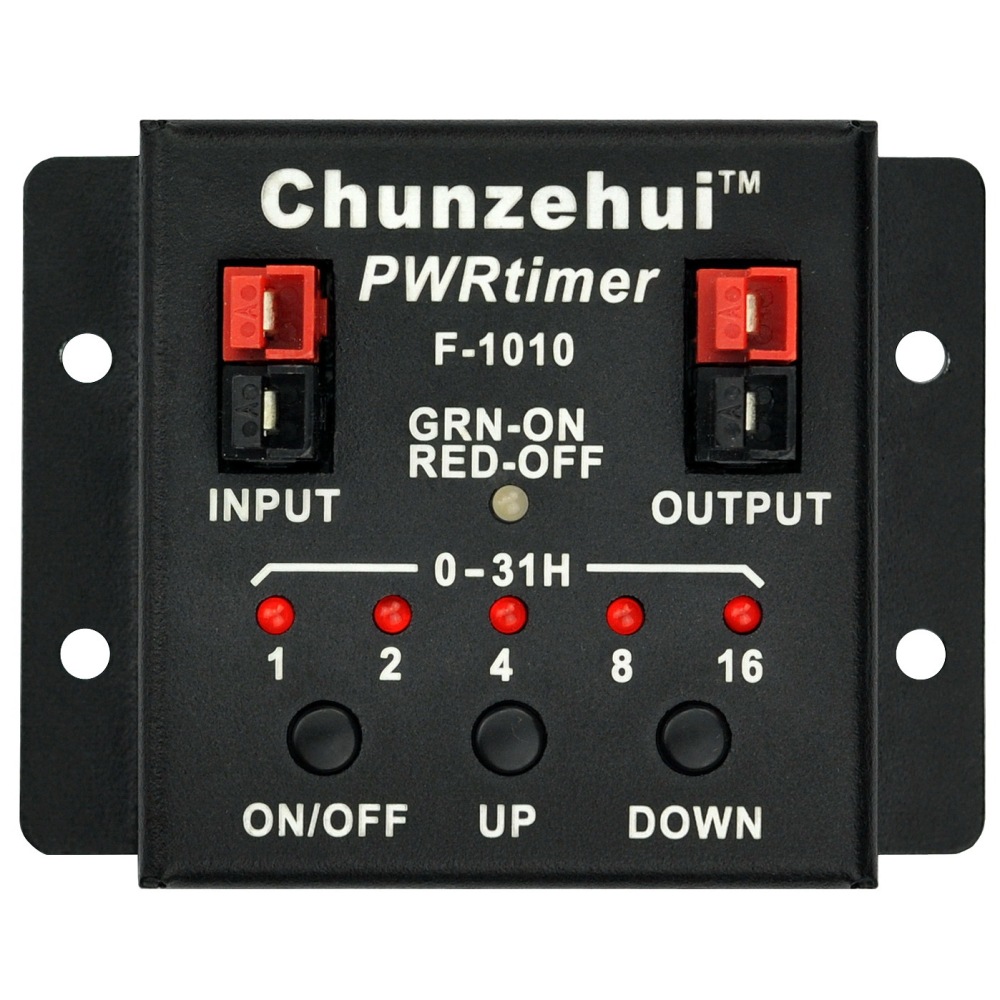

1, Power switch ON/OFF, timer ON or timer OFF system functions. Timer range 0 to 31 hours and per step 1 hour, combined LEDs residual time indication, for example 5 hours, LED 1 and 4 light is on(1+4=5H), other LED is off. Operating buttons, timer start and timer stop there are buzzer sounds to remind you. Timer stopped buzzer sound remind 60 seconds, if you want stop the sound, pressing any button will stop the sound.
2, Design based on microcontroller and low loss MOSFETs (on status resistance 0.0023 ohm), you do not have to add heatsinks even for 30 Amps of continuous working current.

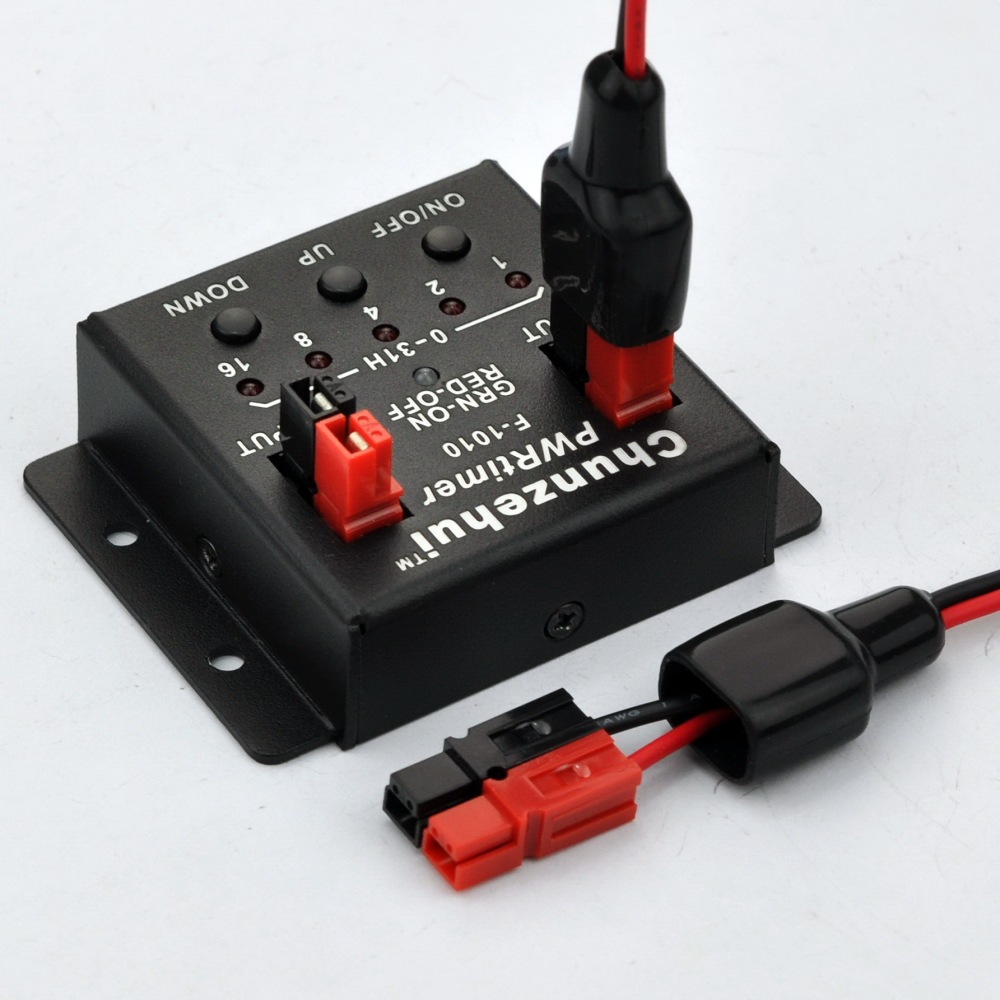

3, Standard Power pole connectors.

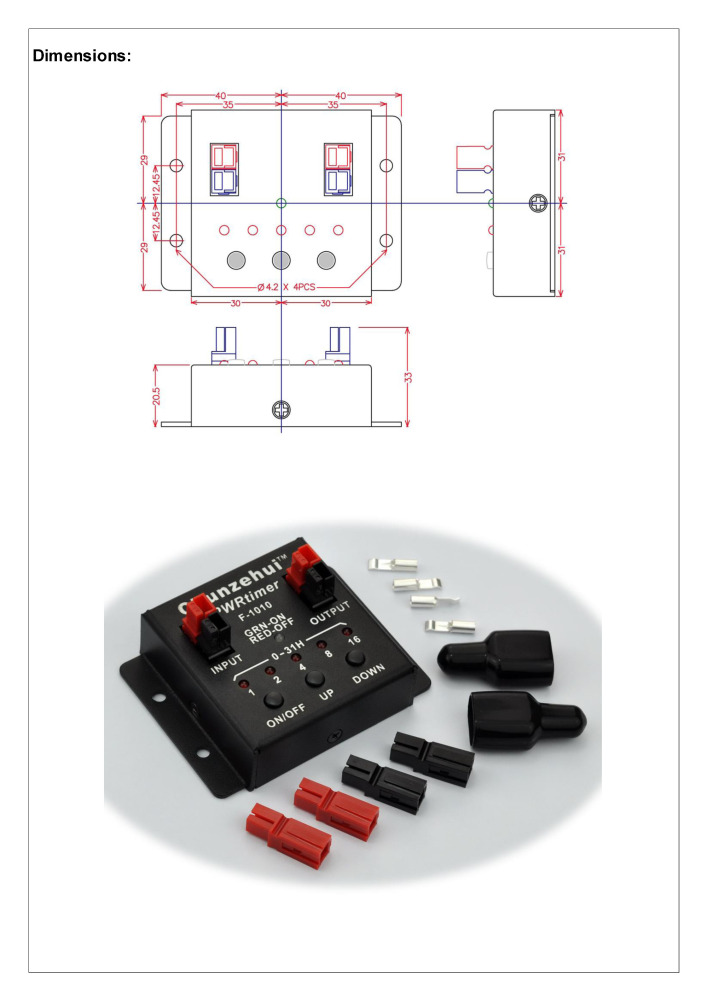

4, High quality aluminum enclosure, thickness 1.5mm/0.06". Overall Dimensions(maximum, w/o cables): 80mm x 62mm x 33mm / 3.15" x 2.44" x 1.30"

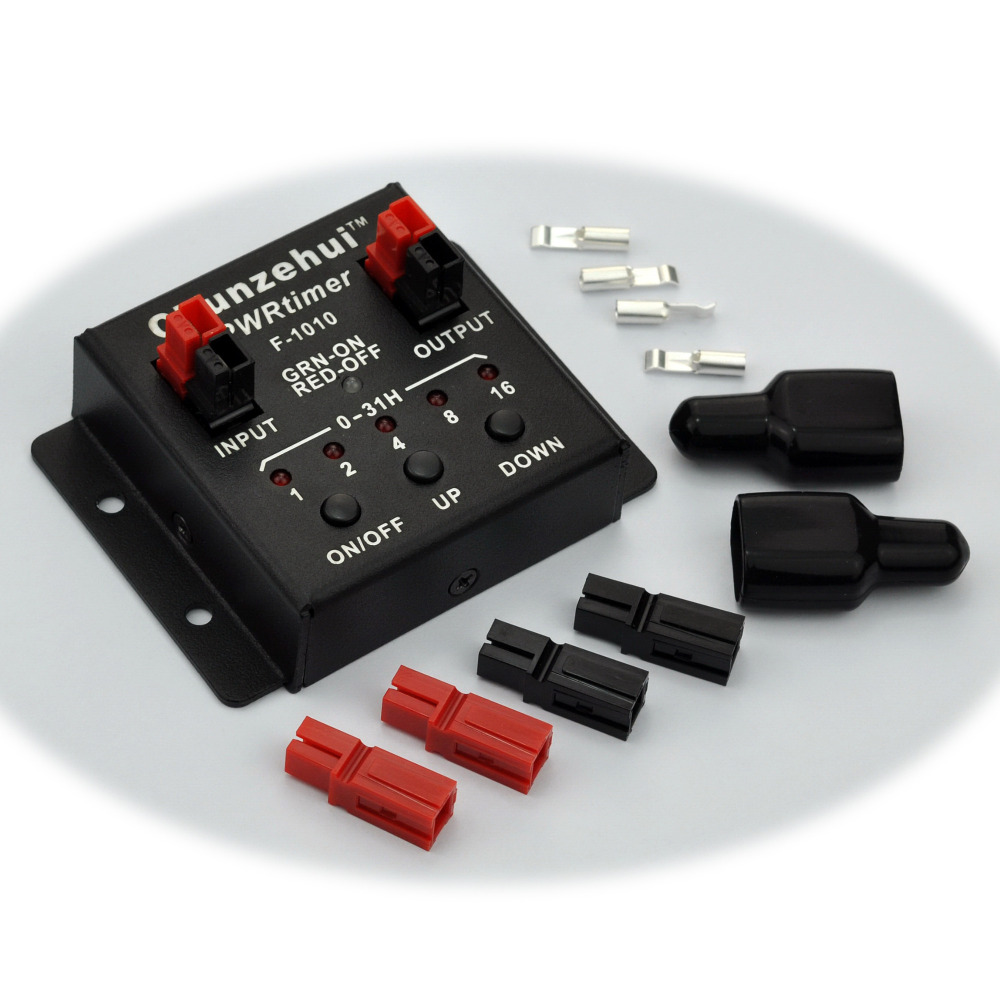

5, Attachment includes: 2x black power pole housings. 2x red power pole housings. 2x PVC cover flame retardant sleeve. 4x silver plated copper 30A 14-12AWG power pole contacts.

Specification:
Operating voltage: DC 8 ~ 28V
Quiescent current: < 9mA (at 13.8V)
Max. output current: 40A (< 5 seconds)
Max. continuous output current: 30A
Voltage drop: 0.025V (at 10A) / 0.070V (at 30A)
Timer range: 0 ~ 31 hours, per step 1 hour.
Timing accuracy: < 60ppm, ( < 1second / hour )
MOSFETs: 30V 40A P-Channel, on status resistance 0.0023 ohm.
Connectors: compatible 45A power pole connectors, Red is positive, Black is negative.

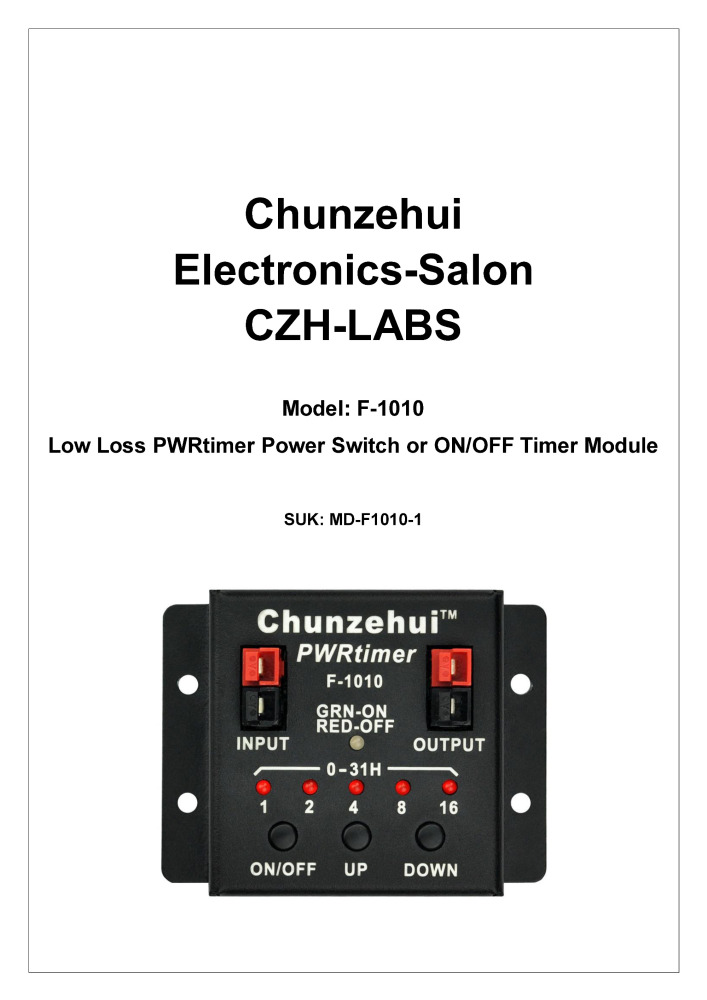

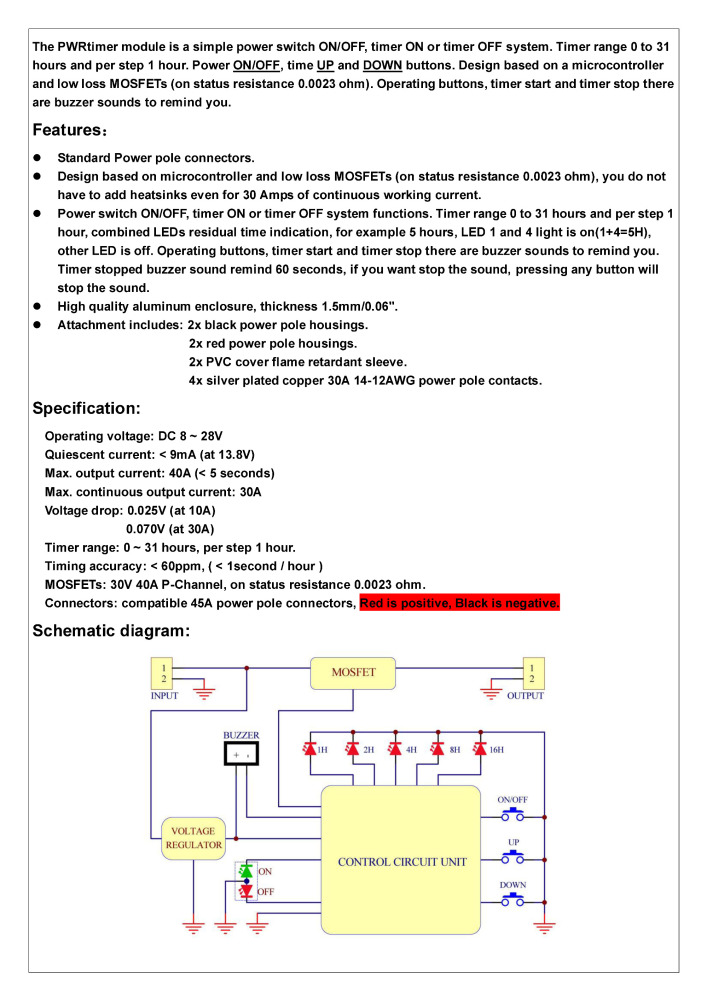

Datasheet:
