Chunzehui 8 Channels Common DIN Rail Mount 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.

SKU: D-1216T/110V
$25.00 $25.00
Chunzehui 8 Channels Common DIN Rail Mount 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $25 = $25
save $0.00
Add to Favorites
  • Chunzehui 8 Channels Common DIN Rail Mount 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 8 Channels Common DIN Rail Mount 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 8 Channels Common DIN Rail Mount 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 8 Channels Common DIN Rail Mount 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 8 Channels Common DIN Rail Mount 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 8 Channels Common DIN Rail Mount 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 8 Channels Common DIN Rail Mount 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 8 Channels Common DIN Rail Mount 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 8 Channels Common DIN Rail Mount 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 8 Channels Common DIN Rail Mount 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 8 Channels Common DIN Rail Mount 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 8 Channels Common DIN Rail Mount 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 8 Channels Common DIN Rail Mount 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 8 Channels Common DIN Rail Mount 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 8 Channels Common DIN Rail Mount 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 8 Channels Common DIN Rail Mount 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
1/1
  • Chunzehui 8 Channels Common DIN Rail Mount 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 8 Channels Common DIN Rail Mount 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 8 Channels Common DIN Rail Mount 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 8 Channels Common DIN Rail Mount 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 8 Channels Common DIN Rail Mount 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 8 Channels Common DIN Rail Mount 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 8 Channels Common DIN Rail Mount 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 8 Channels Common DIN Rail Mount 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Description

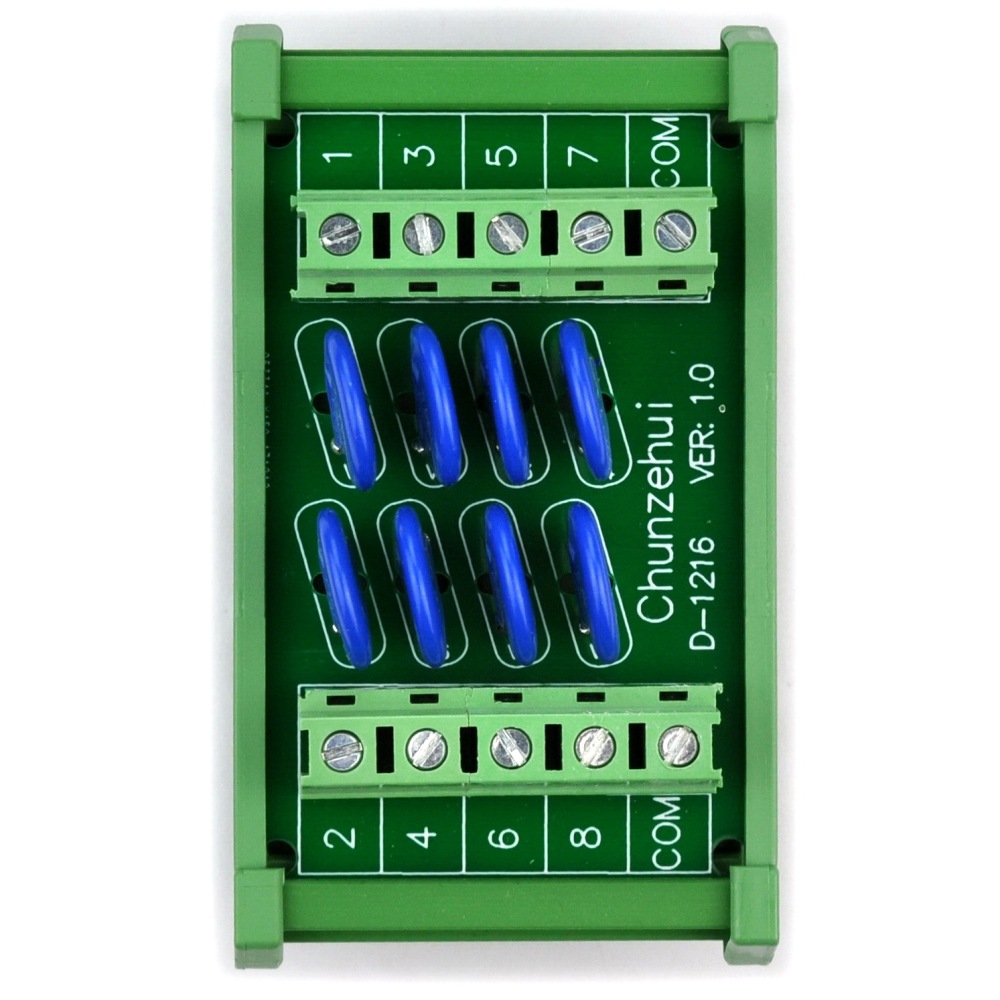

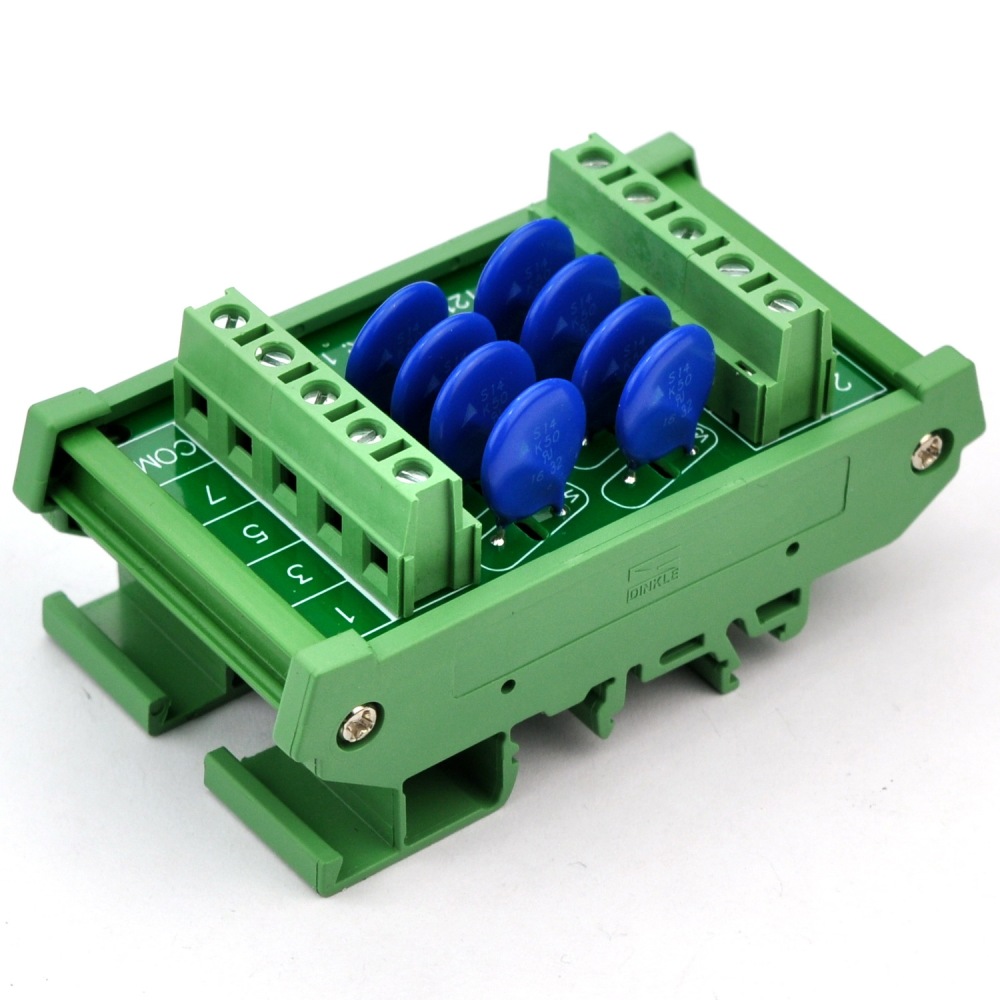

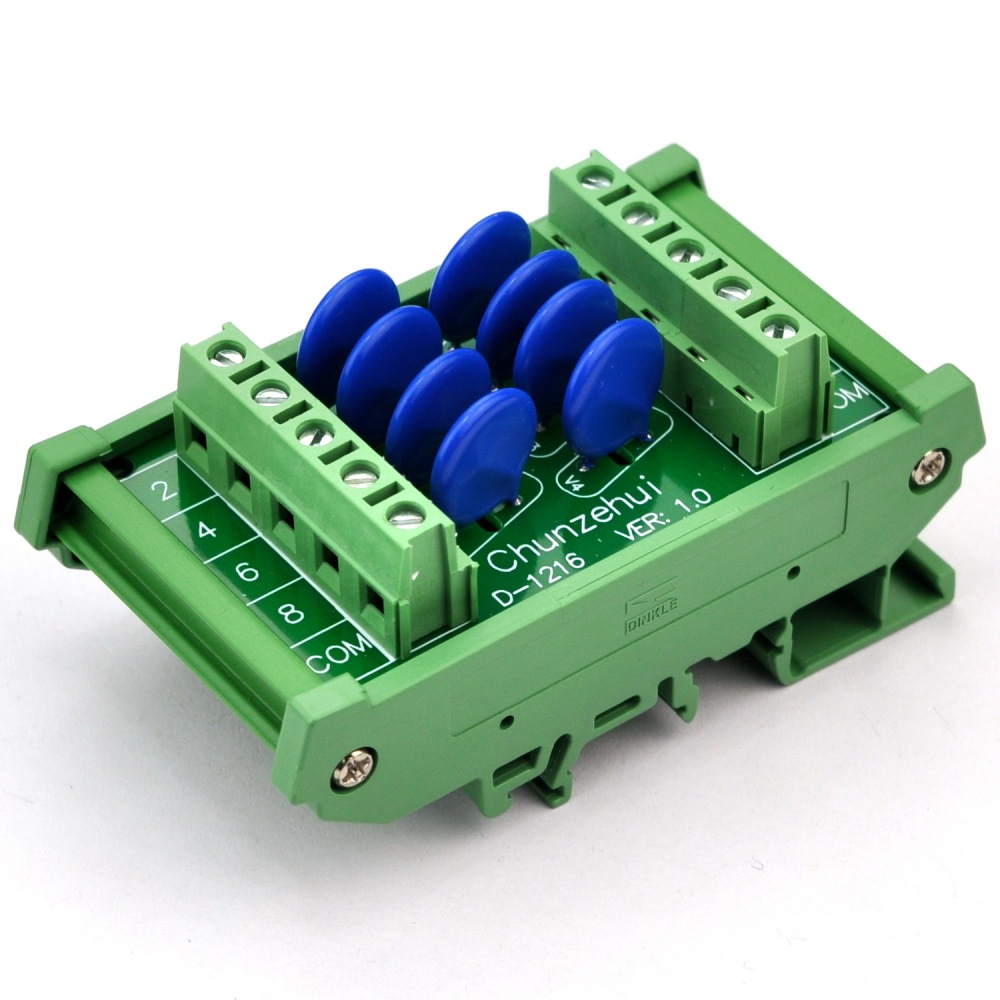

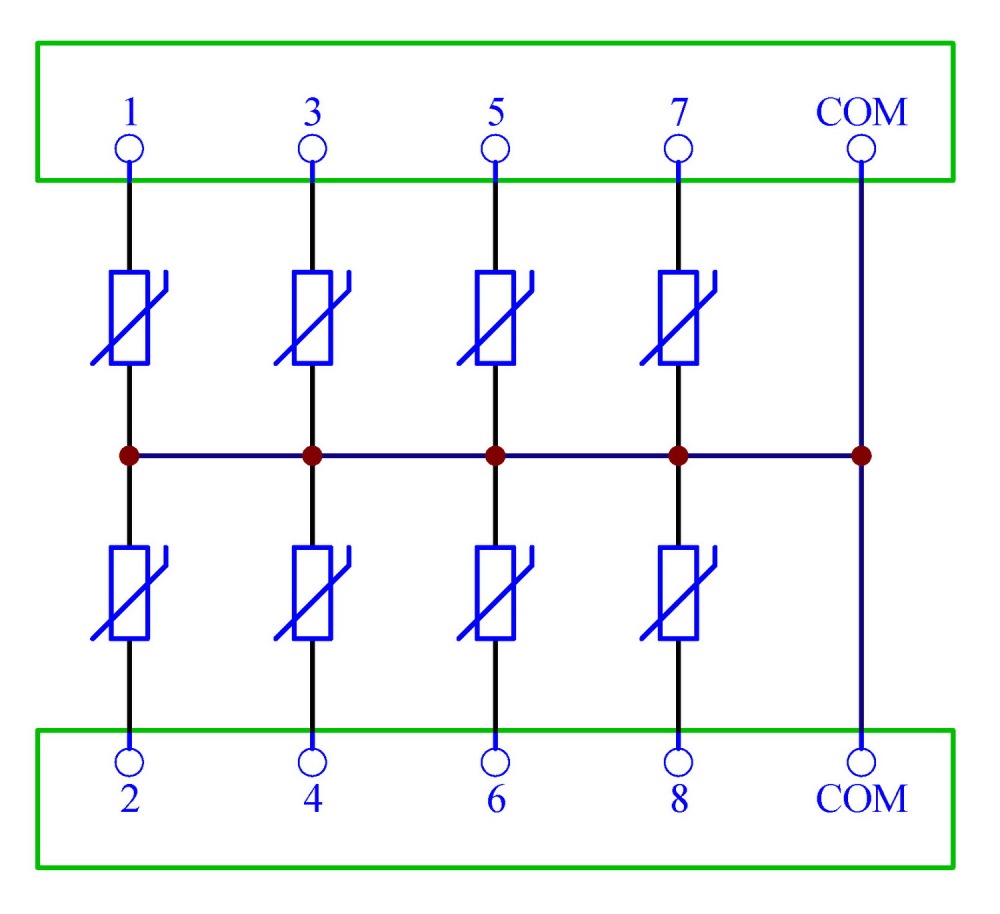

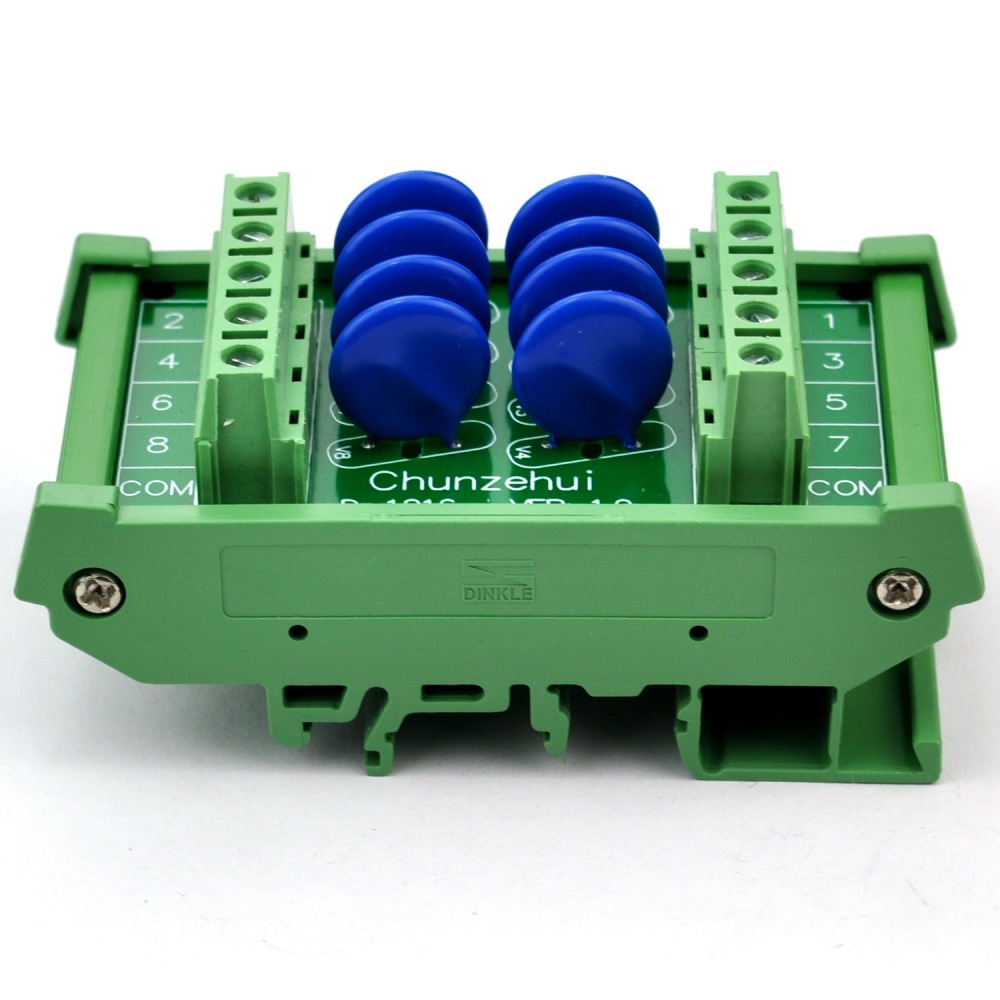

DIN rail mount SIOV metal oxide varistor interface module, 8 channels common connect.

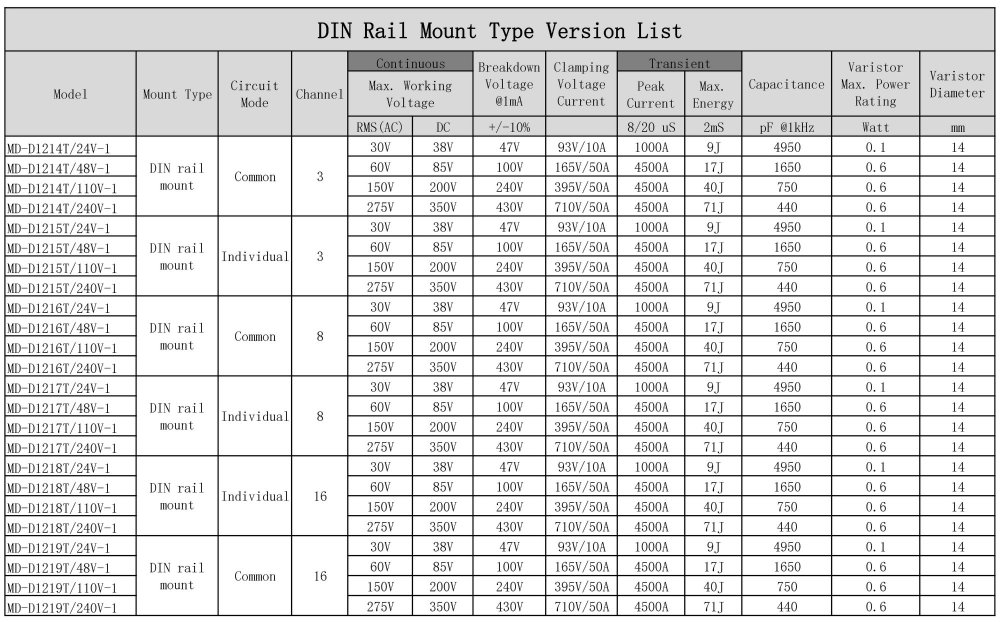

Continuous maximum working voltage: 150VAC(RMS) / 200VDC.
Breakdown voltage(at 1mA): 240V, Clamping voltage: 395V(50A), Transient peak current: 4500A.

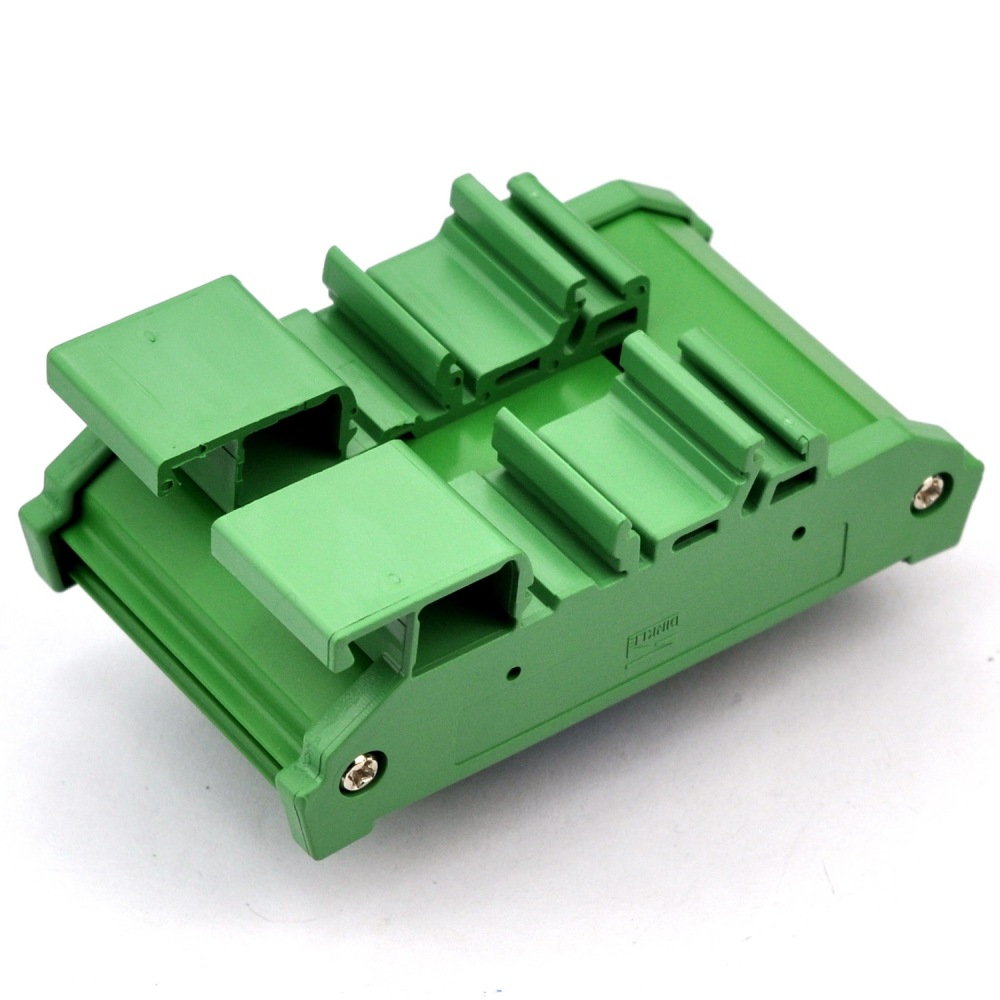

Ease of connection with the use of screw connection terminal blocks. Taiwan fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use.
