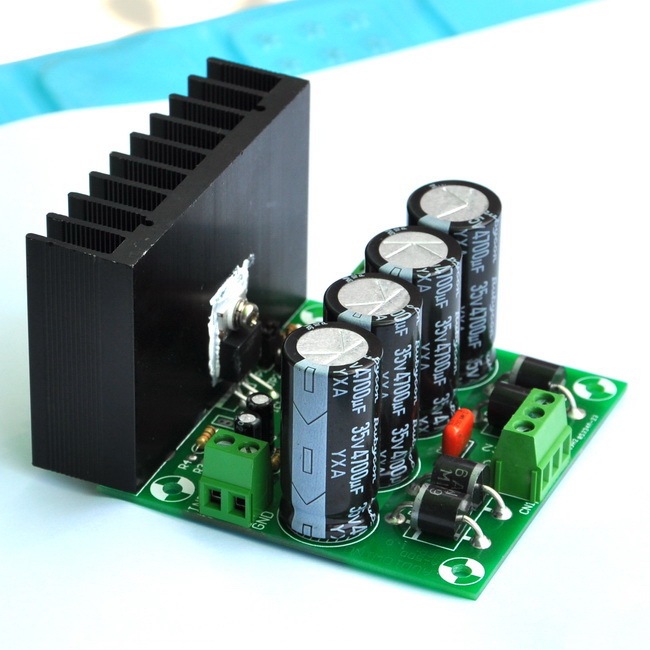

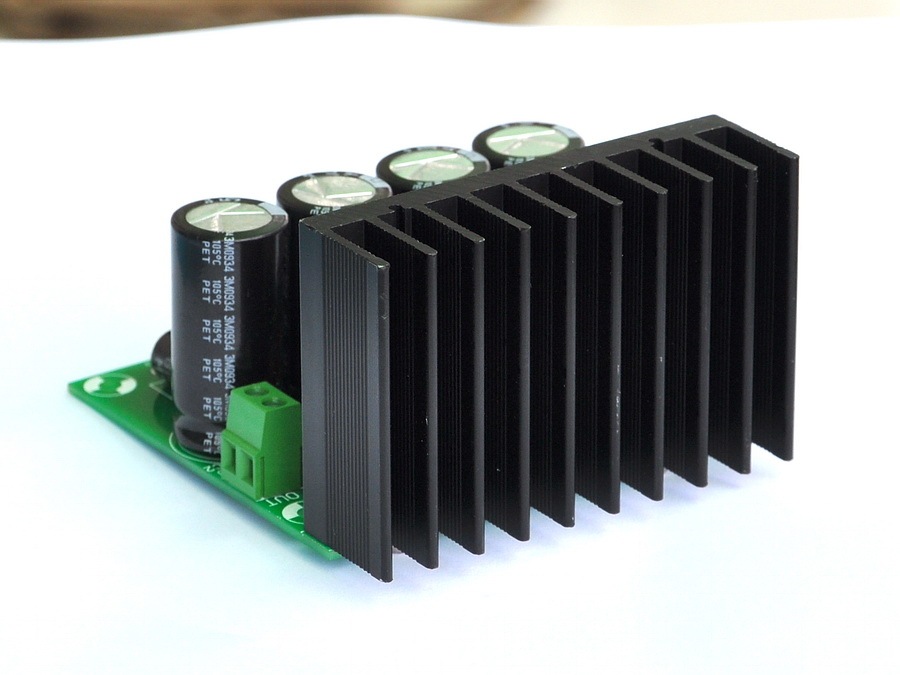

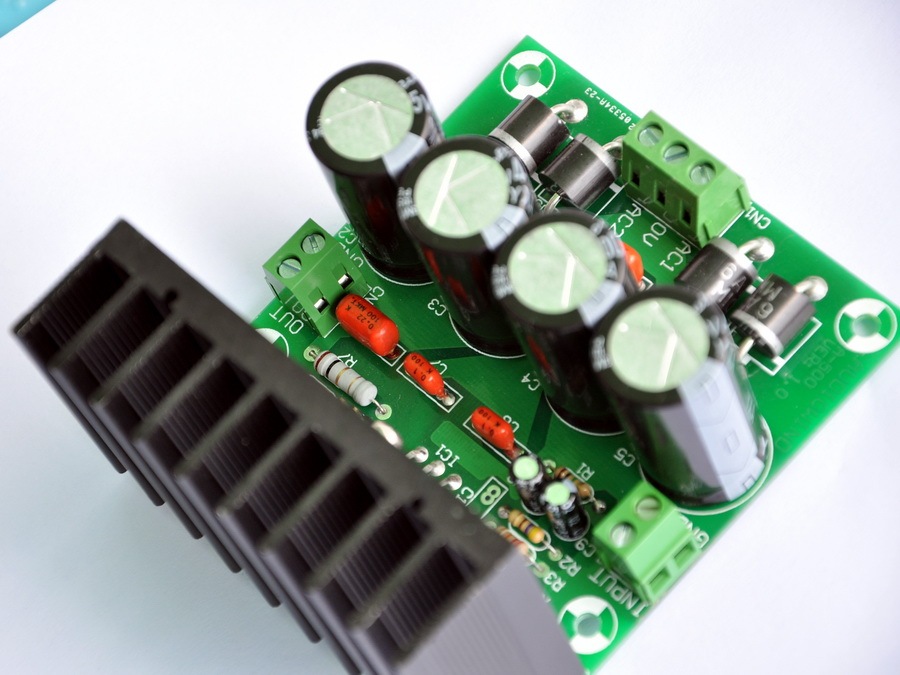

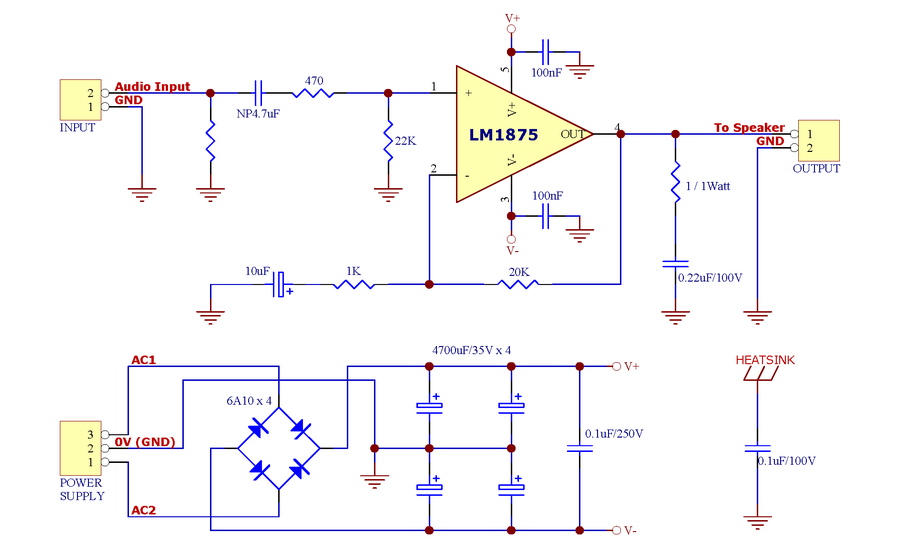

25 Watts Mono Amplifier Module, With Heatsink.
This item has been assembled, and electrical test passed.
Based on LM1875T IC design.
Used high-quality electronic components:

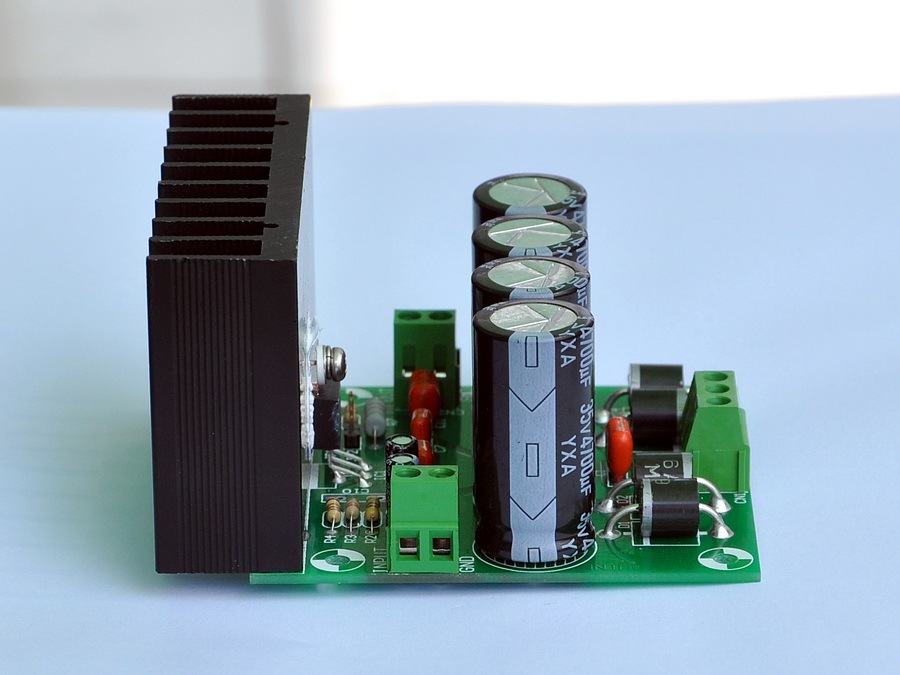

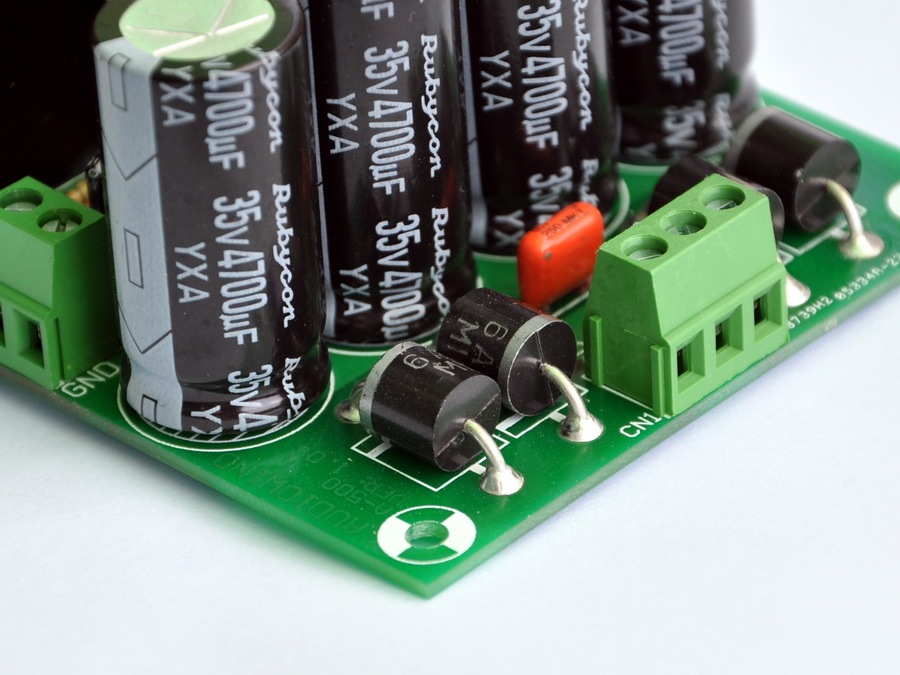

Four 4700uF/35V 105°C power filter capacitors.
Metal film capacitors.
Four 6 Amps rectifiers.
HQ terminal blocks easy connection wire.

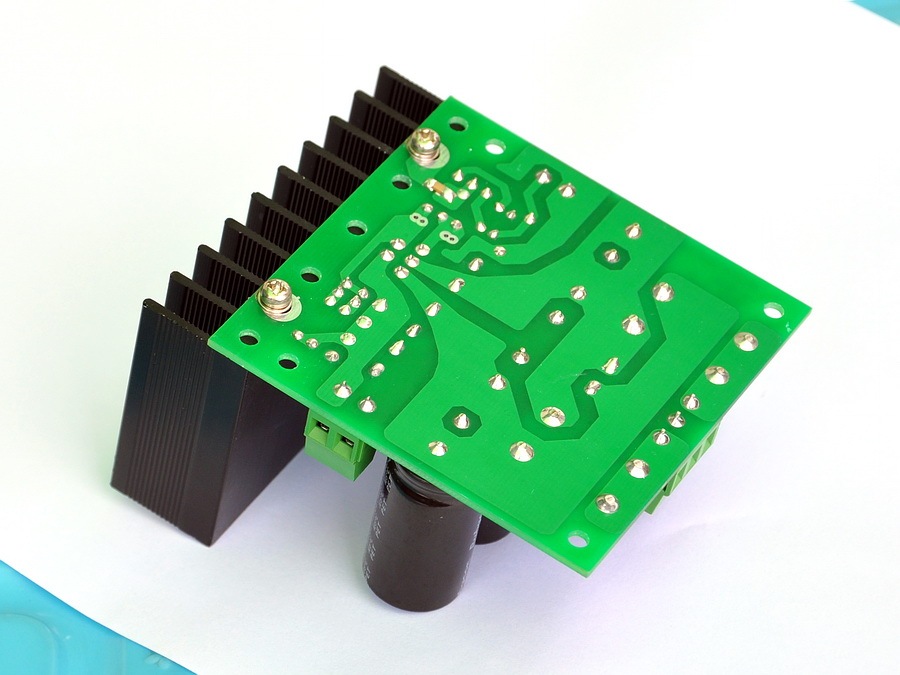

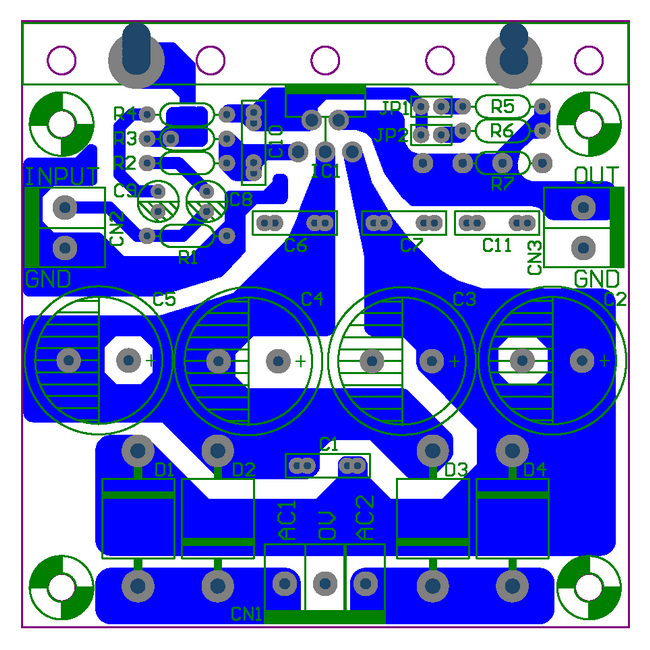

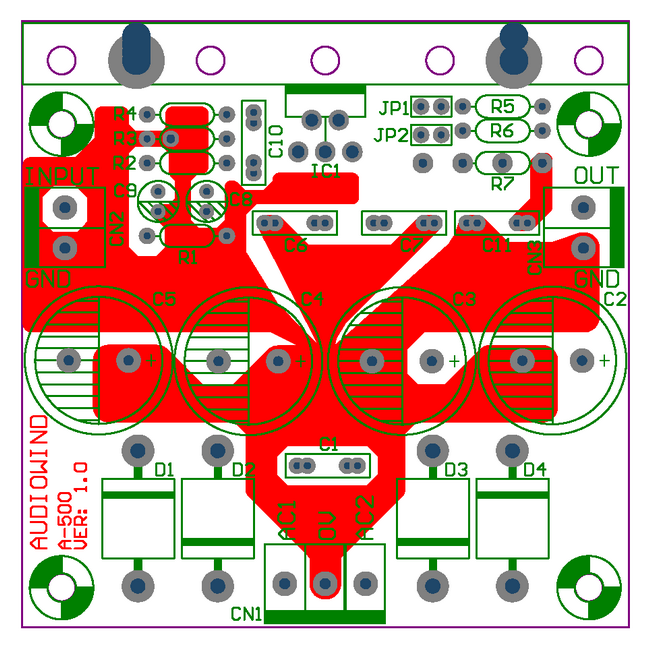

Thickness 1.6mm FR-4 fiber glass PCB (double layer).
Specifications:
Power Supply Input: Dual 19 +/-1 V AC (Power Transformer > 60VA)
Input Level: 600mV RMS.
Output Power: >= 25 Watts (THD=1%, 4 OHM Load).
Frequency Response: 30 Hz to 100 KHz. (-3dB).
THD: < 0.02% (20 Watts, 4 OHM Load).
Voltage Gain: about 26 +/-1 dB.
Size:
Module Size: 76.2 x 91 x 56 mm (3 x 3.6 x 2.2 inch).
Heatsink Size: 76.2 x 50 x 22 mm (3 x 2 x 0.87 inch).

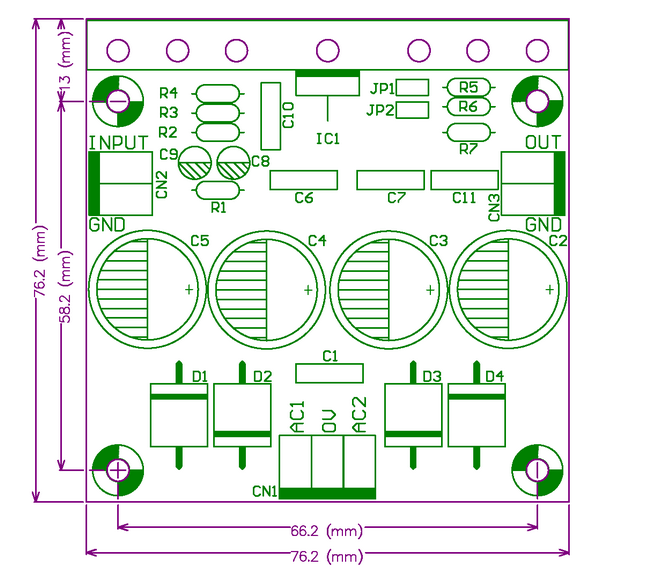

PCB Size: 76.2 x 76.2 mm (3 x 3 inch).
Datasheet:
