Home > Audio Module Board > AUDIOWIND A-300 Stereo Phono RIAA Preamplifier Preamp Module (For MC Pickup).
  • AUDIOWIND A-300 Stereo Phono RIAA Preamplifier Preamp Module (For MC Pickup).
  • AUDIOWIND A-300 Stereo Phono RIAA Preamplifier Preamp Module (For MC Pickup).
  • AUDIOWIND A-300 Stereo Phono RIAA Preamplifier Preamp Module (For MC Pickup).
  • AUDIOWIND A-300 Stereo Phono RIAA Preamplifier Preamp Module (For MC Pickup).
  • AUDIOWIND A-300 Stereo Phono RIAA Preamplifier Preamp Module (For MC Pickup).
  • AUDIOWIND A-300 Stereo Phono RIAA Preamplifier Preamp Module (For MC Pickup).
  • AUDIOWIND A-300 Stereo Phono RIAA Preamplifier Preamp Module (For MC Pickup).
1/1
  • AUDIOWIND A-300 Stereo Phono RIAA Preamplifier Preamp Module (For MC Pickup).
  • AUDIOWIND A-300 Stereo Phono RIAA Preamplifier Preamp Module (For MC Pickup).
  • AUDIOWIND A-300 Stereo Phono RIAA Preamplifier Preamp Module (For MC Pickup).
  • AUDIOWIND A-300 Stereo Phono RIAA Preamplifier Preamp Module (For MC Pickup).
  • AUDIOWIND A-300 Stereo Phono RIAA Preamplifier Preamp Module (For MC Pickup).
  • AUDIOWIND A-300 Stereo Phono RIAA Preamplifier Preamp Module (For MC Pickup).
  • AUDIOWIND A-300 Stereo Phono RIAA Preamplifier Preamp Module (For MC Pickup).
Share:

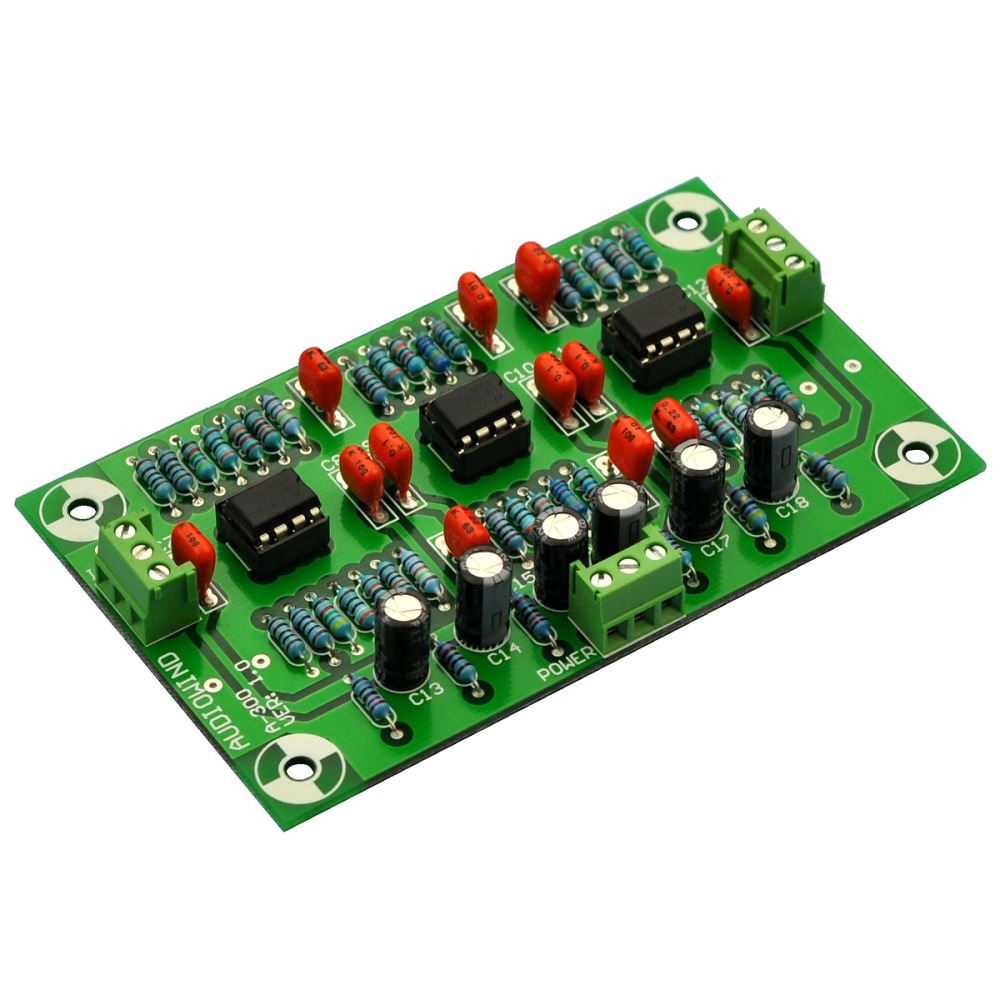

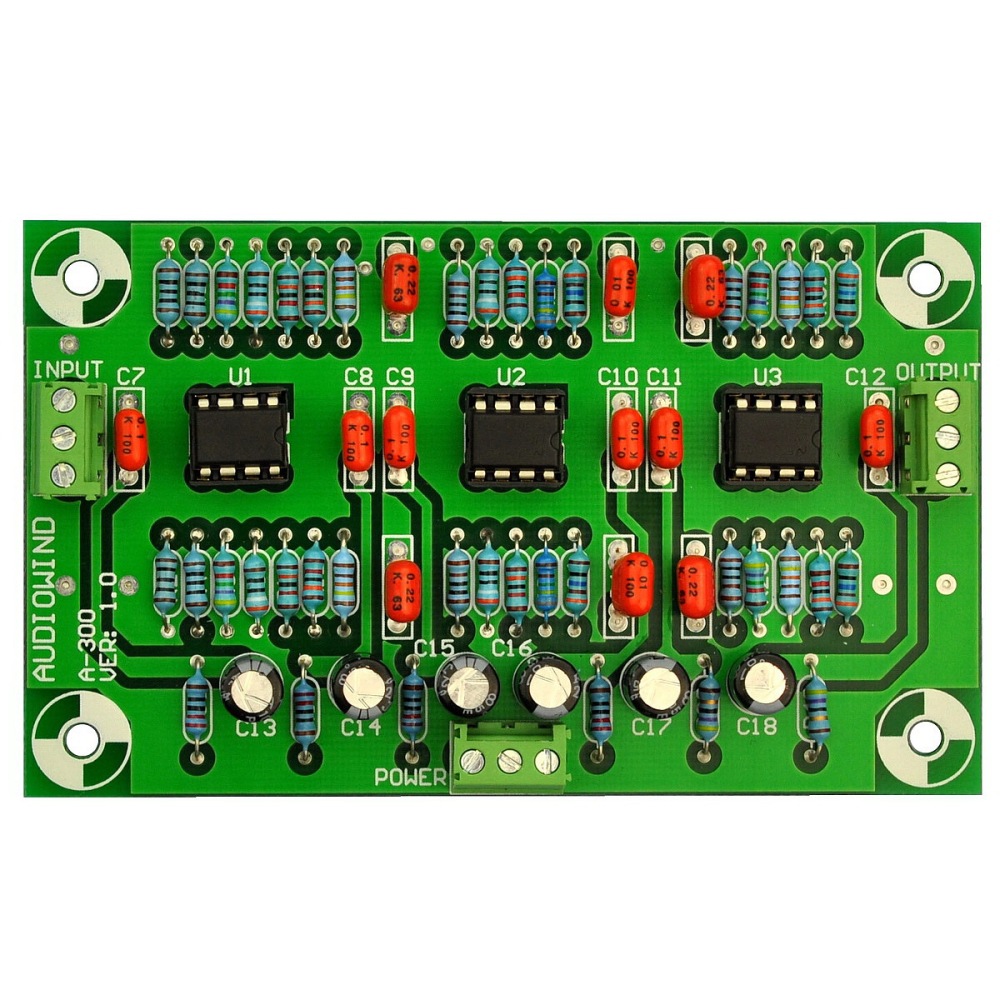

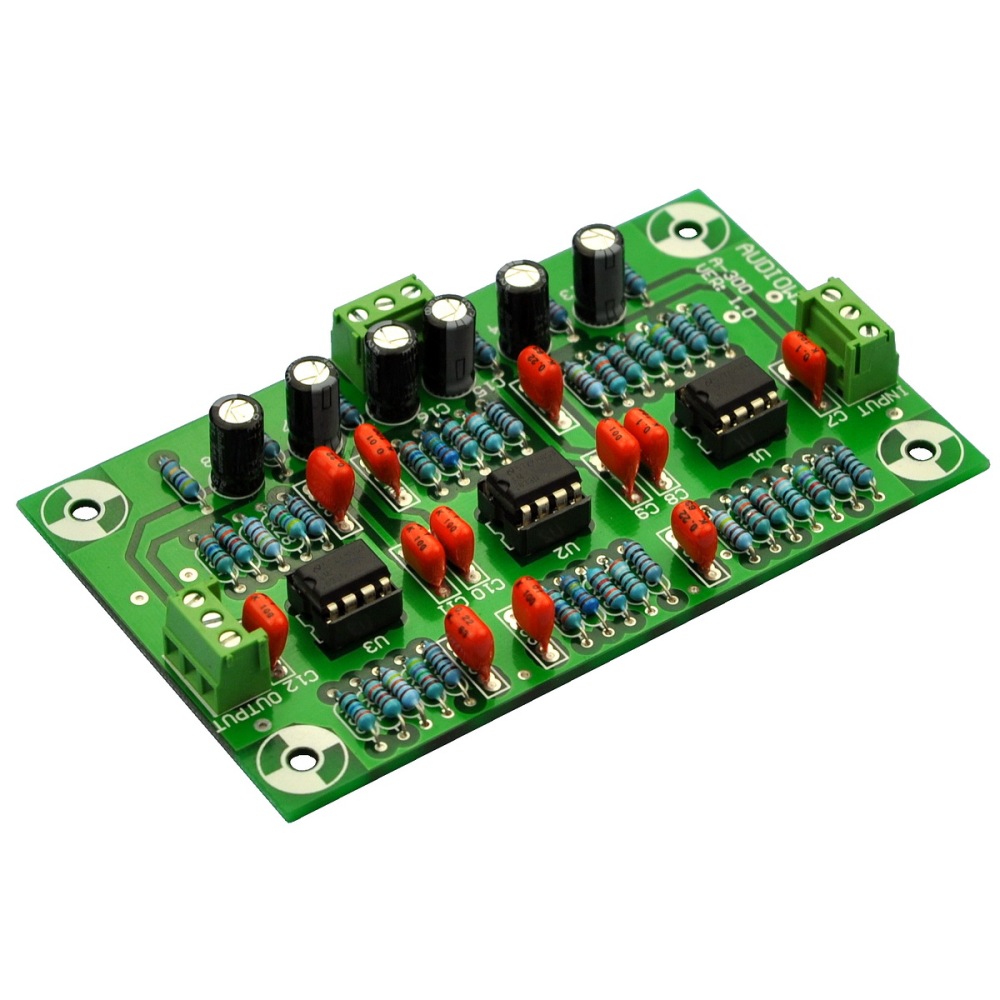

AUDIOWIND A-300 Stereo Phono RIAA Preamplifier Preamp Module (For MC Pickup).

SKU: A-300MC
$38.00 $38.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $38 = $38
save $0.00
Add to Favorites
  • AUDIOWIND A-300 Stereo Phono RIAA Preamplifier Preamp Module (For MC Pickup).
  • AUDIOWIND A-300 Stereo Phono RIAA Preamplifier Preamp Module (For MC Pickup).
  • AUDIOWIND A-300 Stereo Phono RIAA Preamplifier Preamp Module (For MC Pickup).
  • AUDIOWIND A-300 Stereo Phono RIAA Preamplifier Preamp Module (For MC Pickup).
  • AUDIOWIND A-300 Stereo Phono RIAA Preamplifier Preamp Module (For MC Pickup).
  • AUDIOWIND A-300 Stereo Phono RIAA Preamplifier Preamp Module (For MC Pickup).
  • AUDIOWIND A-300 Stereo Phono RIAA Preamplifier Preamp Module (For MC Pickup).
  • AUDIOWIND A-300 Stereo Phono RIAA Preamplifier Preamp Module (For MC Pickup).
  • AUDIOWIND A-300 Stereo Phono RIAA Preamplifier Preamp Module (For MC Pickup).
  • AUDIOWIND A-300 Stereo Phono RIAA Preamplifier Preamp Module (For MC Pickup).
  • AUDIOWIND A-300 Stereo Phono RIAA Preamplifier Preamp Module (For MC Pickup).
  • AUDIOWIND A-300 Stereo Phono RIAA Preamplifier Preamp Module (For MC Pickup).
  • AUDIOWIND A-300 Stereo Phono RIAA Preamplifier Preamp Module (For MC Pickup).
  • AUDIOWIND A-300 Stereo Phono RIAA Preamplifier Preamp Module (For MC Pickup).
1/1
  • AUDIOWIND A-300 Stereo Phono RIAA Preamplifier Preamp Module (For MC Pickup).
  • AUDIOWIND A-300 Stereo Phono RIAA Preamplifier Preamp Module (For MC Pickup).
  • AUDIOWIND A-300 Stereo Phono RIAA Preamplifier Preamp Module (For MC Pickup).
  • AUDIOWIND A-300 Stereo Phono RIAA Preamplifier Preamp Module (For MC Pickup).
  • AUDIOWIND A-300 Stereo Phono RIAA Preamplifier Preamp Module (For MC Pickup).
  • AUDIOWIND A-300 Stereo Phono RIAA Preamplifier Preamp Module (For MC Pickup).
  • AUDIOWIND A-300 Stereo Phono RIAA Preamplifier Preamp Module (For MC Pickup).
  • Description
This item has been assembled, and electrical test passed.

Best Operating Voltage: +/-9V DC to +/-15V DC.
Gain: 60dB
Input Impedance: 100 ohm
Output Impedance: 330 ohm.
RIAA Accuracy: <1dB.
Bandwidth: 20 to 100KHz (-3dB).
Distortion: 0.05% (@1KHz).
SNR: >68dB(use batteries supply).

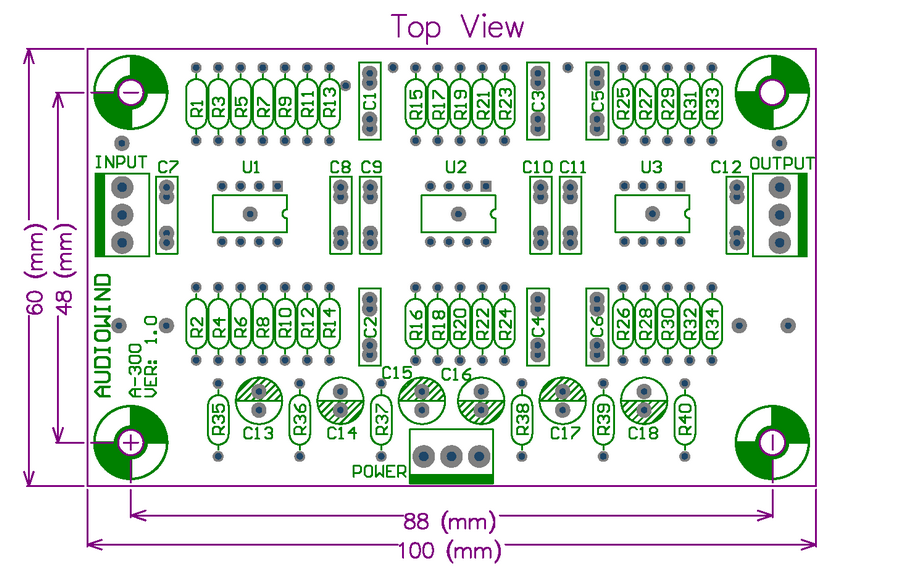

Size: 100 x 60 x 16mm (L x W x H).

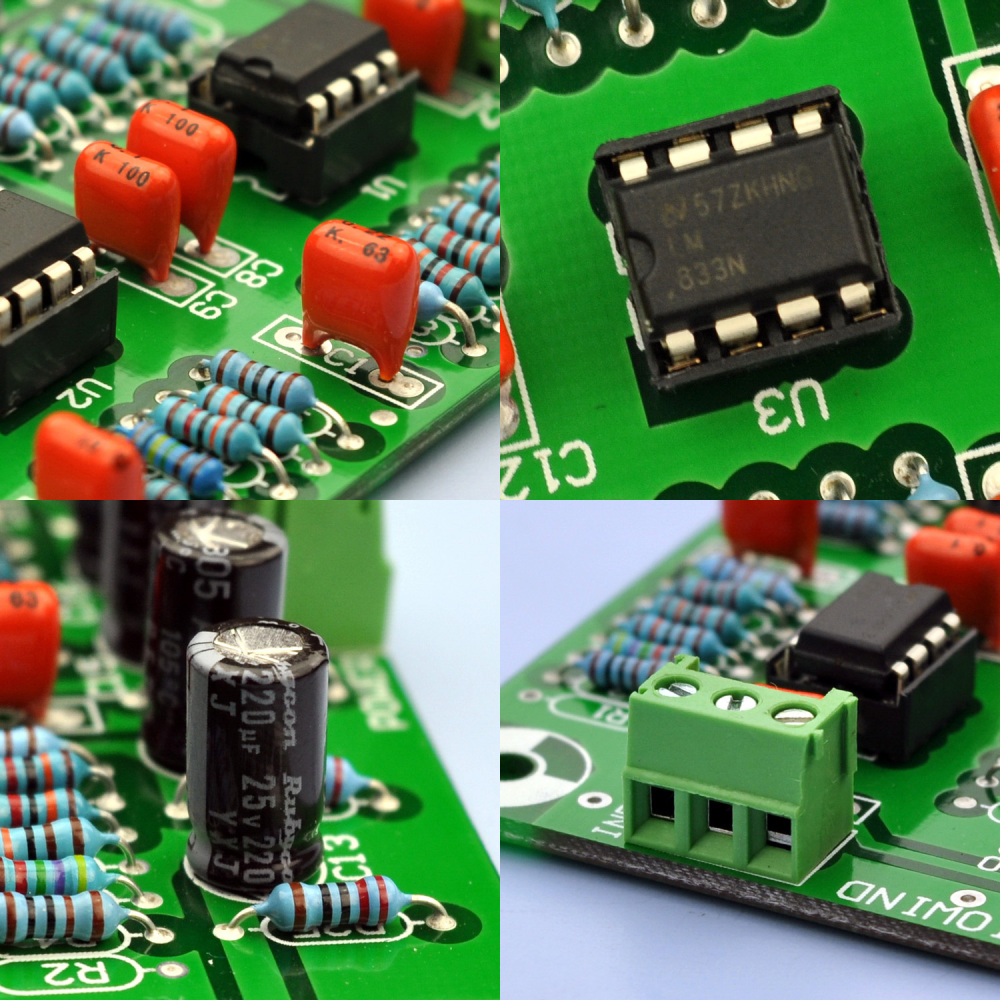

Used high-quality electronic components:
Thickness 1.6mm FR-4 fiber glass PCB (double layer).
HQ terminal blocks easy connection wire.
Metallized film capacitors.
Precision 1% metal film resistors.
Low noise and low distortion audio opamps LM833-N
DIP-8 opamp IC socket, can easily replace other opamps.
