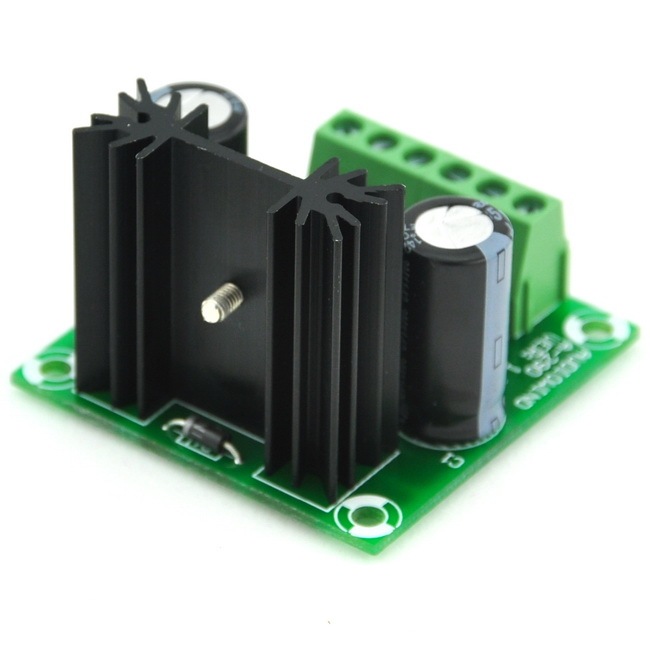

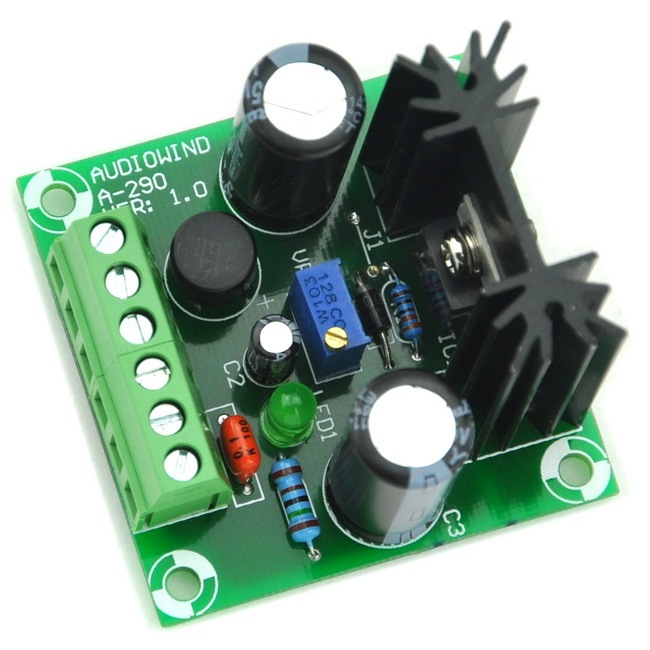

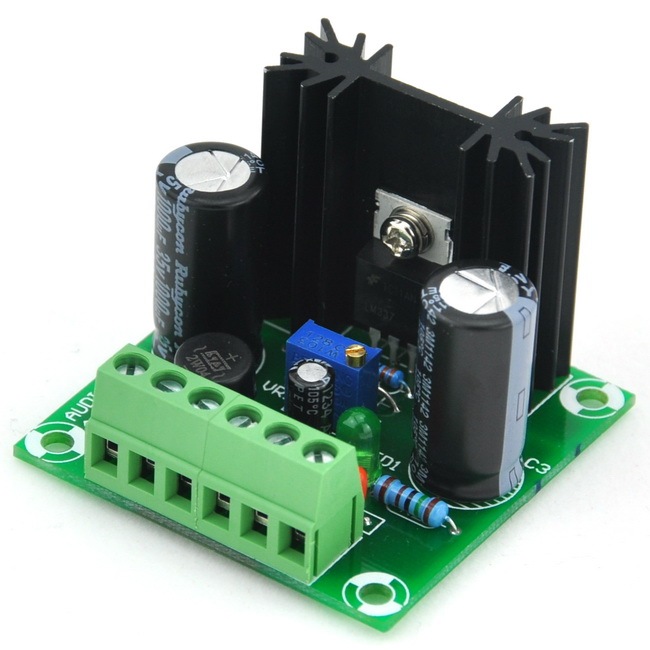

AUDIOWIND -1.5 to -29V DC Negative Voltage Adjustable Regulator Module Board, LM337 IC.

SKU: A-290/LM
$9.99 $9.99
AUDIOWIND -1.5 to -29V DC Negative Voltage Adjustable Regulator Module Board, LM337 IC.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $9.99 = $9.99
save $0.00
Add to Favorites
  • AUDIOWIND -1.5 to -29V DC Negative Voltage Adjustable Regulator Module Board, LM337 IC.
  • AUDIOWIND -1.5 to -29V DC Negative Voltage Adjustable Regulator Module Board, LM337 IC.
  • AUDIOWIND -1.5 to -29V DC Negative Voltage Adjustable Regulator Module Board, LM337 IC.
  • AUDIOWIND -1.5 to -29V DC Negative Voltage Adjustable Regulator Module Board, LM337 IC.
  • AUDIOWIND -1.5 to -29V DC Negative Voltage Adjustable Regulator Module Board, LM337 IC.
  • AUDIOWIND -1.5 to -29V DC Negative Voltage Adjustable Regulator Module Board, LM337 IC.
  • AUDIOWIND -1.5 to -29V DC Negative Voltage Adjustable Regulator Module Board, LM337 IC.
  • AUDIOWIND -1.5 to -29V DC Negative Voltage Adjustable Regulator Module Board, LM337 IC.
  • AUDIOWIND -1.5 to -29V DC Negative Voltage Adjustable Regulator Module Board, LM337 IC.
  • AUDIOWIND -1.5 to -29V DC Negative Voltage Adjustable Regulator Module Board, LM337 IC.
  • AUDIOWIND -1.5 to -29V DC Negative Voltage Adjustable Regulator Module Board, LM337 IC.
  • AUDIOWIND -1.5 to -29V DC Negative Voltage Adjustable Regulator Module Board, LM337 IC.
1/1
  • AUDIOWIND -1.5 to -29V DC Negative Voltage Adjustable Regulator Module Board, LM337 IC.
  • AUDIOWIND -1.5 to -29V DC Negative Voltage Adjustable Regulator Module Board, LM337 IC.
  • AUDIOWIND -1.5 to -29V DC Negative Voltage Adjustable Regulator Module Board, LM337 IC.
  • AUDIOWIND -1.5 to -29V DC Negative Voltage Adjustable Regulator Module Board, LM337 IC.
  • AUDIOWIND -1.5 to -29V DC Negative Voltage Adjustable Regulator Module Board, LM337 IC.
  • AUDIOWIND -1.5 to -29V DC Negative Voltage Adjustable Regulator Module Board, LM337 IC.
  • Description
Negative Voltage Adjustable Regulator Module.

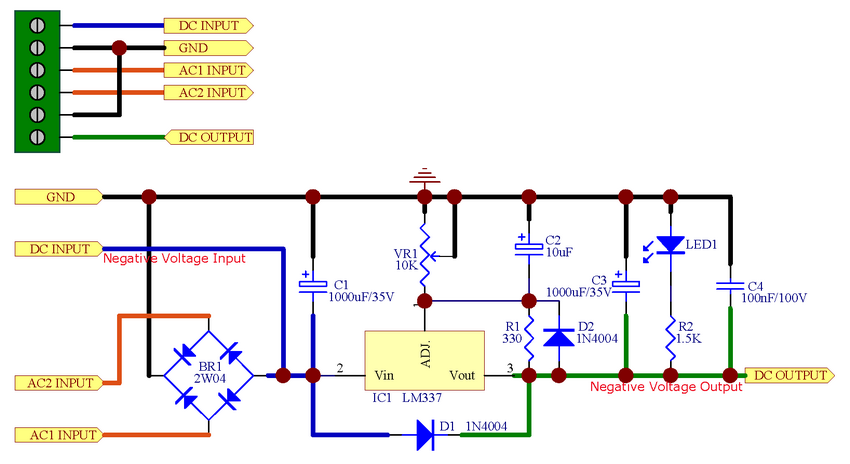

Based on LM337 Regulator IC Design, AC or DC Input, DC Output.
Complete Series of Protections (IC Function), Current Limiting, Thermal Shutdown and SOA Control. With Protection Diodes Circuit.
This item has been assembled, and electrical test passed.

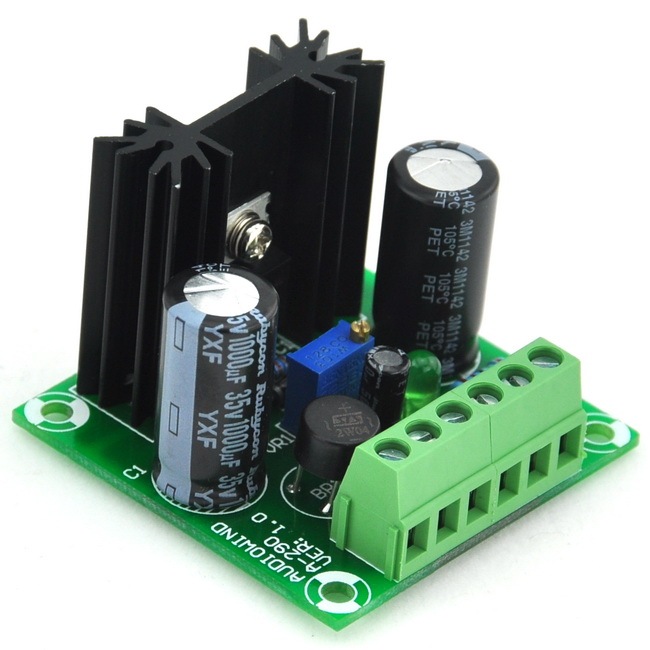

FR-4 fiber glass PCB. HQ terminal blocks, easy connection wires. 400V 2Amp Bridge Rectifier 2W04. 2x 1000uF/35V YXF 105C long life and low impedance electrolytic capacitors. metal film capacitor, conducive to filtering high-frequency noise. 28 turns precision trimmer. output voltage LED indicator.
DC input -4.5 to -32Vdc, or AC input 4 to 23.5Vac
Output Voltage -1.5 to -29Vdc
Maximum Current 1.5 Amp

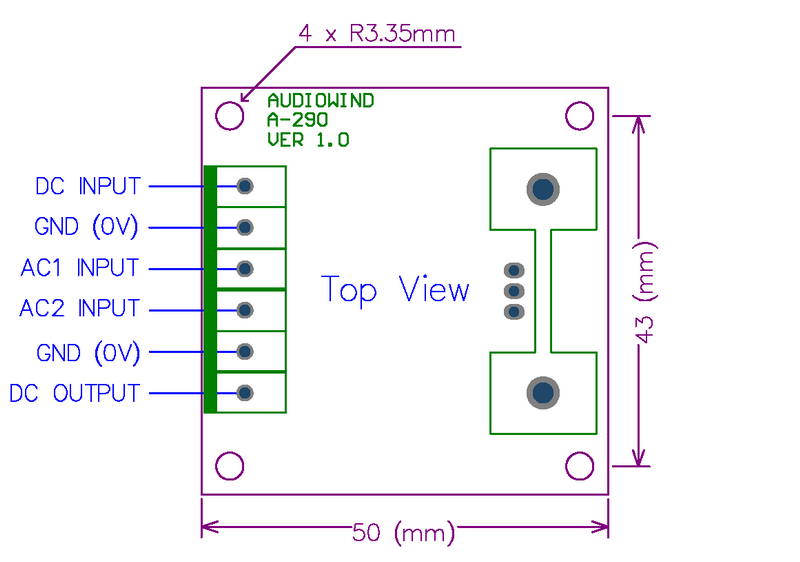

PCB Size: 50 x 50mm / 1.97 x 1.97 inch
PCB Thickness : 1.6mm / 0.063 inch
Module Size(W x L x H): 50 x 50 x 38mm / 1.97 x 1.97 x 1.5 inch
