FEATURES:

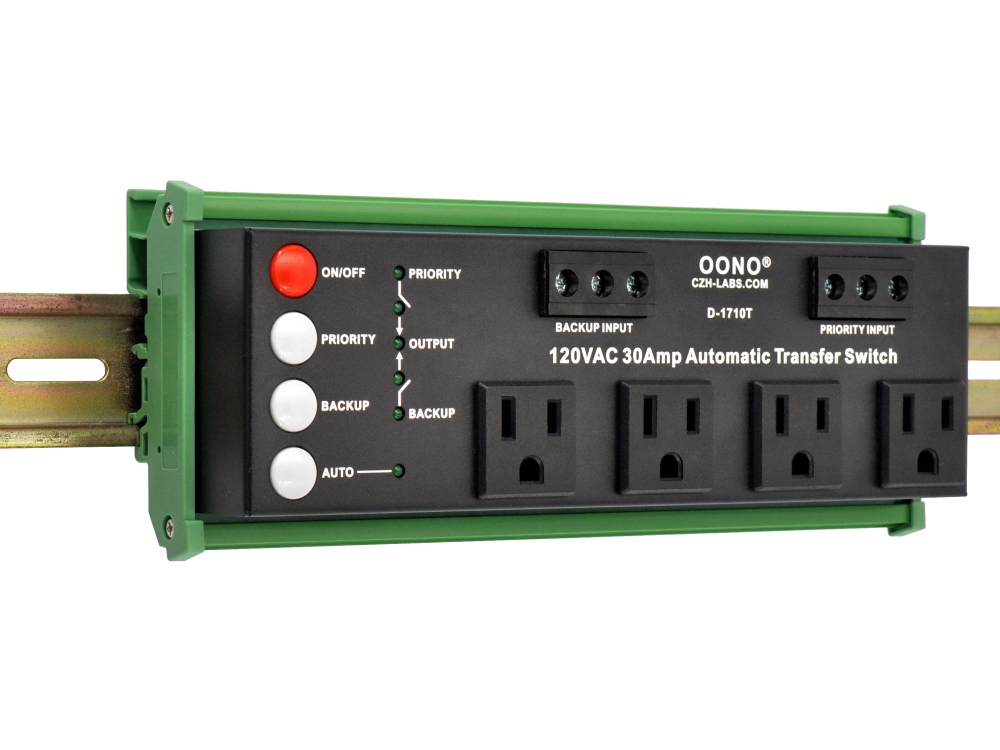

1, D-1710TL Automatic transfer switch, working voltage AC 120V, Rated input current 30 Amp (Priority or Backup input). Select input source automatically or manually. With output on/off control function. With power-off memory function. 4 Channel NEMA-15R output receptacles.
2, In automatic mode (press the AUTO button), the automatic selection priorities are: 1 – PRIORITY, 2 - BACKUP. If you want to manually select an input source (manual mode), you can directly press button: PRIORITY or BACKUP. When you want to return to automatic mode, just click the AUTO button.
3, Power ON/OFF control function: When you want to disconnect the load power, just click the ON/OFF button, it will immediately disconnect the live wire and the neutral wire at the same time, and all indicator LEDs will go out.

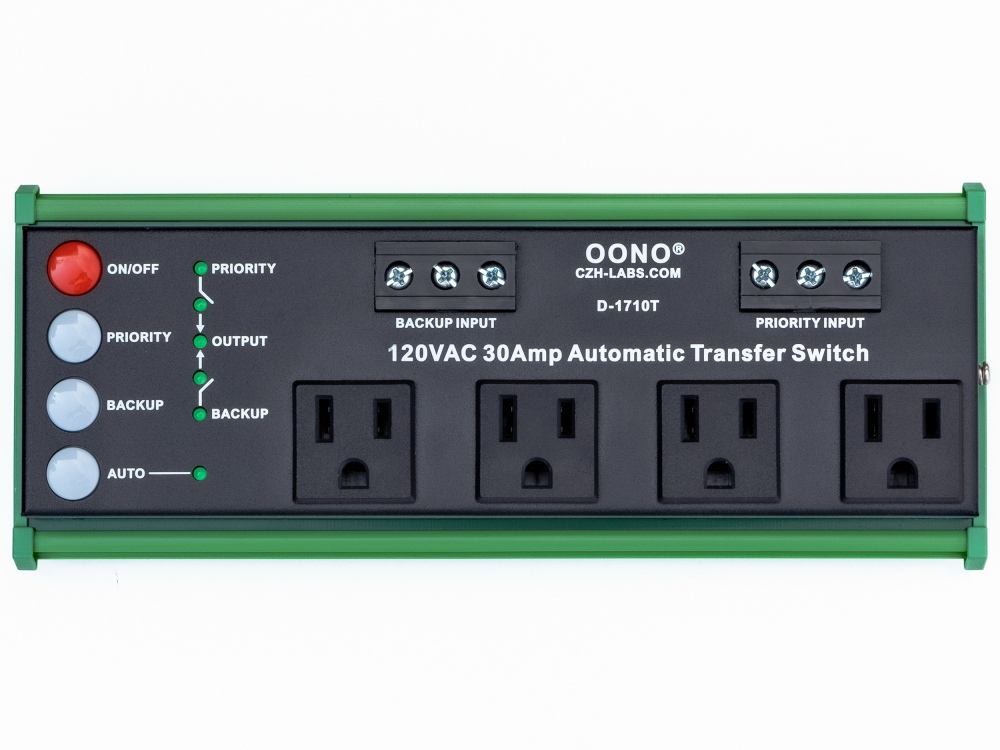

4, Multiple indicator lights allow you to clearly see the product's input source status, output status, operating mode, and the status of the internal relay switch.
5, It has a power-off memory function, and the next time it is powered on, it will return to the state before the power-off, which will not cause unpredictable consequences. The memory includes the operating mode, input source, and output switch status.
6, Transfer time less than 30mS (typically about 15mS), for most smart devices or computers, the switching action of 30mS time will not affect their normal operation.

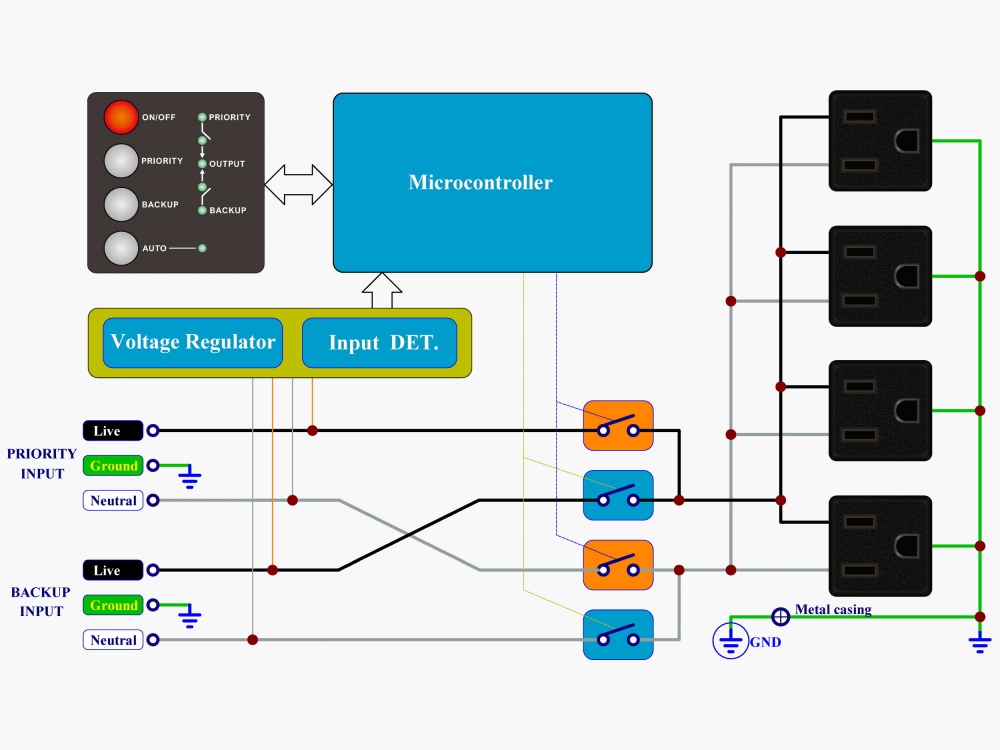

7, The live wire and neutral wire of each input source are controlled by different high-power SPST relays, ensuring that there will be no power arcing and no creepage between different input sources. The design is specially optimized to not cause your GFCI protector to trip for no reason.

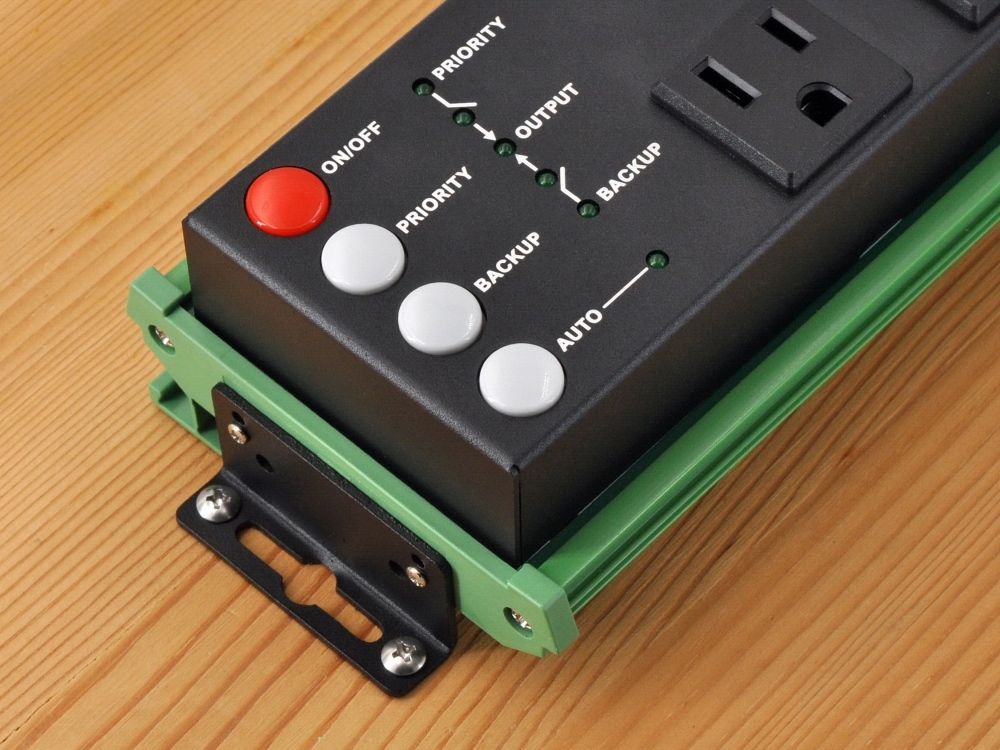

8, Made from high-quality fireproof nylon, the DIN rail mount carrier supports 35mm, 32mm, or 15mm rail widths. Includes a pair of DIN rail-to-wall mounting adapter brackets for wall or wood panel installation.
9, Priority and Backup input: Rated input current 30 Amp. Terminal blocks, Wire 20 - 6 AWG / 10 Square millimeters, Stripping length 10mm, Screw Metric M4.
10, 4 Channel NEMA-15R output receptacles, rated current 15 Amp for per output, all receptacle total rated current 30 Amp.
SPECIFICATIONS:
Input or Output Voltage: AC 90 - 135V 50 / 60Hz
Input or All Output Rated Current: 30 Amp
NEMA-15R Output Rated Current: 15 Amp / per channel, 30 Amp / All Channels
Transfer Time: less than 30 millisecond (typically about 15 milliseconds)
Terminal Blocks: Wire 20 - 6 AWG / 10 Square millimeters, Stripping length 10mm, Screw Metric M4
Case material: Base - fireproof nylon-PA66, Cover - Aluminum.g
Versions:

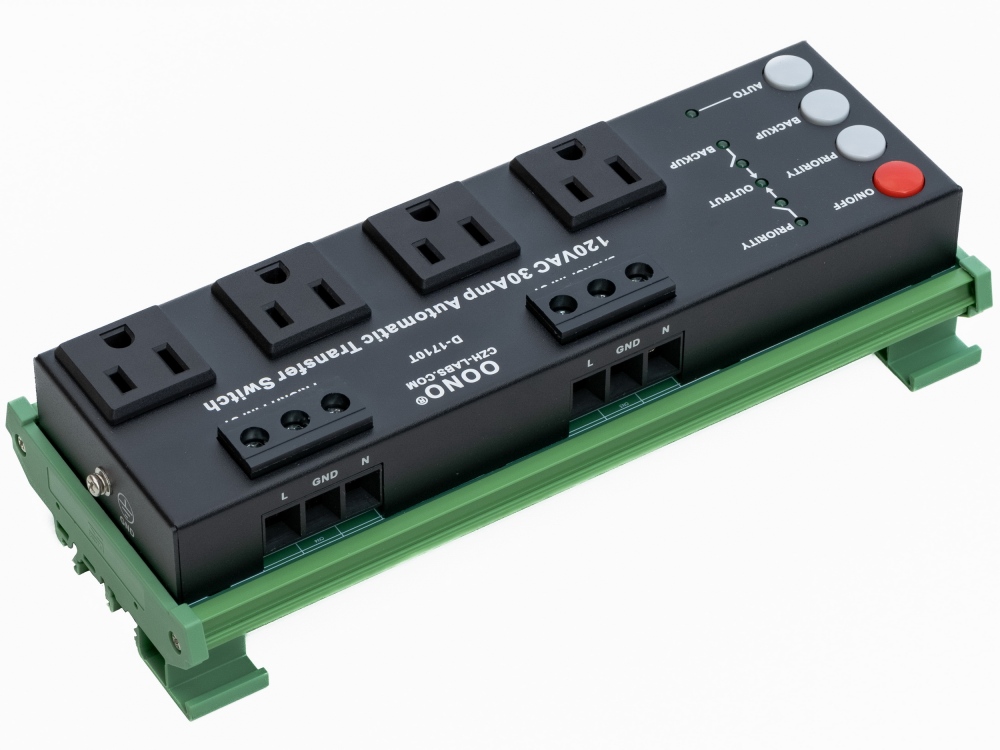

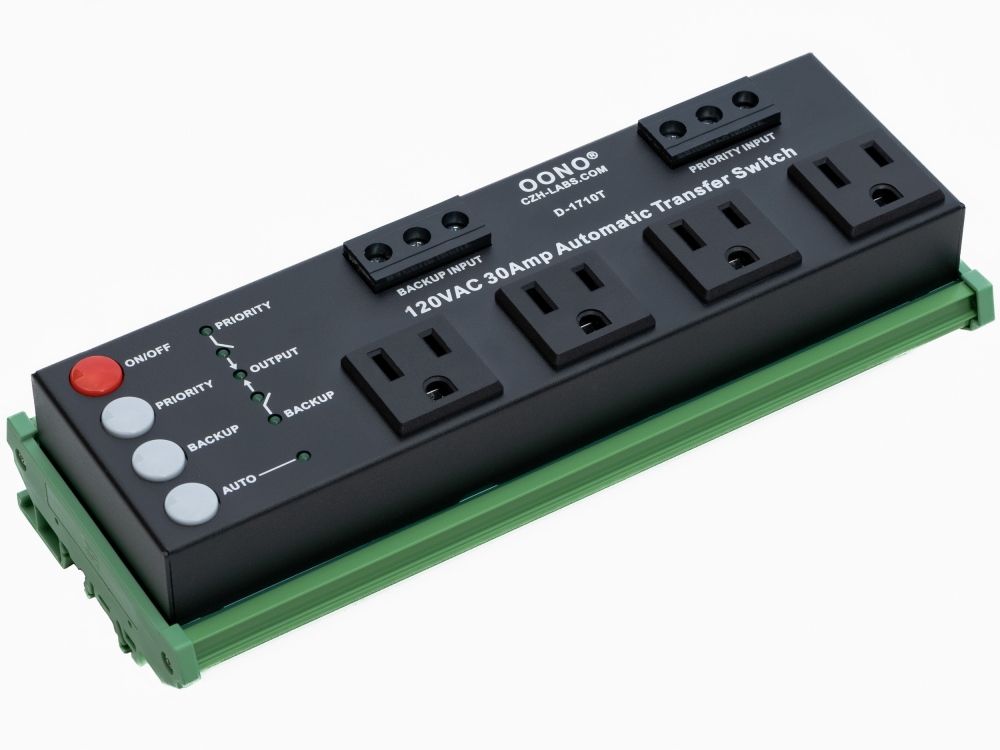

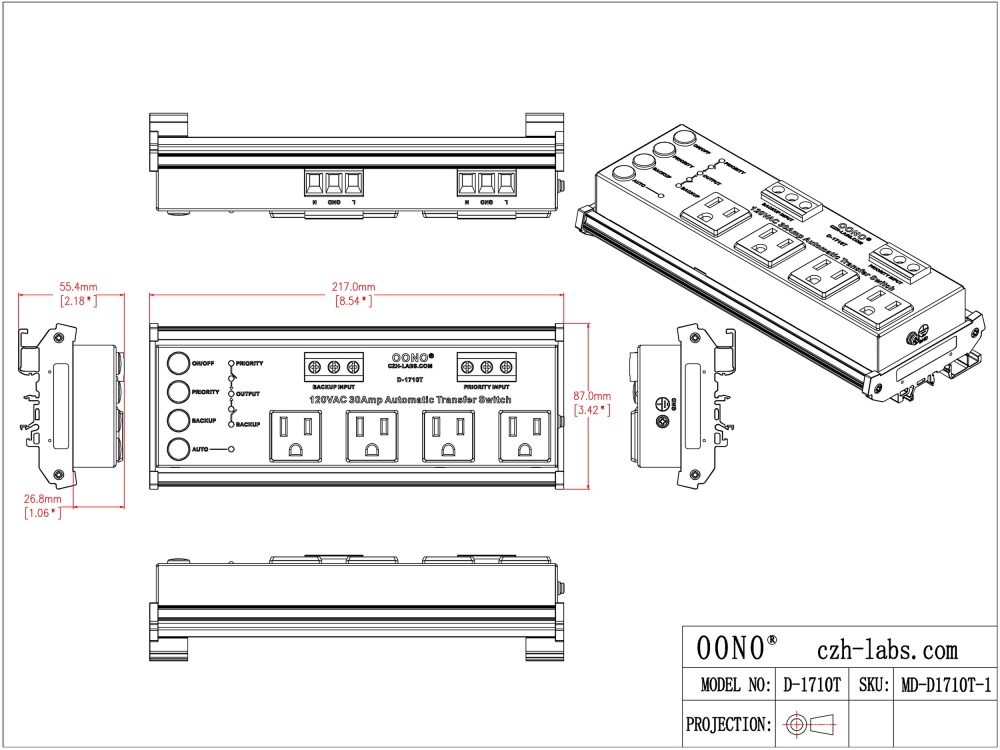

D-1710T, DIN rail mounting version.

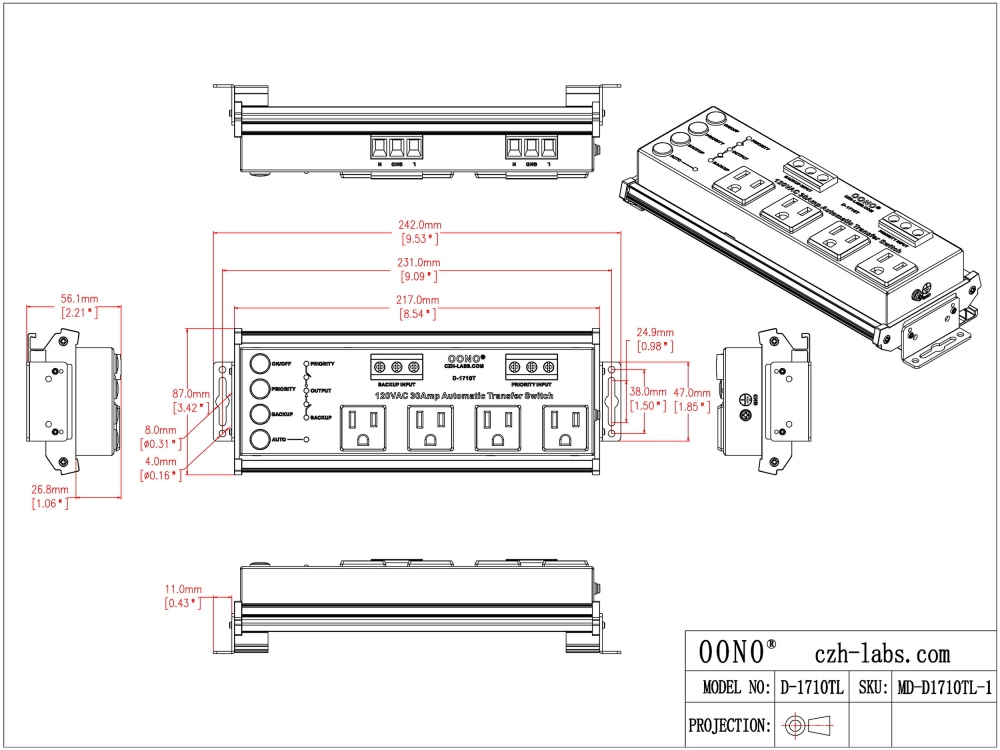

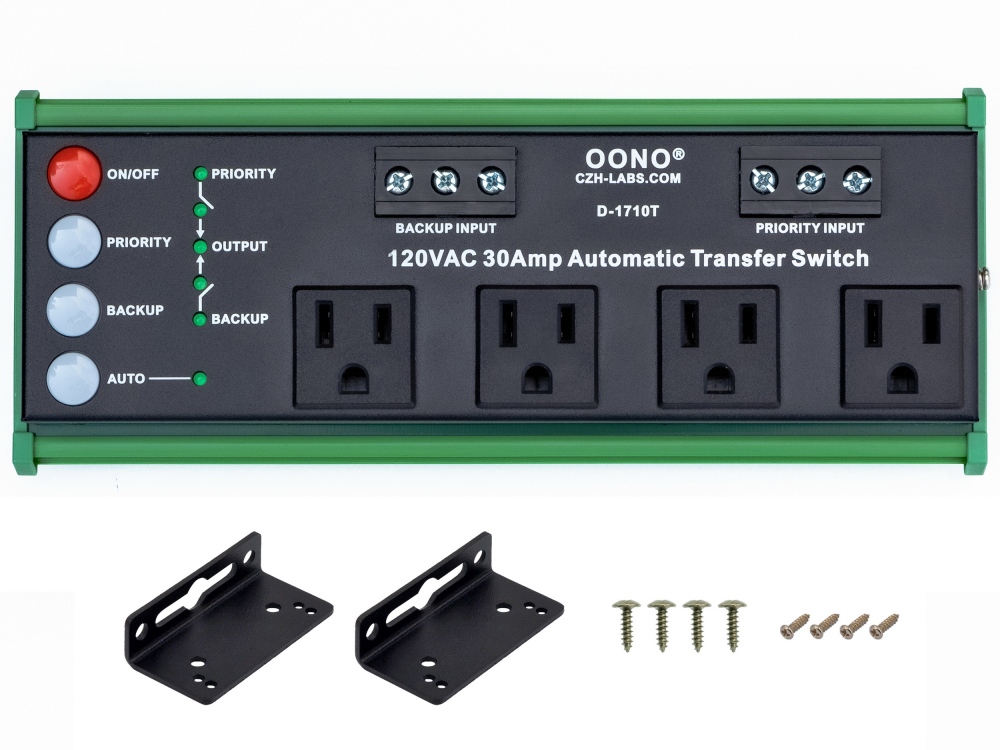

D-1710TL, Wall screw mounting version. (with DIN rail-to-wall mounting adapter brackets).
