  • Description
FEATURES:

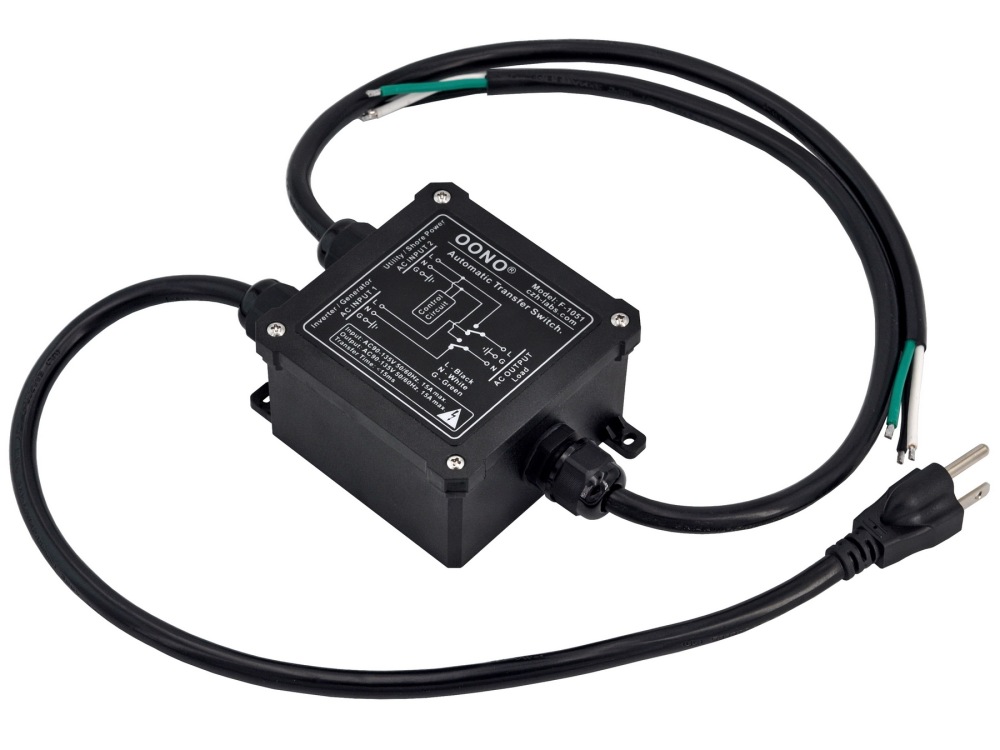

1, OONO F-1051 Automatic transfer switch, an easy to mount 15Amp inline transfer relay provides switching between AC INPUT 2 (Utility or Shore Power) and AC INPUT 1 (Inverter or Generator) AC source. When AC INPUT 2 is powered, the load power will be switched to AC INPUT 2. When AC INPUT 2 is powered off, the load power will be switched to AC INPUT 1.
2, Operating voltage AC 90 to 135V 50/60Hz. Maximum current 15 Amp.
3, Transfer time less than 15mS (0.015 second). For most smart devices or computers, the switching action of 15mS time will not affect their normal operation.

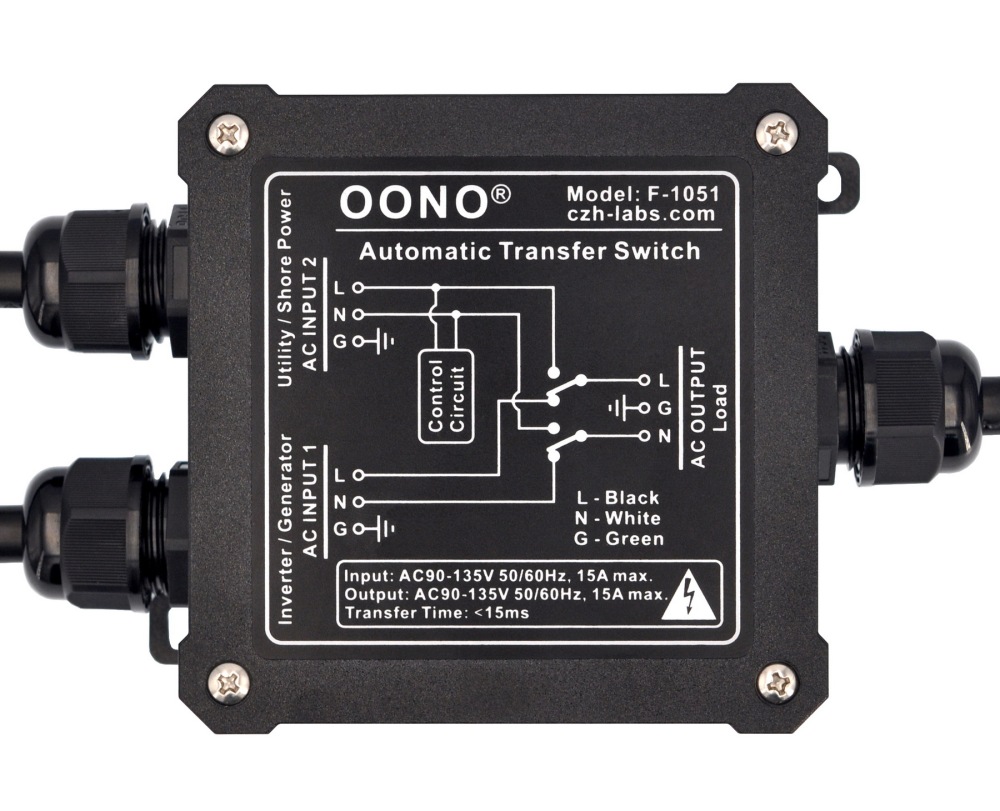

4, Safe DPDT circuit switch design (Double Pole Double Throw). Live and Neutral wire are switched at the same time. The Ground wires of the two inputs and output are connected together internally and will not follow the switch on and off.

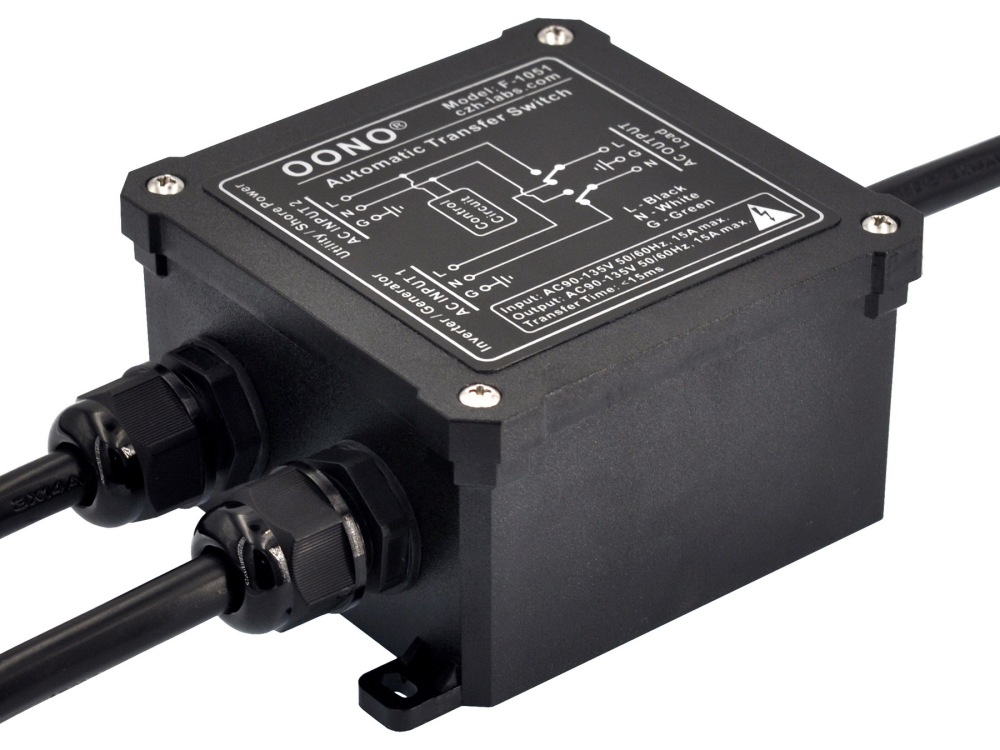

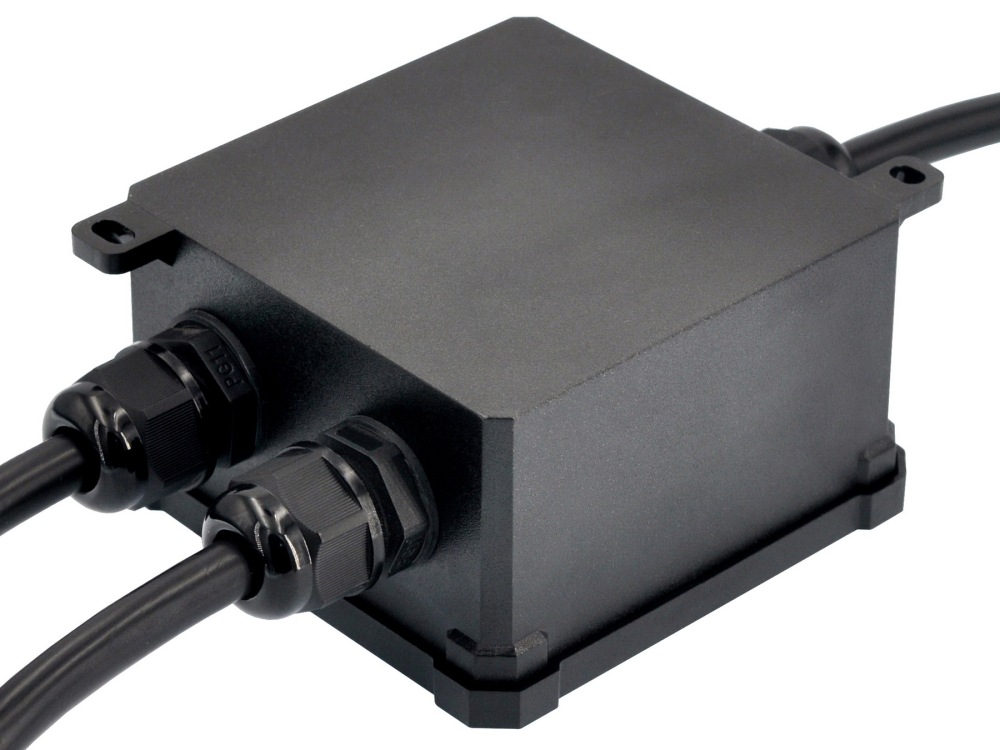

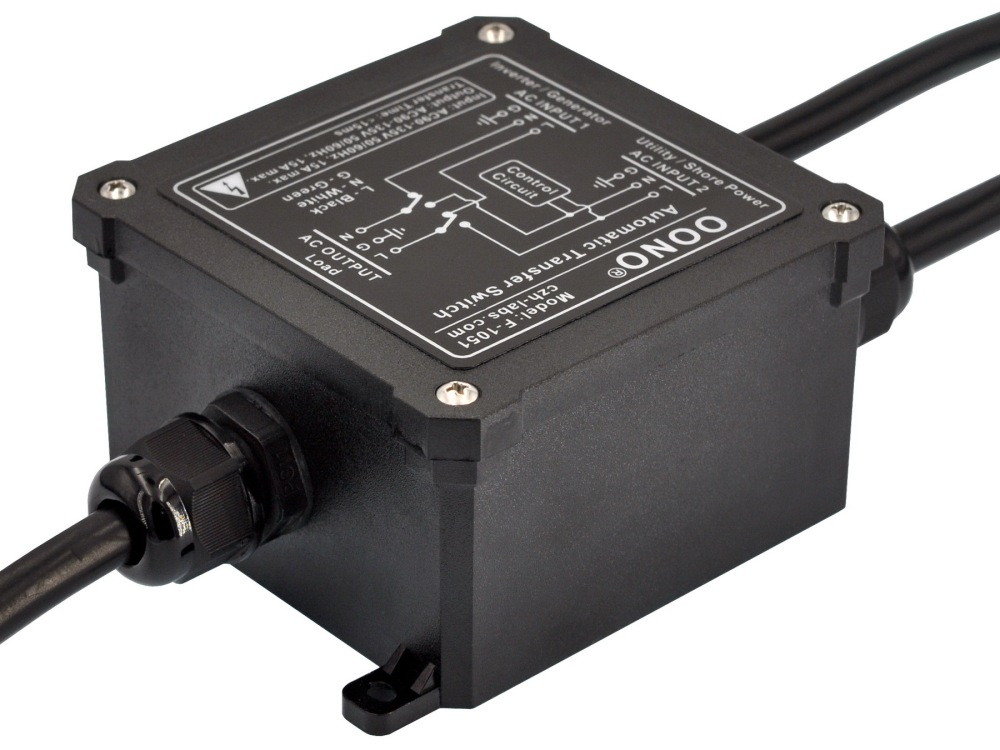

5, IP68 Waterproof high level enclosure, suitable for indoor or outdoor use. Flame retardant rating V1. Case material: PC (Polycarbonate). Seal material: Silicone rubber. External screw: 304 stainless steel.
6, AC INPUT 1 cable: Length 19 inch (0.5 meter), US standard NEMA 5-15P 3 prong plug. AC INPUT 2 and AC OUTPUT cables: Length 19 inch (0.5 meter), 14AWG (2.08 square millimeter) x 3 cores.

SPECIFICATIONS:
Input or Output Voltage: ………………………… AC 90 - 135V 50/60Hz.
Maximum Current: ……………………………….. 15 Amp.
Transfer Time: …………………………………..... 15 millisecond.
Input / Output Cable Length: …………………… 19 inch (0.5 meter).
Enclosure Waterproof Rating: …………………. IP68.
