4 SPDT 10Amp Power Relay Module for Raspberry Pi Arduino IoT, DC12V Version

SKU: F-1002/12V
$12.99 $12.99
4 SPDT 10Amp Power Relay Module for Raspberry Pi Arduino IoT, DC12V Version
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $12.99 = $12.99
save $0.00
Add to Favorites
  • 4 SPDT 10Amp Power Relay Module for Raspberry Pi Arduino IoT, DC12V Version
  • 4 SPDT 10Amp Power Relay Module for Raspberry Pi Arduino IoT, DC12V Version
  • 4 SPDT 10Amp Power Relay Module for Raspberry Pi Arduino IoT, DC12V Version
  • 4 SPDT 10Amp Power Relay Module for Raspberry Pi Arduino IoT, DC12V Version
  • 4 SPDT 10Amp Power Relay Module for Raspberry Pi Arduino IoT, DC12V Version
  • 4 SPDT 10Amp Power Relay Module for Raspberry Pi Arduino IoT, DC12V Version
  • 4 SPDT 10Amp Power Relay Module for Raspberry Pi Arduino IoT, DC12V Version
  • 4 SPDT 10Amp Power Relay Module for Raspberry Pi Arduino IoT, DC12V Version
  • 4 SPDT 10Amp Power Relay Module for Raspberry Pi Arduino IoT, DC12V Version
  • 4 SPDT 10Amp Power Relay Module for Raspberry Pi Arduino IoT, DC12V Version
  • 4 SPDT 10Amp Power Relay Module for Raspberry Pi Arduino IoT, DC12V Version
  • 4 SPDT 10Amp Power Relay Module for Raspberry Pi Arduino IoT, DC12V Version
1/1
  • 4 SPDT 10Amp Power Relay Module for Raspberry Pi Arduino IoT, DC12V Version
  • 4 SPDT 10Amp Power Relay Module for Raspberry Pi Arduino IoT, DC12V Version
  • 4 SPDT 10Amp Power Relay Module for Raspberry Pi Arduino IoT, DC12V Version
  • 4 SPDT 10Amp Power Relay Module for Raspberry Pi Arduino IoT, DC12V Version
  • 4 SPDT 10Amp Power Relay Module for Raspberry Pi Arduino IoT, DC12V Version
  • 4 SPDT 10Amp Power Relay Module for Raspberry Pi Arduino IoT, DC12V Version
  • Description

1, 4 Channel SPDT(Single Pole Double Throw) 10Amp power relays. It can be easily connect with Raspberry Pi or Arduino, or other IoT projects, or home automation control application.

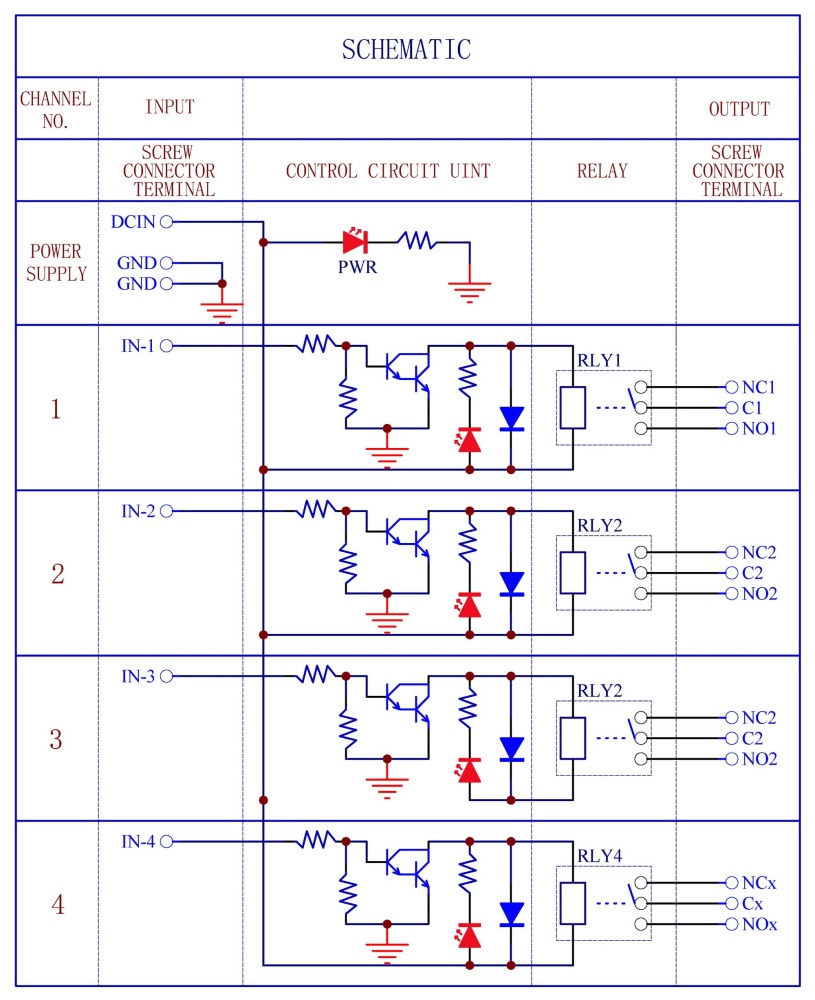

2, Darlington transistor circuits drive relay coil. LED indicators for power supply and each relay action.
3, ABS plastic enclosure, you can use screw mount to wood board or wall, of course, can also be placed on the desktop.
4, High quality screw terminal block. Pitch 5.0mm/0.197". Wire range 26AWG ~ 12AWG / 2.5mm square.
5, Operating voltage / current: DC 12V / 130mA.

Download
