24V 50Amp Forward and Reverse Relay Module for Motor / Linear Actuator, Reversing Relay Module

SKU: F-1021/24V
$40.00 $40.00
24V 50Amp Forward and Reverse Relay Module for Motor / Linear Actuator, Reversing Relay Module
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-max
    Please select the information you wantX
Quantity:
1 * $40 = $40
save $0.00
Add to Favorites
  • 24V 50Amp Forward and Reverse Relay Module for Motor / Linear Actuator, Reversing Relay Module
  • 24V 50Amp Forward and Reverse Relay Module for Motor / Linear Actuator, Reversing Relay Module
  • 24V 50Amp Forward and Reverse Relay Module for Motor / Linear Actuator, Reversing Relay Module
  • 24V 50Amp Forward and Reverse Relay Module for Motor / Linear Actuator, Reversing Relay Module
  • 24V 50Amp Forward and Reverse Relay Module for Motor / Linear Actuator, Reversing Relay Module
  • 24V 50Amp Forward and Reverse Relay Module for Motor / Linear Actuator, Reversing Relay Module
  • 24V 50Amp Forward and Reverse Relay Module for Motor / Linear Actuator, Reversing Relay Module
  • 24V 50Amp Forward and Reverse Relay Module for Motor / Linear Actuator, Reversing Relay Module
  • 24V 50Amp Forward and Reverse Relay Module for Motor / Linear Actuator, Reversing Relay Module
  • 24V 50Amp Forward and Reverse Relay Module for Motor / Linear Actuator, Reversing Relay Module
  • 24V 50Amp Forward and Reverse Relay Module for Motor / Linear Actuator, Reversing Relay Module
  • 24V 50Amp Forward and Reverse Relay Module for Motor / Linear Actuator, Reversing Relay Module
  • 24V 50Amp Forward and Reverse Relay Module for Motor / Linear Actuator, Reversing Relay Module
  • 24V 50Amp Forward and Reverse Relay Module for Motor / Linear Actuator, Reversing Relay Module
1/1
  • 24V 50Amp Forward and Reverse Relay Module for Motor / Linear Actuator, Reversing Relay Module
  • 24V 50Amp Forward and Reverse Relay Module for Motor / Linear Actuator, Reversing Relay Module
  • 24V 50Amp Forward and Reverse Relay Module for Motor / Linear Actuator, Reversing Relay Module
  • 24V 50Amp Forward and Reverse Relay Module for Motor / Linear Actuator, Reversing Relay Module
  • 24V 50Amp Forward and Reverse Relay Module for Motor / Linear Actuator, Reversing Relay Module
  • 24V 50Amp Forward and Reverse Relay Module for Motor / Linear Actuator, Reversing Relay Module
  • 24V 50Amp Forward and Reverse Relay Module for Motor / Linear Actuator, Reversing Relay Module
  • Description

1, Reversing relay module. Powers any reversing motor equipment, can be used for any application that requires the ability to reverse motion.

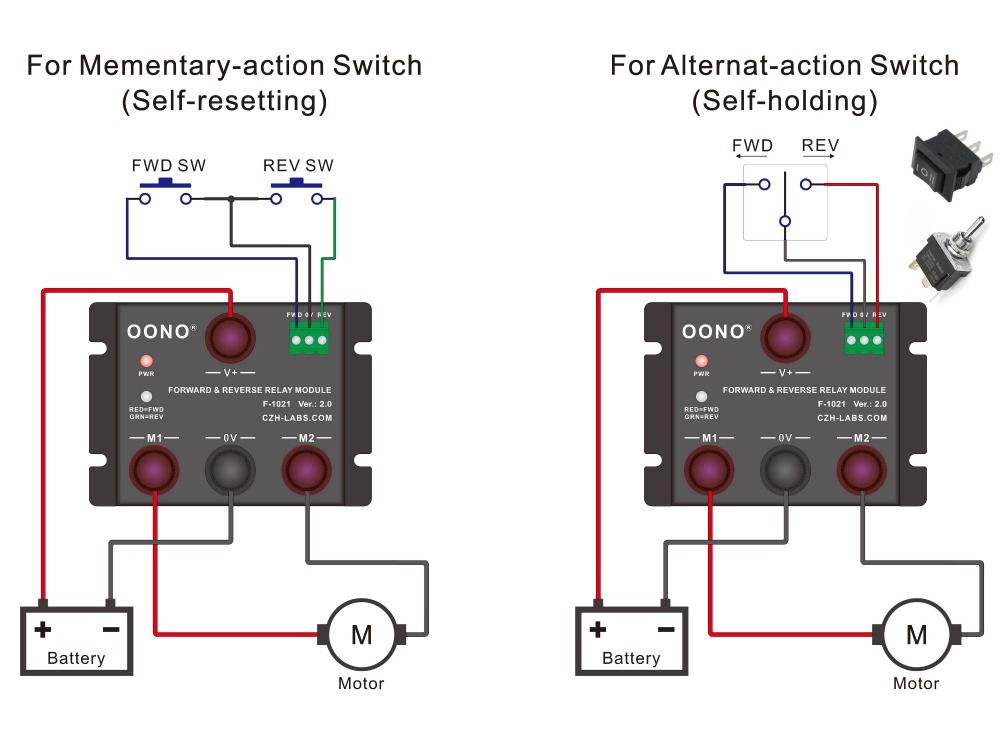

2, Support Momentary-action(Self-resetting) switch and Alternate-action (Self-holding) switch. For Self-resetting switch, when the switch is pressed the motor operates, and when the switch is released the motor stops.

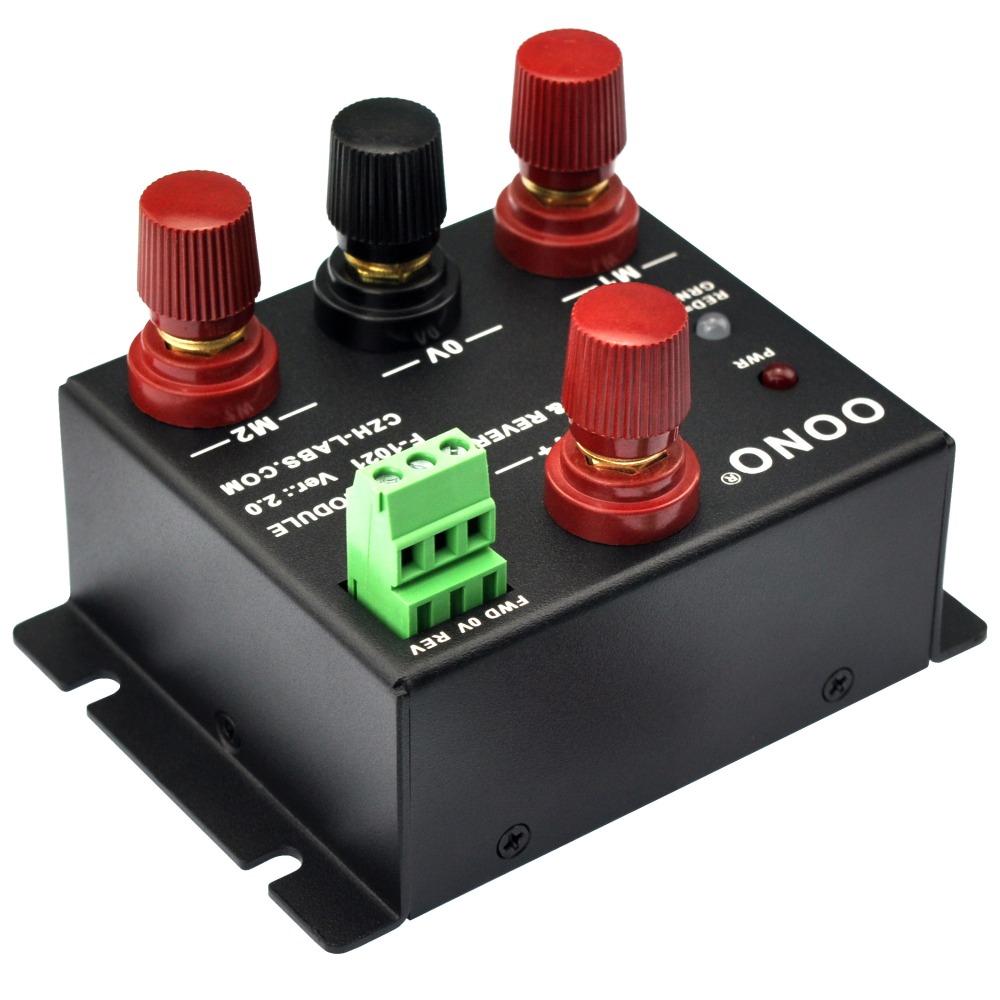

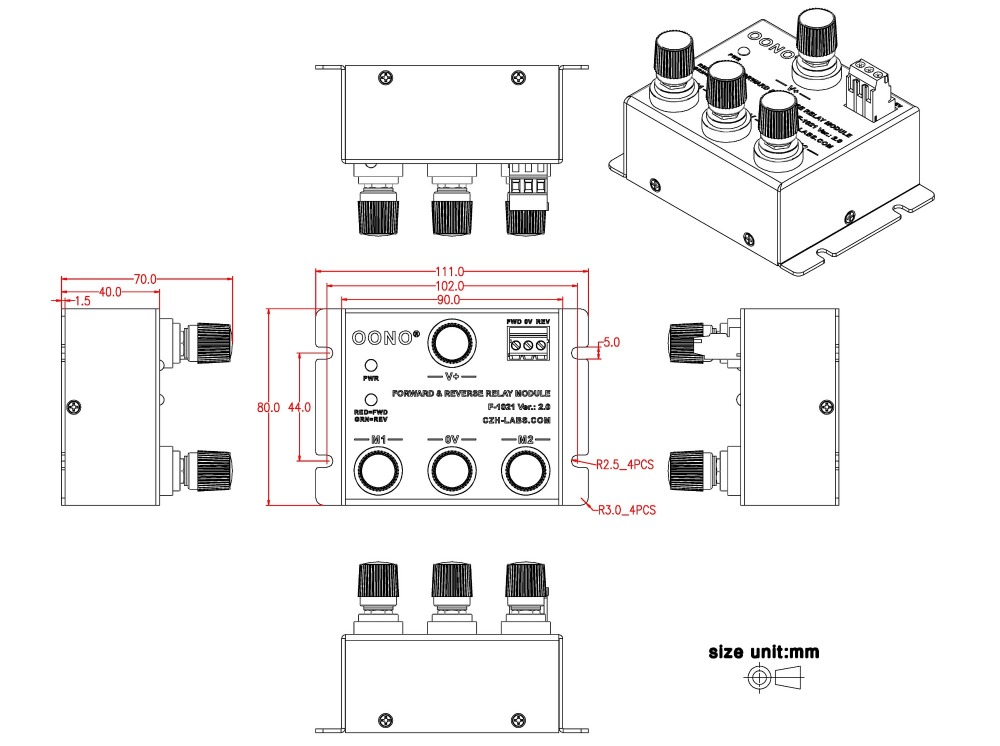

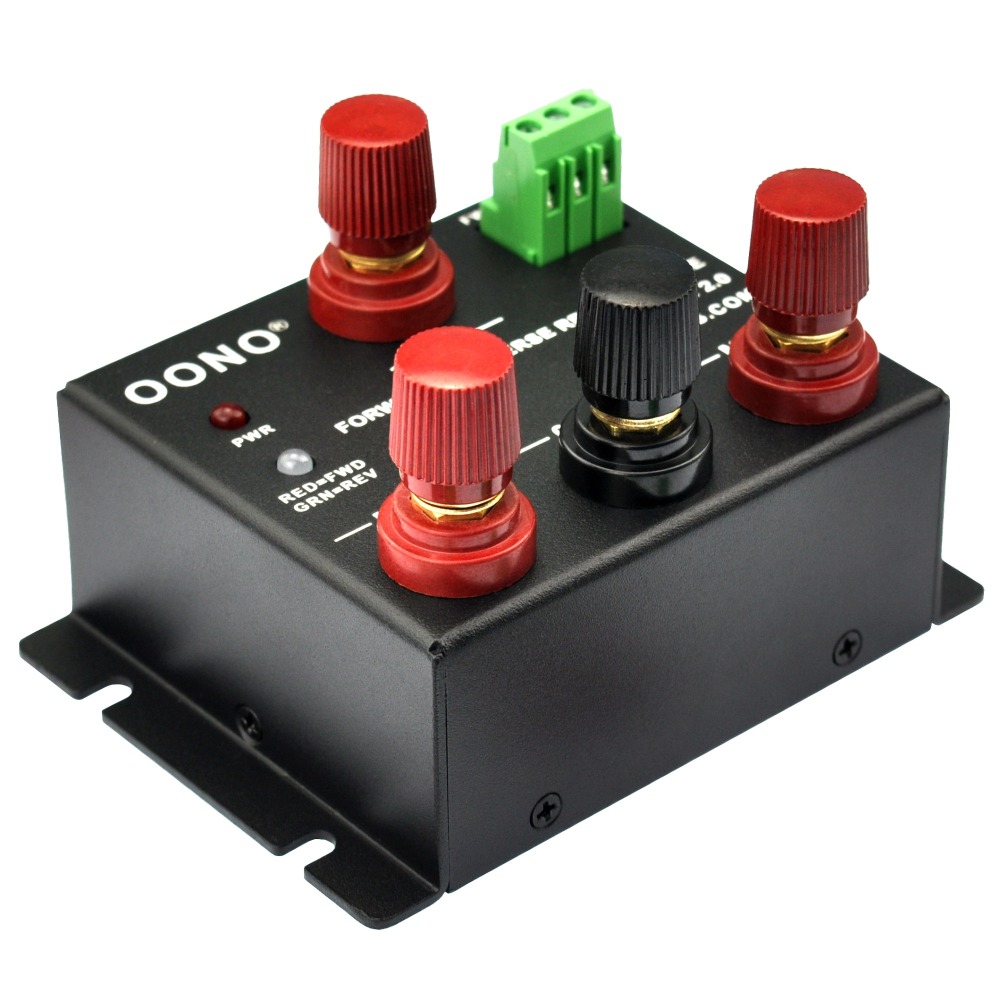

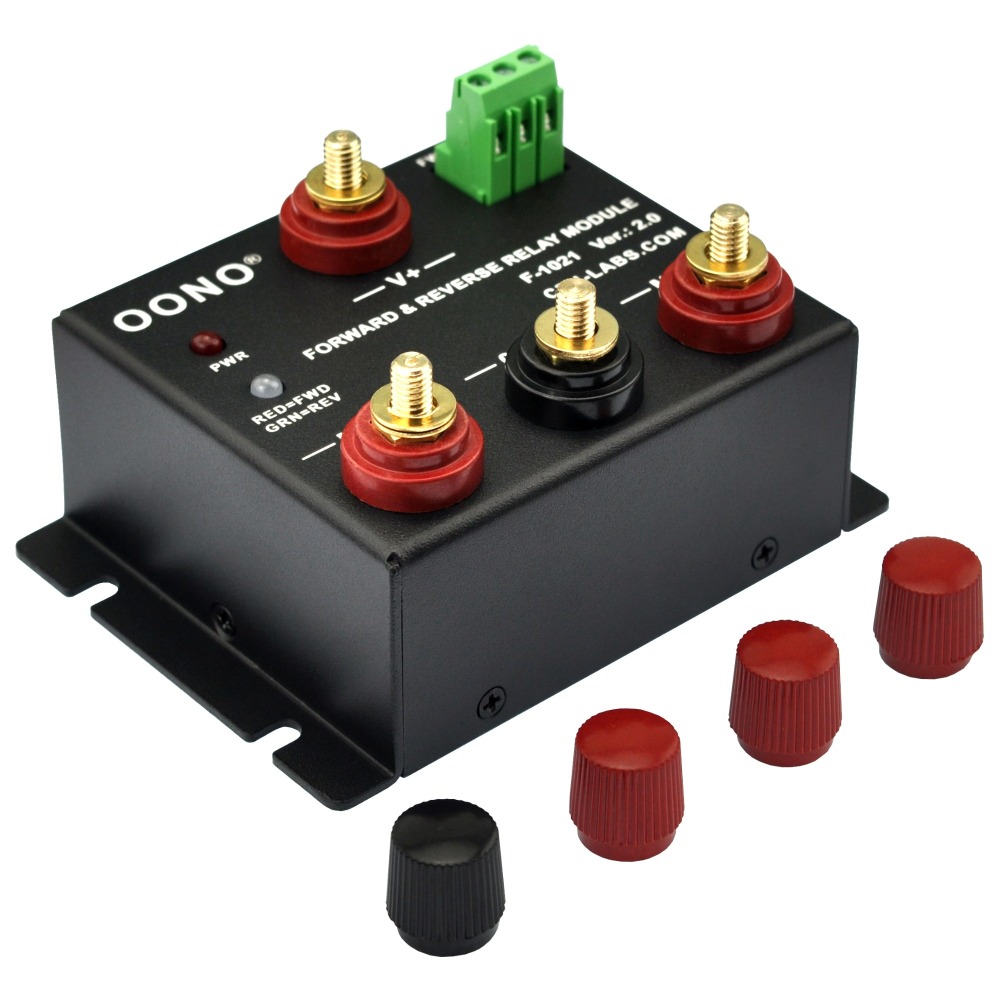

3, High quality aluminum enclosure, thickness 1.5mm/0.06". Diameter M6 / 6mm threaded copper terminals for power supply and load. Connect switch terminal block: pitch 5.0mm/0.197", wire size 26~12 AWG / 2.5mm square, stripping length 7mm/0.28", Metric M2.5 slotted screw.

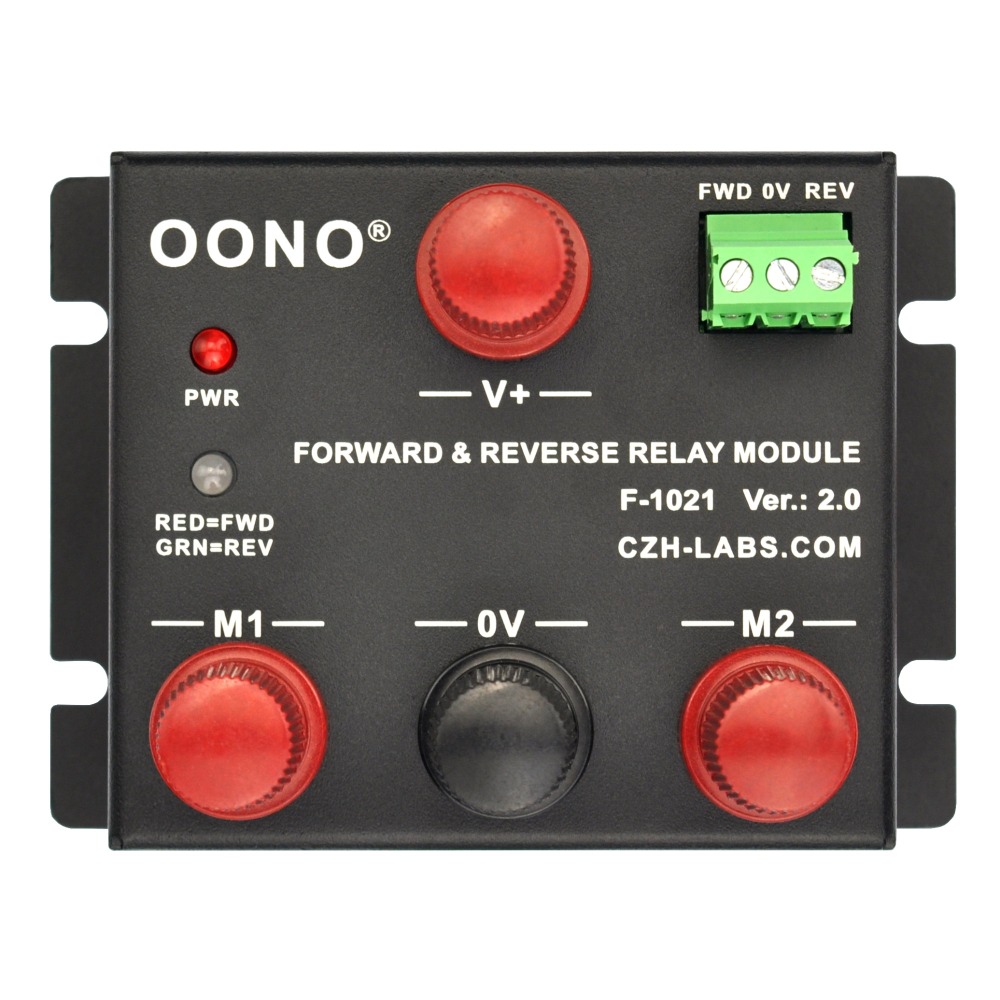

4, Power on indicating red LED. Forward and Reverse status indicating LED, forward status lighting red, reverse lighting green.
5, Operating Voltage: 20 ~ 30V DC, Rated current 50 Amp.

July-7-2021, from version 1.0 change to 2.0:
Changed the output action status. Exchanged the positive and negative positions of the power supply. Please download and read the datasheet for specific details
